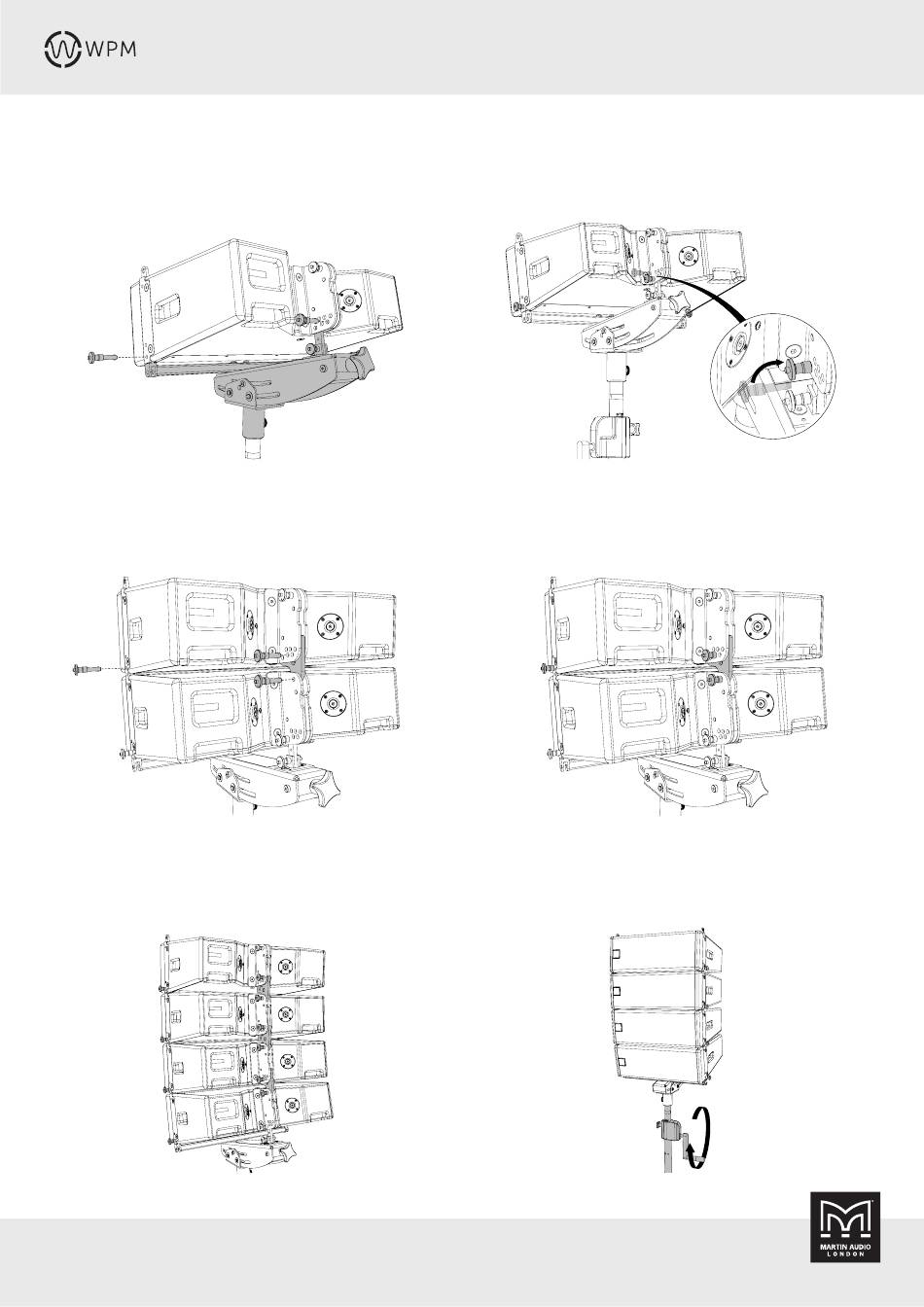

Remove the rigging pins and place the first cabinet onto the
universal bracket.
Remove the rigging pins from the next cabinet and place on top of
the first WPM.
Repeat the process until the desired amount of WPM have been
used. A Maximum of 4 cabinets can be deployed.
WPM USER GUIDE V2
Copyright © 2023 Martin Audio Ltd.
Replace the pins at the front to secure and place the rear pin into
the ground- stack hole position.
Replace the rigging pins to secure the cabinet. Make sure the
correct angle is selected and the lock pin is replaced.
Raise the adjustable pole until the optimum height is reached.
