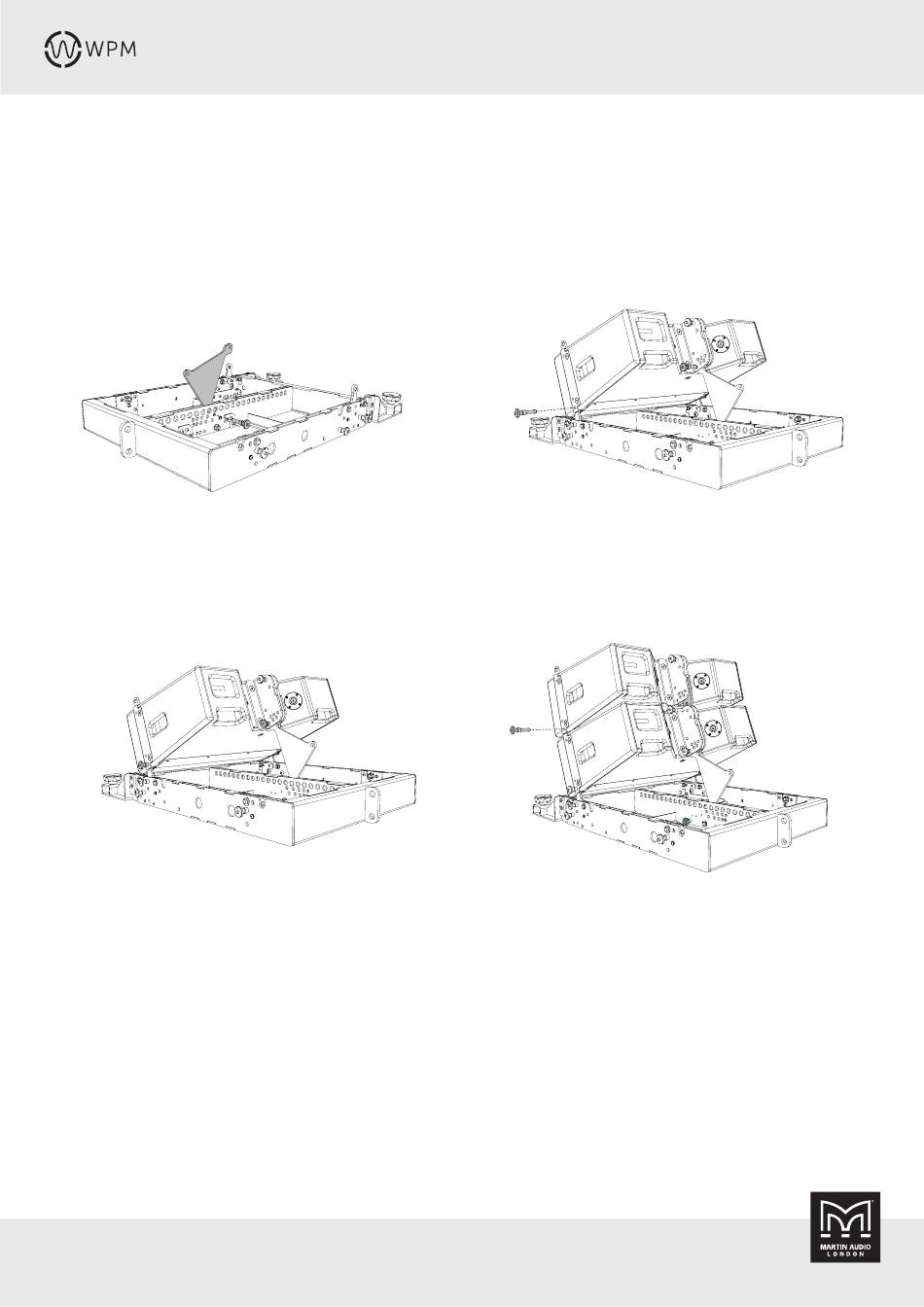

Fit the WPMGSBAR into the appropriate hole into the central spine.

The orientation of the bar and the correct hole in the frame will be

determined by the angle of the first WPM cabinet in the array. This

is calculated by the prediction in display.

Insert the rigging pins front and back to secure the WPM to the

WPMSXGRIDT.

WPM USER GUIDE V2

Remove the link pins and lower the WPM onto the WPMSXGRIDT

until the links locate into the front rigging assembly.

Remove the pins front and back to place the next cabinet onto the

ground stack array.
