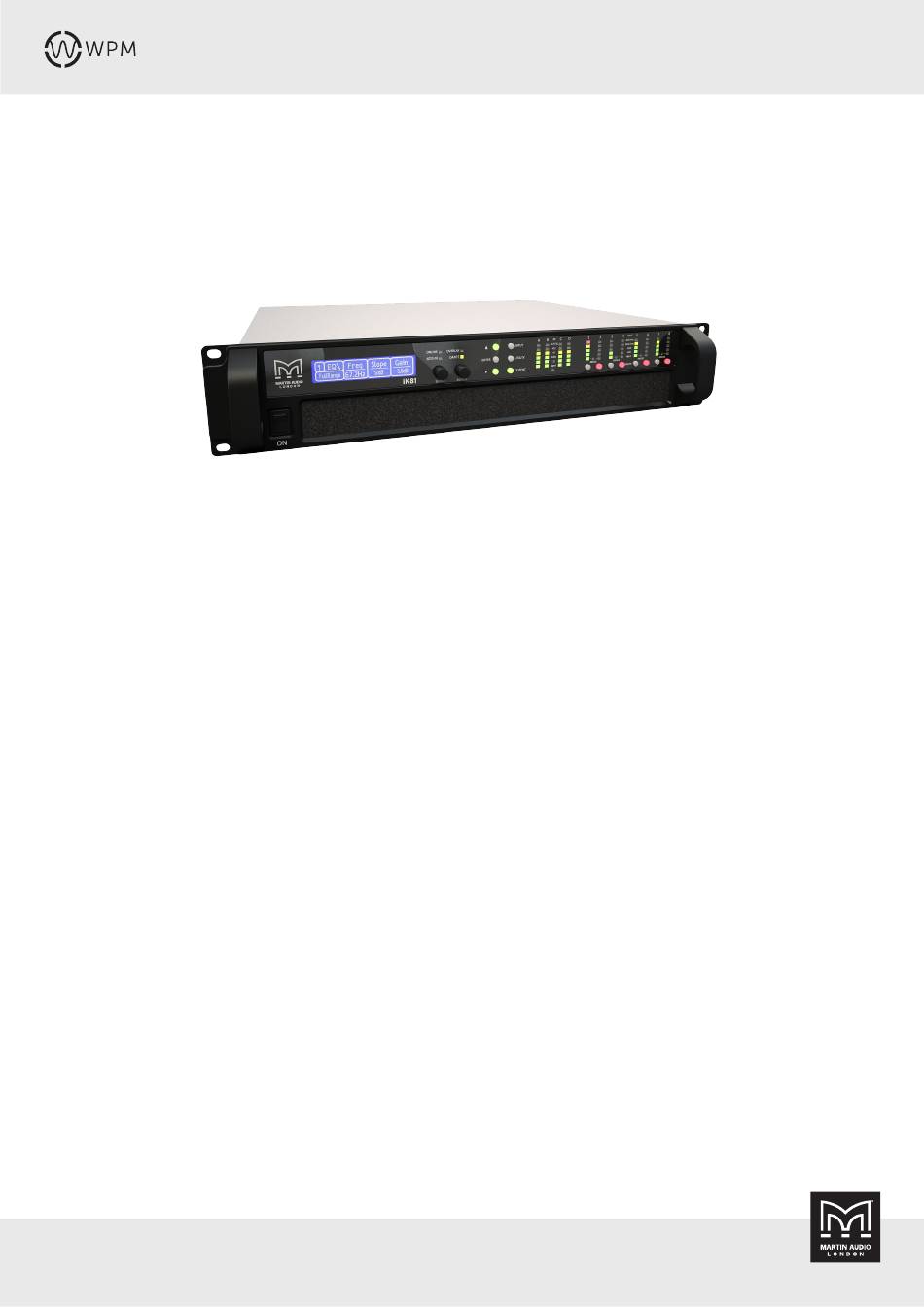

iK42 Amplifier
The iKON iK42 is an advanced 4-channel controller amplifier which
combines very high-power density with superb audio performance,
state-of-the-art DSP and network control for WPM systems.
The iK42 can deliver a full 5000 watts per channel into 2 ohms
with all channels driven while remaining highly efficient. Its high
efficiency reduces the energy drawn from the mains supply and
ensures the power reserves needed to deliver superb sound under
arduous live conditions.
Ethernet is used for system remote control and monitoring via
Martin Audio's VU-NET software application, while a user-friendly
front panel interface allows full local control of all features. Dante
digital audio network inputs are also provided for digital audio
distribution and control.
WPM USER GUIDE V2
Copyright © 2023 Martin Audio Ltd.
Powerful DSP is fully integrated into the iK42 to provide a
multitude of features that ensure maximum performance and
worldwide compatibility. It also provides up to 1000 FIR filter taps
@ 48kHz on each output channel, which is essential to implement
DISPLAY's wide bandwidth optimisation process in WPM line array
systems.
The iK42 employs comprehensive protection functions to maintain
safe operating conditions of both the amplifier and the loudspeakers
driven — including a sophisticated loudspeaker limiter suite which
incorporates peak, RMS and excursion limiting, as well as multi-
band limiting for passive 2-way systems.
