Cover

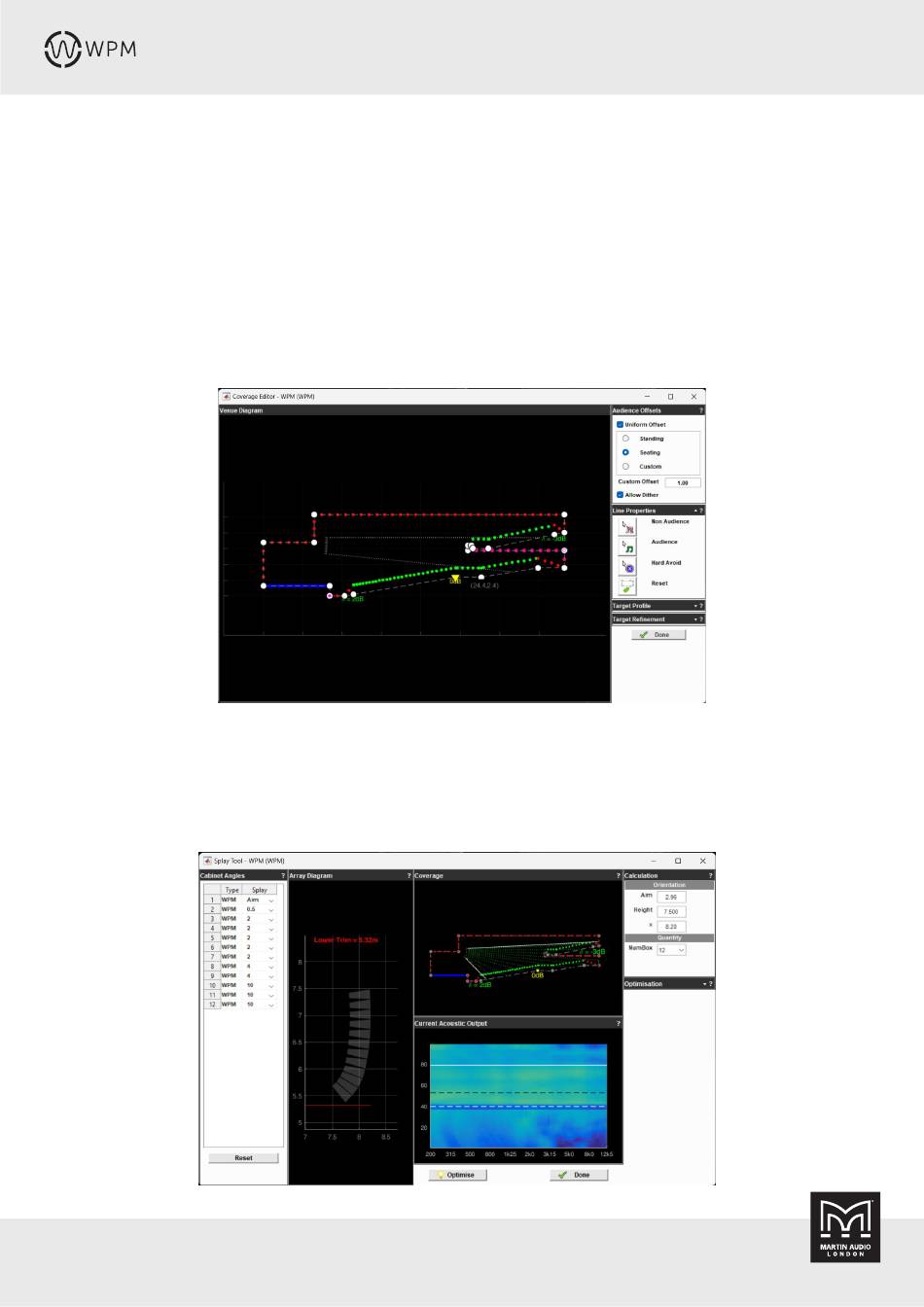

The cover tab shows your 2D model with the surfaces split into
three types.
Audience in green.
Non-audience in red.
Hard avoid in blue.
Each dot represents a virtual microphone position at which the
software will take response measurements.

Splay

The splay tab optimises the array mechanically based on the room
geometry and coverage area defined.
WPM USER GUIDE V2
Copyright © 2023 Martin Audio Ltd.
The dots in the critical audience region are closer together for
greater accuracy and are spaced closer together at the start of the
audience region to mirror how each region is covered by sections
of the array.
The audience offset can be edited; standing, sitting or a custom
offset of your choice and each region can be edited, perhaps
changing a section under a balcony from audience to non-audience
for example.
Further adjustments to the array size and position can be made
here before optimising if required.
