USER GUIDE
NI CB-2162
Single-Ended Digital I/O Accessory
Contents

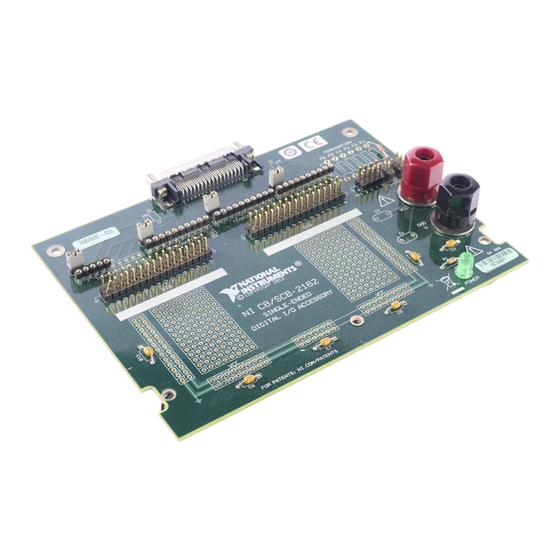

The NI CB-2162 is a connector block and prototyping board for National
Instruments digital waveform generator/analyzer modules. The
NI CB-2162 provides an easy way to:
•
Terminate digital I/O (DIO) and control channels
•
Connect to other devices for testing and debugging
•
Develop and interface to prototype circuits
•
Probe DIO and control channels
This guide explains how to set up and use the NI CB-2162 single-ended
DIO accessory.
What You Need to Get Started ............................................................... 2
Related Documentation........................................................................... 3
Parts Locator Diagram ............................................................................ 4
Installing Cables...................................................................................... 5
Connecting Signals ................................................................................. 6
Using 1x2 Header Receptacles ........................................................ 9
Using a Ribbon Cable ...................................................................... 10
Making a Wire-Wrap Connection.................................................... 11
Terminating Signals ................................................................................ 12
Minimizing the Effects of Stubs ...................................................... 12
Terminating DIO Channel Signals .................................................. 12
Terminating Control Channel Signals ............................................. 14
Using the NI CB-2162 Prototyping Area................................................ 15
Connecting Power............................................................................ 16
Prototyping Circuits ......................................................................... 16
Replacing Components .................................................................... 16
Specifications .......................................................................................... 17
Digital I/O ........................................................................................ 17
Resistors........................................................................................... 17
Advertisement
Table of Contents
Related Manuals for National Instruments CB-2162
Summary of Contents for National Instruments CB-2162
-
Page 1: Table Of Contents
• Develop and interface to prototype circuits • Probe DIO and control channels This guide explains how to set up and use the NI CB-2162 single-ended DIO accessory. Contents What You Need to Get Started ............... 2 Related Documentation................3 Parts Locator Diagram ................ -
Page 2: What You Need To Get Started
❑ Resistors and 10-pin single-inline packaged resistor networks for pull-up/pull-down and series termination. ❑ The NI CB-2162 ships populated with a 0 Ω resistor. A 50 Ω resistor also is included for optional STROBE series termination. ❑ 30-gauge wire ❑... -
Page 3: Related Documentation
Related Documentation National Instruments digital waveform generator/analyzer modules ship with several documents designed to familiarize you with different aspects of the module. The documentation set includes the following pieces: • NI Digital Waveform Generator/Analyzer Getting Started Guide—This printed document should be the first thing you read. -
Page 4: Parts Locator Diagram
Parts Locator Diagram Refer to Figure 1 to locate connectors and components on the NI CB-2162. 1 68-Pin Digital Data & Control (DDC) Connector 6 Prototyping Area Power and Ground Solder Pads 2 Termination Sockets 7 Prototyping Area 3 Control and Ground Header Pairs... -
Page 5: Installing Cables
Installing Cables The NI SHC68-C68-D2 cable is designed to connect the NI CB-2162 to the digital waveform generator/analyzer. Figure 2 shows how to install this cable. NI PXI-1042 NI PXI-6551 50 MHz Digital I/O ACCESS ACTIVE PFI 0 1 PXI Chassis with NI Digital Waveform... -
Page 6: Connecting Signals
Refer to Figure 1 for the location of these pins on the NI CB-2162. Caution Before powering down the digital waveform generator/analyzer module, remove power from the prototyping area of the NI CB-2162. NI is not liable for any damage resulting from improper signal connections. NI CB-2162 User Guide... - Page 7 Figure 3 shows the DDC connector pinout of the NI CB-2162. DIO31 DIO30 DIO29 DIO28 DIO27 DIO26 DIO25 DIO24 RESERVED DIO23 DIO22 DIO21 DIO20 DIO19 DIO18 DIO17 DIO16 DIO15 DIO14 RESERVED DIO13 DIO12 DIO11 DIO10 DIO9 DIO8 DIO7 DIO6 PFI 1...
- Page 8 Examples of how to make these connections are provided in the following sections. Connections that exceed any of the maximum ratings for the NI CB-2162 or the Caution NI digital waveform generator/analyzer module can damage the module and the computer.
-
Page 9: Using 1X2 Header Receptacles
Using 1x2 Header Receptacles Each signal and ground header pair is labeled on the NI CB-2162 and in Figure 1. These header pairs are arranged so that you can make quick connections using a 1x2 header receptacle, such as the 3M Monosignal Socket Connector (3M part number TS0870), to a coaxial cable assembly. -
Page 10: Using A Ribbon Cable
Using a Ribbon Cable The header pairs on the NI CB-2162 are available for single wire probing. You also can use 32-pin ribbon cables to easily connect a large number of channels to other devices. Cable type and quality can dramatically affect how well the signal integrity is maintained. -
Page 11: Making A Wire-Wrap Connection
Connect the DIO channel and ground header pins for each channel being used. Figure 6 provides an illustration for making a wire-wrap connection. 1 Wire-Wrap Tool 3 Header Pin Receptacle 2 Stripped Wire Figure 6. Wire-Wrap Connections © National Instruments Corporation NI CB-2162 User Guide... -
Page 12: Terminating Signals
To minimize the effect of stubs, termination is placed at the end of the signal path. If your signal transmission line ends on the NI CB-2162, you can use the provided termination socket. If your signal terminates somewhere other than the NI CB-2162, NI recommends terminating the transmission line at the final signal destination. - Page 13 Figure 7 can be inserted into pin 10 of the socket shown in Figure 8. External power can then be applied to the connection point located below pin 10 of the socket to provide proper termination. © National Instruments Corporation NI CB-2162 User Guide...
-
Page 14: Terminating Control Channel Signals
Table 3 lists the termination sockets for control channel termination resistors. Table 3. Control Channel Termination Control Channel Termination Sockets Termination Type STROBE (W1) J1, J2 Series DDC CLK OUT (W2) J5, J6 Parallel (pull-down) NI CB-2162 User Guide ni.com... -
Page 15: Using The Ni Cb-2162 Prototyping Area
Using the NI CB-2162 Prototyping Area The NI CB-2162 prototyping area is designed to aid you in the following tasks: •... -
Page 16: Connecting Power
Replacing Components The NI CB-2162 does not use replaceable fuses. If you need to replace the LED, choose a replacement that meets the specifications described in the Specifications section. -
Page 17: Specifications
Minimum ........–5 V Physical Dimensions..........10 × 14 cm (3.94 × 5.51 in.) I/O connectors ........68-pin DDC connector, two banana-style connectors, 74 header pins, 4 termination sockets (8 DIO per socket) © National Instruments Corporation NI CB-2162 User Guide... - Page 18 Table 1 EMC/EMI ..........CE, C-Tick, and FCC Part 15 (Class A) Compliant Note For EMC compliance, install the NI CB-2162 in a shielded container (not included with the NI CB-2162), and operate the digital waveform generator/analyzer with shielded cabling. CE Compliance...
- Page 19 Technical Support Resources NI Web Support National Instruments Web support is your first stop for help in solving installation, configuration, and application problems and questions. Online problem-solving and diagnostic resources include frequently asked questions, knowledge bases, product-specific troubleshooting wizards, manuals, drivers, software updates, and more. Web support is available through the Technical Support section of ni.com...
- Page 20 *323369A-01* Product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents. 323369A-01 Aug03 ©...
