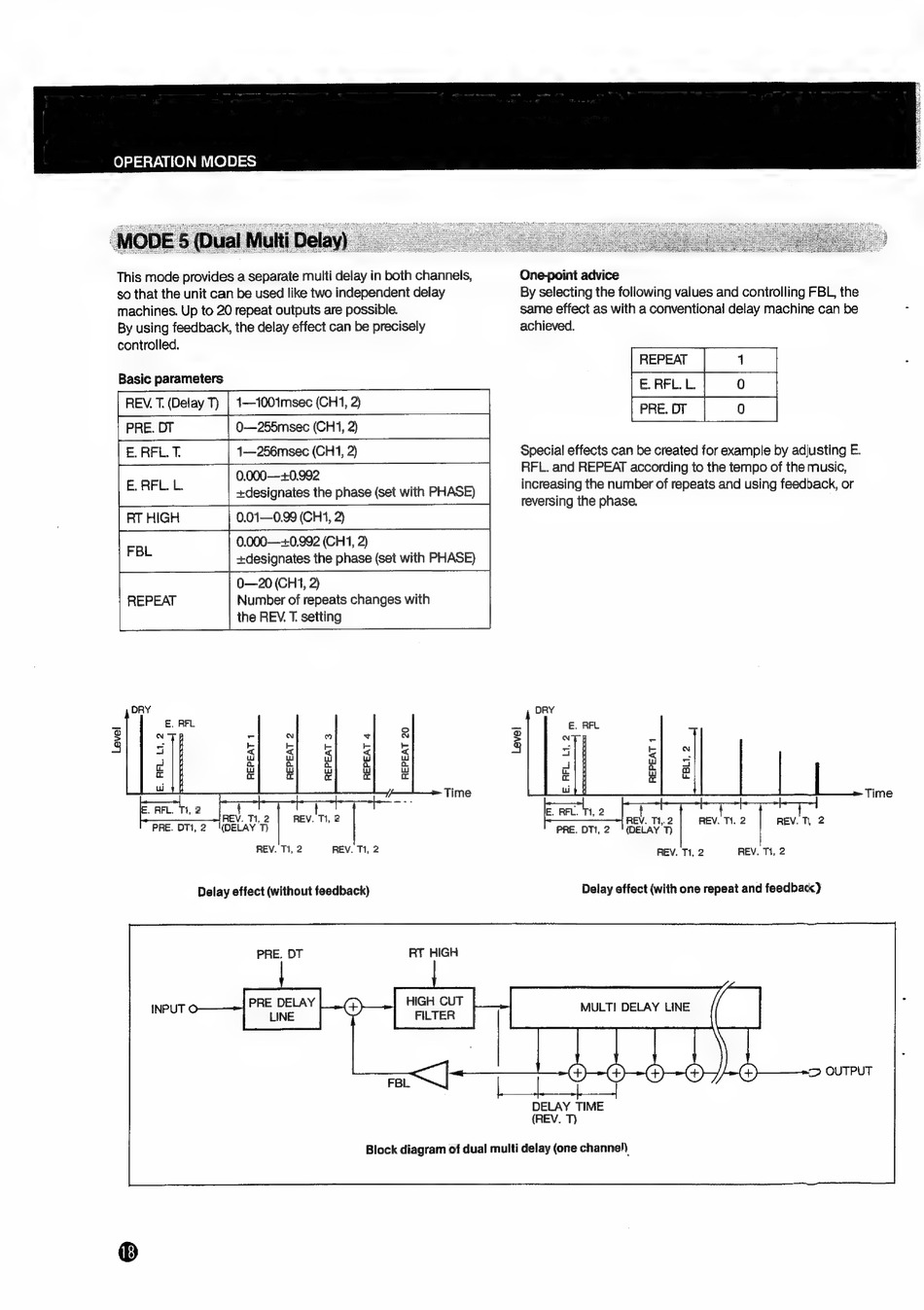

OPERATION MODES
This mode provides a separate multi delay in both channels,
so that the unit can be used like two independent delay
machines. Up to 20 repeat outputs are possible.
By using feedback, the delay effect can be precisely
controlled.
Basic parameters
REV. T. (Delay T) | 1—1001msec (CH1, 2)
PRE. DT
0—255msec (CH1, 2)
E. REL. T.
1—256msec (CH1, 2)
T 0.000—+0.992
+designates the phase (set with PHASE)
0.01—0.99 (CH1, 2)
0.000—+0,992 (CH1, 2)
+designates the phase (set with PHASE)
0—20 (CH1, 2)
Number of repeats changes with
the REV. T. setting
E.RFL. L.
RT HIGH
REPEAT
DRY
Level
REPEAT
1
REPEAT
2
REPEAT
3
REPEAT
4
REPEAT
20
Time
IE. AFL. Tt, 2
'
}
REV. Ti, 2
REV. Ti, 2
PRE. DTI, 2
(DELAY 7)
REV. Ti, 2
REV. T1, 2
Delay effect (without feedback)
PRE DELAY
LINE
One-point advice
By selecting the following values and controlling FBL, the
same effect as with a conventional delay machine can be
achieved.
Special effects can be created for example by adjusting E.
RFL. and REPEAT according to the tempo of the music,
increasing the number of repeats and using feedback, or
reversing the phase.
DRY
Level
REPEAT
1
t
{
REV. Ti,.2 | REV. TI. 2
REV. T, 2
PRE. DTI, 2 | (DELAY'T)
REV. Tt, 2
REV. Tt, 2
Delay effect (with one repeat and feedback)
MULTI DELAY LINE
OUTPUT
DELAY TIME
(REV. T)
Block diagram of dual multi delay (one channe/).
