KA01033P/00/EN/17.16
71316889
Products

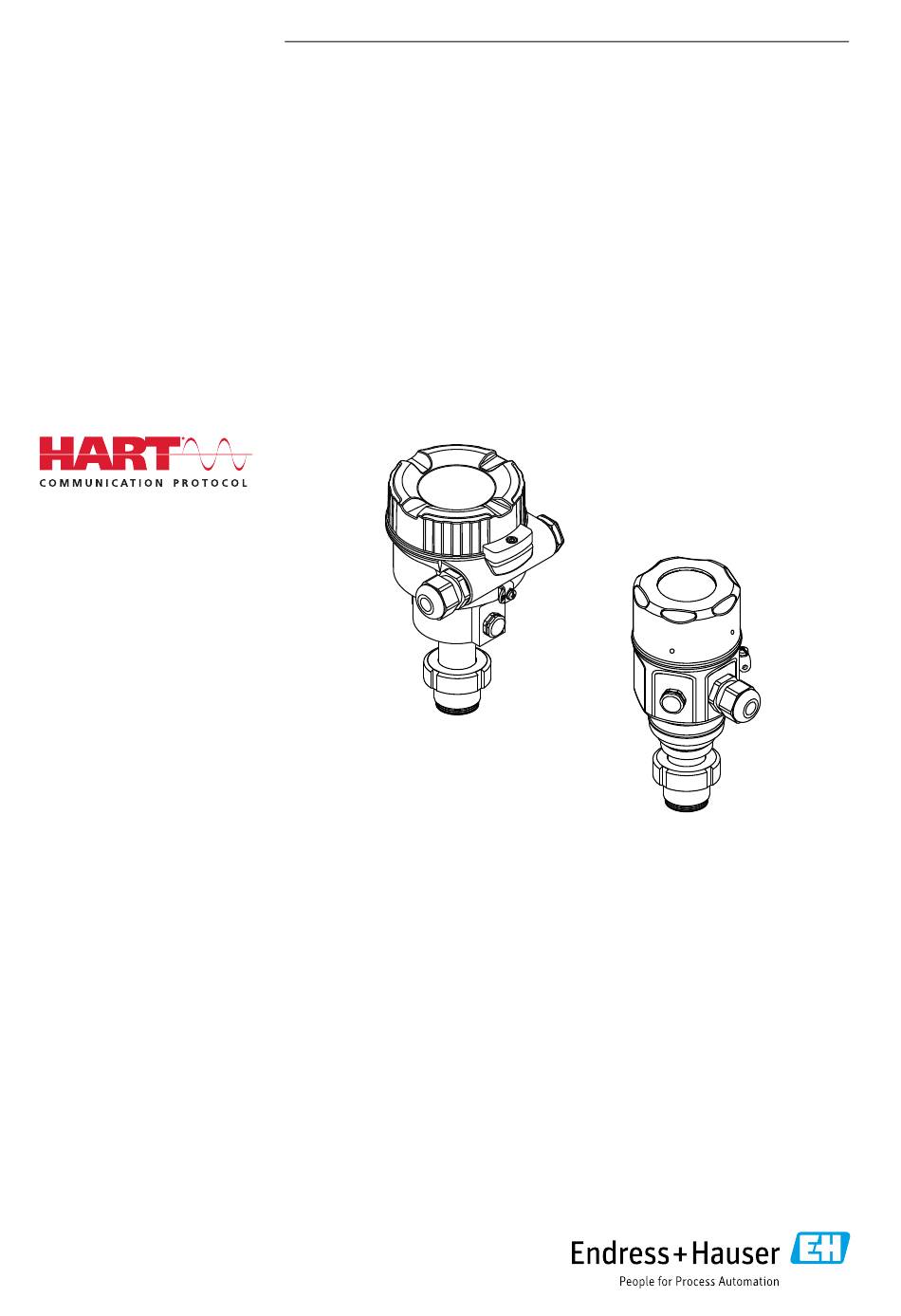

Brief Operating Instructions
Deltapilot M FMB50, FMB51,
FMB52, FMB53
Hydrostatic level measurement
These Instructions are Brief Operating Instructions; they are not
a substitute for the Operating Instructions pertaining to the
device.
Detailed information about the device can be found in the Ope-
rating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
