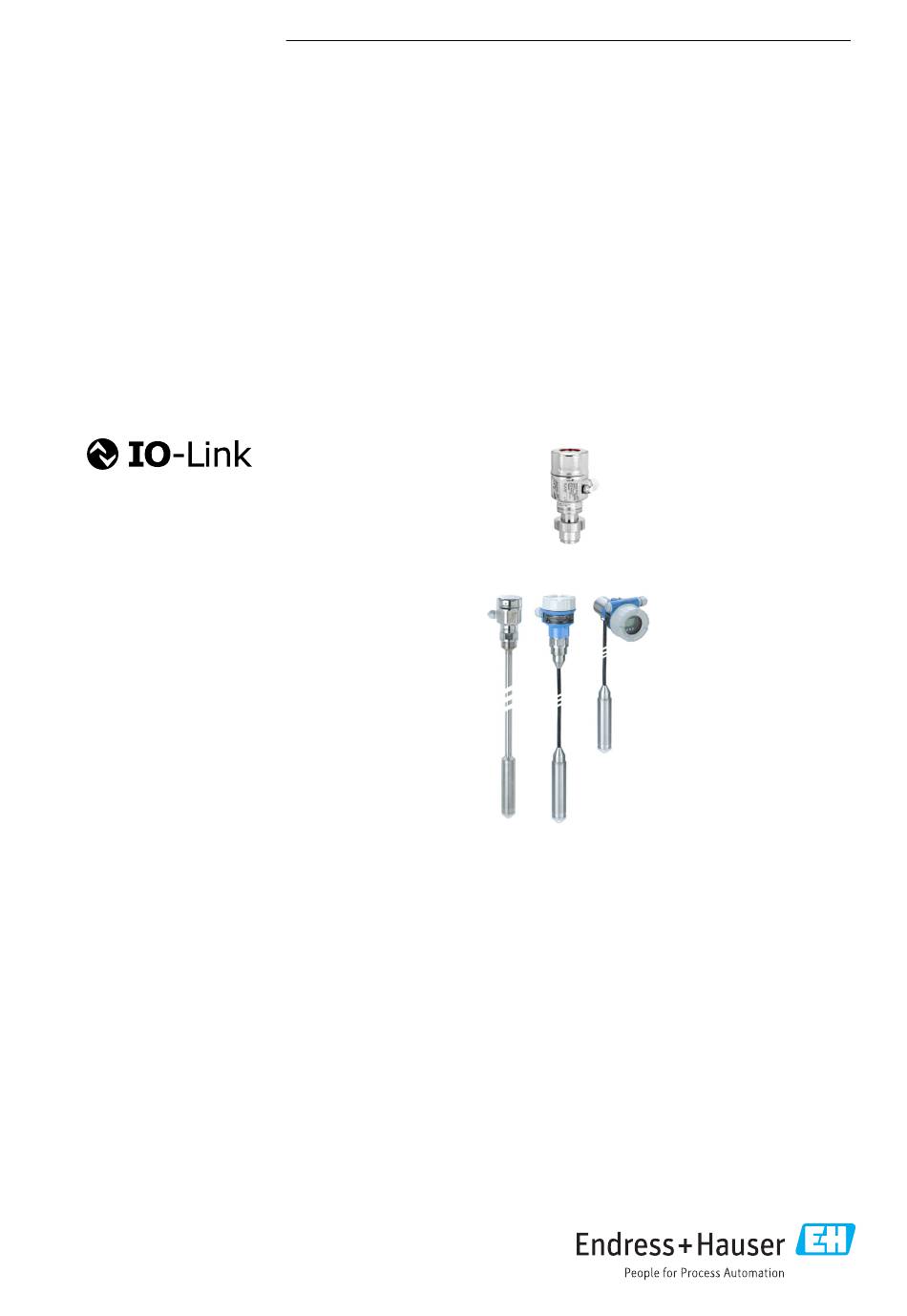

KA01523P/00/EN/02.22-00
71581315
2022-07-27
Products
Brief Operating Instructions

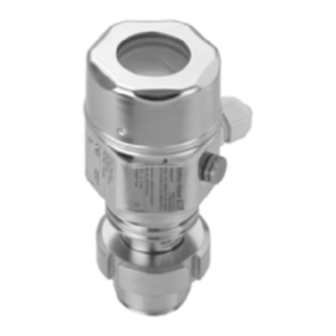

Deltapilot M FMB50
Hydrostatic level measurement
IO-Link
Pressure sensor
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the
Operating Instructions and the additional documentation.
Available for all device versions via
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Deltapilot M FMB50

Summary of Contents for Endress+Hauser Deltapilot M FMB50

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the additional documentation. Available for all device versions via • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...

  • Page 2: Associated Documentation

    Associated documentation Deltapilot M FMB50 IO-Link Associated documentation Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Document function The Brief Operating Instructions contain all the essential information from incoming acceptance to initial commissioning.

  • Page 3: Symbols Used

    Deltapilot M FMB50 IO-Link About this document Symbols used 2.2.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in seriousor fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING seriousor fatal injury.

  • Page 4: Registered Trademarks

    Basic safety instructions Deltapilot M FMB50 IO-Link Symbol Meaning Indicates additional information. Visual inspection 2.2.5 Symbols in graphics Symbol Meaning 1, 2, 3 ... Item numbers Series of steps 1. 2. 3. … A, B, C, ... Views A-A, B-B, C-C, ...

  • Page 5: Designated Use

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Product Safety

    • Do the data on the nameplate correspond to the order specifications and the delivery note? • Is the documentation available? • If required (see nameplate): Are the safety instructions (XA) present? If one of these conditions is not fulfilled, please contact your Endress+Hauser sales office. Storage and transport 4.2.1 Storage conditions Use original packaging.

  • Page 7: Installation

    Deltapilot M FMB50 IO-Link Installation 4.2.2 Transporting the product to the measuring point WARNING Incorrect transport! Housing and membrane may become damaged, and there is a risk of injury! ‣ Transport the measuring device to the measuring point in its original packaging or by the process connection.

  • Page 8: Mounting The Device

    Installation Deltapilot M FMB50 IO-Link Mounting the device 5.2.1 General installation instructions NOTICE Damage to the device! If a heated device is cooled during a cleaning process (e.g. by cold water), a vacuum develops for a short time and, as a result, moisture can enter the sensor via the pressure compensation (1).
  • Page 9 Deltapilot M FMB50 IO-Link Installation A0028472 5.2.2 FMB50 Level measurement • Always install the device below the lowest measuring point. • Do not install the device at the following positions: • in the filling curtain • in the tank outlet •...

  • Page 10: Supplementary Installation Instructions

    Installation Deltapilot M FMB50 IO-Link 5.2.3 Supplementary installation instructions Seal the probe housing • No moisture may enter the housing when installing or operating the device, or when establishing the electrical connection. • Always firmly tighten the housing cover and the cable entries.

  • Page 11: Electrical Connection

    Deltapilot M FMB50 IO-Link Electrical connection Electrical connection Connecting the device WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ Make sure that no uncontrolled processes are triggered on the system. ‣ Switch off the supply voltage before connecting the device.

  • Page 12: Connecting The Measuring Unit

    (20 to 12 AWG) Cable specification 6.4.1 IO-Link Endress+Hauser recommends using twisted, four-core cable. Load for current output In order to guarantee sufficient terminal voltage, a maximum load resistance R (including line resistance) must not be exceeded depending on the supply voltage U of the supply unit.

  • Page 13: Operation Methods

    Deltapilot M FMB50 IO-Link Operation If the load is too high, the device performs the following points: • Output of failure current and display of "M803" (Output: MIN alarm current) • Periodic checking to establish if it is possible to quit fault state Field Xpert SMT70, SMT77 See the Operating Instructions.
  • Page 14 Operation Deltapilot M FMB50 IO-Link 7.1.2 Operation with an operating menu Operation with an operating menu is based on an operating concept with "user roles" . Operation methods Explanation Graphic Description Local operation with The device is operated using the →...
  • Page 15 Deltapilot M FMB50 IO-Link Operation • IO-Link data storage: Yes • Block configuration: Yes • Device operational: The measuring device is operational 5 seconds after the supply voltage is applied IO-Link download http://www.endress.com/download • Select "Device Driver" from the search options shown •...

  • Page 16: Locking/Unlocking Operation

    Operation Deltapilot M FMB50 IO-Link Function of the operating elements Operating key(s) Meaning Zero pressed for at least 3 seconds Get LRV • "Pressure" measuring mode The pressure present is accepted as the lower range value (LRV). • "Level" measuring mode, "In pressure" level selection, "Wet"...
  • Page 17 Deltapilot M FMB50 IO-Link Operation A0028500 Functions: • 8-digit measured value display incl. sign and decimal point, bar graph for 4 to 20 mA as current display. • Three keys for operation • Simple and complete menu guidance as parameters are split into several levels and groups •...
  • Page 18 Operation Deltapilot M FMB50 IO-Link – A0030013 Main line Value Symbol Unit Bar graph Information line Operating keys The following table illustrates the symbols that can appear on the local display. Four symbols can occur at one time. Symbol Meaning Lock symbol The operation of the device is locked.
  • Page 19 Deltapilot M FMB50 IO-Link Operation 7.4.1 Operating keys on the display and operating module Operating key(s) Meaning • Navigate down in the picklist • Edit the numerical values or characters within a function A0017879 • Navigate up in the picklist •...
  • Page 20 Operation Deltapilot M FMB50 IO-Link Menu path: Setup → Extended setup→ Current output → Set URV Set URV Operation The local display shows the parameter to be changed. The "mbar" unit is mbar 1 0 0 . 0 0 0 defined in another parameter and cannot be modified here.

  • Page 21: System Integration

    Deltapilot M FMB50 IO-Link System integration System integration See the Operating Instructions. Commissioning The device is configured for the "Pressure" measuring mode (Cerabar) or "Level" measuring mode (Deltapilot) as standard. The measuring range and the unit in which the measured value is transmitted correspond to the specifications on the nameplate.
  • Page 22 Commissioning Deltapilot M FMB50 IO-Link WARNING Changing the measuring mode affects the span (URV)! This situation can result in product overflow. ‣ If the measuring mode is changed, the span setting (URV) must be verified and, if necessary, reconfigured! Carrying out position adjustment Make sure that pressure is present at the device.
  • Page 23 Deltapilot M FMB50 IO-Link Commissioning 9.1.2 Level measuring mode The following functions are possible via the keys on the electronic insert: • Position adjustment (zero point correction) • Setting the lower and upper pressure value and assigning to the lower and upper level value •...

  • Page 24: Commissioning With An Operating Menu

    Commissioning Deltapilot M FMB50 IO-Link Setting upper pressure value Make sure that the desired upper pressure value ("Full pressure value") is present at the device. In doing so, pay attention to the nominal pressure limits of the measuring cell. Press the Span key for at least 3 s.
  • Page 25 Deltapilot M FMB50 IO-Link Commissioning Description Select the measuring mode. The operating menu is structured differently depending on the measuring mode selected. WARNING Changing the measuring mode affects the span (URV) This situation can result in product overflow. ‣ If the measuring mode is changed, the setting for the span (URV) must be checked in the "Setup"...
  • Page 26 Commissioning Deltapilot M FMB50 IO-Link Navigation Setup → Corrected press. Write permission Operator/Maintenance/Expert Description Displays the measured pressure after sensor trim and position adjustment. Note If this value is not equal to "0", it can be corrected to "0" by the position adjustment.

  • Page 27: Configuring Pressure Measurement

    Deltapilot M FMB50 IO-Link Commissioning Example • Measured value = 2.2 mbar (0.033 psi) • You correct the measured value via the "Pos. zero adjust" parameter with the "Confirm" option. This means that you are assigning the value 0.0 to the pressure present.
  • Page 28 Commissioning Deltapilot M FMB50 IO-Link Description Select the "Pressure" measuring mode via the "Measuring mode" parameter. Menu path: Setup → Measuring mode [mA] WARNING Changing the measuring mode affects the span (URV) This situation can result in product overflow. ‣...
  • Page 29 Deltapilot M FMB50 IO-Link Commissioning 9.3.2 Calibration with reference pressure (wet calibration) Example: In this example, a device with a 400 mbar (6 psi) measuring cell module is configured for the 0 to +300 mbar (0 to 4.5 psi) measuring range, i.e. the 4 mA value and 20 mA value are assigned 0 mbar and 300 mbar (4.5 psi) respectively.
  • Page 30 Commissioning Deltapilot M FMB50 IO-Link Description Confirm the value present at the device by selecting "Confirm". The pressure value present is assigned to the upper current value (20 mA). Result: The measuring range is configured for 0 to +300 mbar (0 to 4.5 psi).
  • Page 32 *71581315* 71581315 www.addresses.endress.com...
