Published Manual Number/ECN: MT30CWE1CE/92097N
• Publishing System: TPAS
• Access date: 04/02/2001
• Document ECN's: Latest Available
Technical Reference—

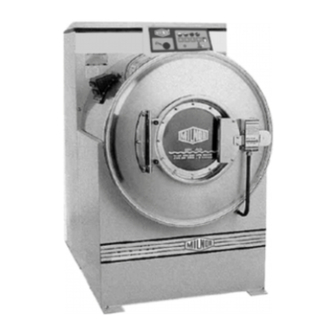

30015CWE, N4S & 30020N4S
PELLERIN MILNOR CORPORATION
POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.
Advertisement
Related Manuals for Milnor 30015CWE
Summary of Contents for Milnor 30015CWE
- Page 1 Published Manual Number/ECN: MT30CWE1CE/92097N • Publishing System: TPAS • Access date: 04/02/2001 • Document ECN's: Latest Available Technical Reference— 30015CWE, N4S & 30020N4S PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.
- Page 2 “Troubleshooting” chapter or section. See the table of contents. Trademarks of Pellerin Milnor Corporation The following, some of which may be used in this manual, are trademarks of Pellerin Milnor Corporation: ®...
- Page 3 Table of Contents for MT30CWE1CE/92097N 30015CWE, N4S & 30020N4S Page Description Document/ECN Section 1: Foreword Warranty BMP720097/92732A How to Order Parts BMP720097R/72332A Safety Precautions MSOP0501AE/84132V Section 2: Installation Facility Requirements MSIN0702AE/90046V Handling and Setting Procedures MSIN0703AE/90061V Fuse/Circuit Breaker and Wire Sizing MSSM0118AE/9330AV External Fuse &...
- Page 4 Table of Contents, cont. Page Description Document/ECN Dimensional Drawing - 30015 & 30020 Mxx, C4A BD30CWE1CE/92393D Dimensional Drawing - 30015 & 30020 Mxx, C4A Options BD30CWE1CB/92393D...
- Page 5 Section Foreword...
- Page 7 (including purchased components) without obligation to change any equipment previously supplied. ANY SALE OR FURNISHING OF ANY EQUIPMENT BY MILNOR IS MADE ONLY UPON THE EXPRESS UNDERSTANDING THAT MILNOR MAKES NO EXPRESSED OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE OR PURPOSE.
- Page 9 How to order repair parts Repair parts may be ordered either from the authorized dealer who sold you this machine, or directly from the MILNOR factory. In most cases, your dealer will have these parts in stock. When ordering parts, please be sure to give us the following information: 1.
- Page 10 MSOP0501AE/84132V (1 of 1)
- Page 11 Section Installation...
- Page 16 MSSM0118AE/9330BV (1 of 2) È F USE/CIRCUIT BREAKER AND WIRE SIZING • Grounding • Fuse Sizing • Circuit Breaker Sizing • Wire Sizing Ê G rounding Ground machine to an earth ground (zero potential). Use a ground wire of at least as large a gauge as that required for incoming power;...
- Page 17 FUSE/CIRCUIT BREAKER AND WIRE SIZING MSSM0118AE/9330BV (2 of 2) Ê W ire Sizing Size wire as follows: 1. Except as noted in item 2, below, size wire per the external fuse and wire size table in the schematic manual, for runs up to 50 feet (15 meters). Use next larger size for runs 50 to 100 feet (15 to 30 meters). Use wire two sizes larger for runs greater than 100 feet (30 meters).
- Page 18 BMP850034/95437V È E XTERNAL FUSE AND WIRE SIZES FOR WASHER EXTRACTORS: 30015 C4A, C4T, M4A, M4G, M4J, M4P, M4T LARGEST MOTOR = .75HP VOLT VOLTAGE RUNNING PHASE FREQUENCY FUSE CIRCUIT WIRE CODE (VAC) AMPS (Hz) (AMPS) BREAKER PER NEC (AMPS) (NOTE 5) (NOTE 1) (NOTES 2, 4)
- Page 19 BMP850038/97027V È E XTERNAL FUSE AND WIRE SIZES FOR WASHER EXTRACTORS: 30020 C4A, C4T, M4A, M4T, M5G, M5J, M5P; 30022 C4A, C4T, M4A, M4T, M5G, M5J, M5P, M5T LARGEST MOTOR = 1.5HP VOLT VOLTAGE RUNNING PHASE FREQUENCY FUSE CIRCUIT WIRE CODE (VAC) AMPS...
- Page 21 Section Functional Description...
- Page 31 Section Operation...
- Page 35 Section Troubleshooting...
- Page 43 Section Service and Maintenance...
- Page 44 È P REVENTIVE MAINTENANCE/LUBRICATION APPLICABILITY: MILNOR 30020 and 30015 model Washer-Extractors. As required by warranty and to achieve optimum performance and service life from MILNOR Washer-E xtractors, schedules, instructions, and precautions herein must be strictly followed. Ï P reventative Maintenance Schedule...
- Page 45 PREVENTIVE MAINTENANCE/LUBRICATION MSSM0705AE/90066V (2 of 2) R emove drain plug located on bottom of main bearing housing and allow bearing hous- ing to drain completely. Clean magnetic drain plug and re-install it in bottom of bearing housing. Strictly following lubrication specifications below, refill bearing housing using 1/2" plastic tube closest to the drive pulley.
