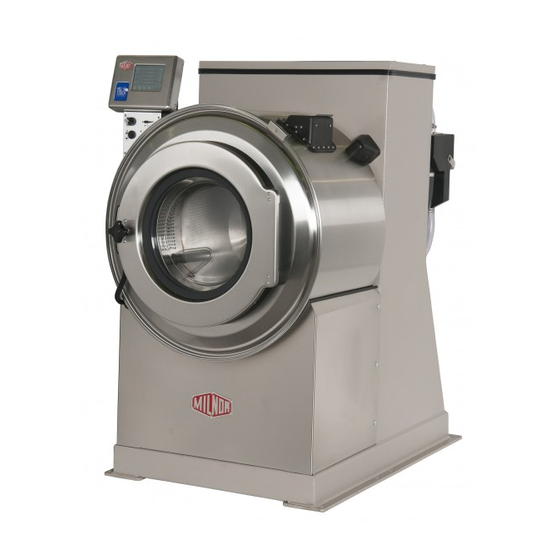

- Page 1 Published Manual Number/ECN: MKWOUO01U1/2020474A • Publishing System: TPAS2 • Access date: 11/18/2020 • Document ECNs: Latest 30015 & 30022V8Z, VZZ 36021 & 36026V5Z, V7Z 42026 & 42030V6Z MilTouch™ PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.
- Page 3 MKWOUO01U1/20474A English Operator Guide - Rigid Console MilTouch™ Washer-extractor MKWOUO01EN/2020403...
- Page 5 English...
- Page 7 Manual Number: MKWOUO01EN Edition (ECN): 2020403 Operator Guide Rigid Console MilTouch™ Washer- extractor PELLERIN MILNOR CORPORATION Post Office Box 400, Kenner, Louisiana 70063–0400, U.S.A.
-
Page 8: Table Of Contents
• Modify Cylinder Speed ..................20 • Modify Water Temperature .................20 • Modify Water Level ....................21 4.1.4 To Cancel a Formula .....................21 4.2 Errors ..........................22 4.2.1 MilTouch™ Error Messages .................22 4.2.2 Error Correction.....................25 4.3 How to Contact Milnor ® ....................27 Pellerin Milnor Corporation... - Page 9 Figure 23 Sample Error Code Dialog Box ................22 Figure 24 Transducer Tube .......................23 Figure 25 Schematic of Typical Drain Circuit ................23 Figure 26 Error Causes/Solutions Display ................26 Tables Table 1 Pellerin Milnor ® Corporation Contact Information ..........27 Pellerin Milnor Corporation...
-
Page 10: Preface
The machine must be fully commissioned and ready before you attempt to operate it. A separate controller reference manual is available from Milnor for use by technicians involved in the commissioning, programming, and servicing of the machine. -
Page 11: Controls
Door unlock button C... USB port The following figure shows how the control panel appears on 36021V5Z, 36021V7Z, 36026V5Z, 36026V7Z, 42026V6Z, and 42030V6Z machines. Figure 2. Control Panel Legend A... Door unlock button B... Master power switch Pellerin Milnor Corporation... -
Page 12: Emergency Stop Switch (Locking Push Button)
Figure 3. Emergency Stop Switch Stopped Position Run Position NOTICE: Press the emergency stop switch immediately in an emergency situation. Display or Action Explanation ® This symbol represents the emergency stop switch in Milnor documents other than electrical wiring diagrams. Pellerin Milnor Corporation... -
Page 13: How To Use The Miltouch™ Controller
From the Home display, and with a load of goods in the machine, you can select and run wash formulas. If your machine is part of a Mildata ® network, you can also run formulas programmed into the ® Mildata computer remotely from the Home display. Pellerin Milnor Corporation... -
Page 14: Figure 4 The Home Display
Access the Diagnostics displays *Dc. Display the dealer contact information *Dt. Access the Data Transfer display Access the Data Log displays The version data *Vd. View the version details for your controller software Access the Wash Formula Maintenance display Pellerin Milnor Corporation... -
Page 15: Normal Operation
Loading and unloading activities have associated risks that are addressed by safety placards on ® the machine. Before you use your Milnor washer-extractor for the first time, read the safety placards. If there is anything you do not understand, get clarification from your supervisor or laundry management. -
Page 16: Weighing Goods
� pocket. ® When your machine was purchased, your Milnor dealer worked with your laundry personnel to determine the optimum machine for your needs. This took into account factors such as the types of goods to be washed and the expected soil content of the goods, which can cause the correct load size to vary greatly among goods types. -
Page 17: Open The Door (Turn-Knob)
BNWUUO04 / 2020403 BNWUUO04 0000279498 A.18 9/29/20 9:53 AM Released Close the door. BNWUUO04.C01 0000279497 A.10 A.18 A.26 9/16/20 11:29 AM Released To close the door, swing the door closed with sufficient force that it latches. Pellerin Milnor Corporation... -
Page 18: Start The Wash Formula
Enter the load data. The available fields correspond to the Mildata ® configuration decisions. c. Touch to run the remote Mil- data ® formula on this machine. The Run display appears and the door to the washer-extractor locks. Pellerin Milnor Corporation... -
Page 19: About The Mildata ® Product And Production Data
Touch™ Programmer Application. NOTE: The Mildata ® product is a laundry management tool with capabilities not ex- plained here. Contact Customer Service/Technical Support using the contact information 4.3: How to Contact Milnor ® , page 27 for more information. Pellerin Milnor Corporation... -
Page 20: Monitor The Wash Formula
Figure 9. The Names and the Timers Area Legend F#.. Formula number Fn.. Formula name Fr.. Remaining formula time Ft.. Total formula time S#.. Step number Sr.. Remaining step time St.. Total step time Pellerin Milnor Corporation... -
Page 21: The Machine Status Area (B)
Figure 11 , until the programmed injection time expires. 3.7.1.3 Manual Control and Diagnostics Area (C) BNCLJO11.C03 0000213316 A.10 C.5 C.3 9/11/20 10:35 AM Released Use these buttons as explained in the following figure. Pellerin Milnor Corporation... -
Page 22: Respond To The End Of The Cycle
BNWBUO04.T01 0000291792 A.10 A.12 A.5 9/16/20 3:13 PM Released Open the door as described previously. Follow the safety guidelines outlined in 3.1: Safety and Best Practice When Loading and Unloading, page 8 when you unload the cylinder. Pellerin Milnor Corporation... -
Page 23: Troubleshooting
In this case, the formula can be programmed to turn on the opera- tor signal when operator intervention is required. When the machine desires a chemical injection, the step timer pauses, the operator signal sounds, and a dialog box ( shown in Figure 13 ) appears on the controller. Pellerin Milnor Corporation... -
Page 24: Error Intervention
Operators might also use formula intervention if it is necessary to make a temporary, or one-time change to a wash formula. For example, the operator may want to stop the timer to slowly add a chemical through the soap chute. Pellerin Milnor Corporation... -
Page 25: Modify Step Timer
Subtract 1 minute from the remaining step time. If there is less than 1 minute remaining on the step timer, the timer is reduced to 00:00 and the controller moves on to the next phase in the current step, or the next step if there are no more phases. Pellerin Milnor Corporation... -
Page 26: Modify Water Valves
Open the drain valve to the sewer. If the drain valve to the sewer is open, touch to close it. Open a secondary drain valve to a reuse tank. If the secondary drain valve is open, touch to close it. Close the window. Pellerin Milnor Corporation... -
Page 27: Modify Steam And Cooldown
— Touch the box identified by item Tw on Figure 14 Figure 20. Pop-up Controls for Water Temperature Increase the desired bath temperature by 1 degree (Celsius or Fahrenheit). Decrease the desired bath water temperature by 1 degree (Celsius or Fahrenheit). Close the window. Pellerin Milnor Corporation... -
Page 28: Modify Water Level
3. The controller disables all outputs, drains the bath water through the normally-open drain valve (usually the drain valve to the sewer), unlocks the door to the washer-extractor, and returns to the Home display. Pellerin Milnor Corporation... -
Page 29: Errors
Drain Blocked: The drain pipe from the machine to the sewer may be blocked. Check the drain pipe and remove any obstruction. Transducer Tube Blocked: The tube from the shell to the pressure transducer (Figure 24 may be blocked. Check the tube and remove lint or other obstructions. Pellerin Milnor Corporation... -
Page 30: Figure 24 Transducer Tube
Check Temperature Probe — The temperature probe detected a temperature below 32° F (0° C) or above 230°F (110°C). The controller turns off all outputs, cancels the wash formula, and re- turns to the Home display. The Probe is Disconnected: Electrical troubleshooting is required. Check for an open circuit. Pellerin Milnor Corporation... - Page 31 Inverter error: The machine controller cannot tell about the specific error. See the inverter manual for details. The inverter manual was shipped in an electric box on your machine or with the packet of documentation inside the machine cylinder. Pellerin Milnor Corporation...
-
Page 32: Error Correction
The Error Causes/Solutions display gives a list of possible causes for the error. Touch one of the error causes in the list for an explanation of how to correct it. Some errors do not have additional details on how to solve them. Pellerin Milnor Corporation... -
Page 33: Figure 26 Error Causes/Solutions Display
3. In the error code dialog box, touch to silence the operator signal, close the error code di- alog box, and resume the wash formula at the current step. Some error code dialog boxes close automatically when you resolve the error. Pellerin Milnor Corporation... -
Page 34: How To Contact Milnor
Milnor ® machine and knows about the local conditions that may be pertinent to the installation, use, or maintenance of the machine. Contact your dealer first. For assistance from the Milnor ® factory, refer to Table 1 for contact information.
