Milnor 30015T6X Installation Manual

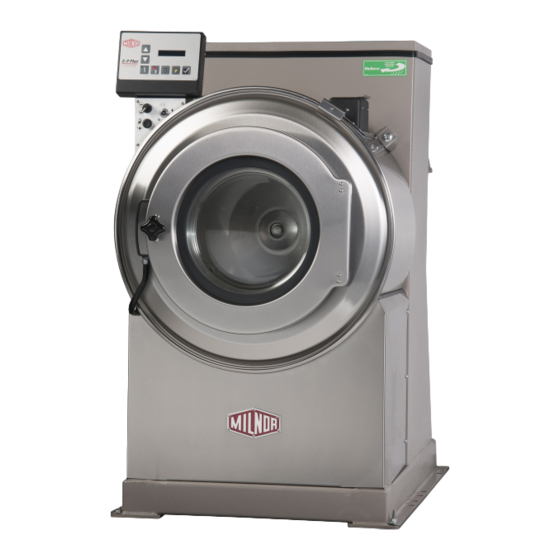

Rigid washer-extractors
Hide thumbs Also See for 30015T6X:

Advertisement

Table of Contents

Published Manual Number/ECN: MAI30V8ZAE/2018196A
• Publishing System: TPAS2
• Access date: 05/11/2018
• Document ECNs: Latest
Installation
30015 and 30022
VZZ, V8Z, VRJ, T6X
Rigid Washer-Extractors
PELLERIN MILNOR CORPORATION
POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Milnor 30015T6X

Summary of Contents for Milnor 30015T6X

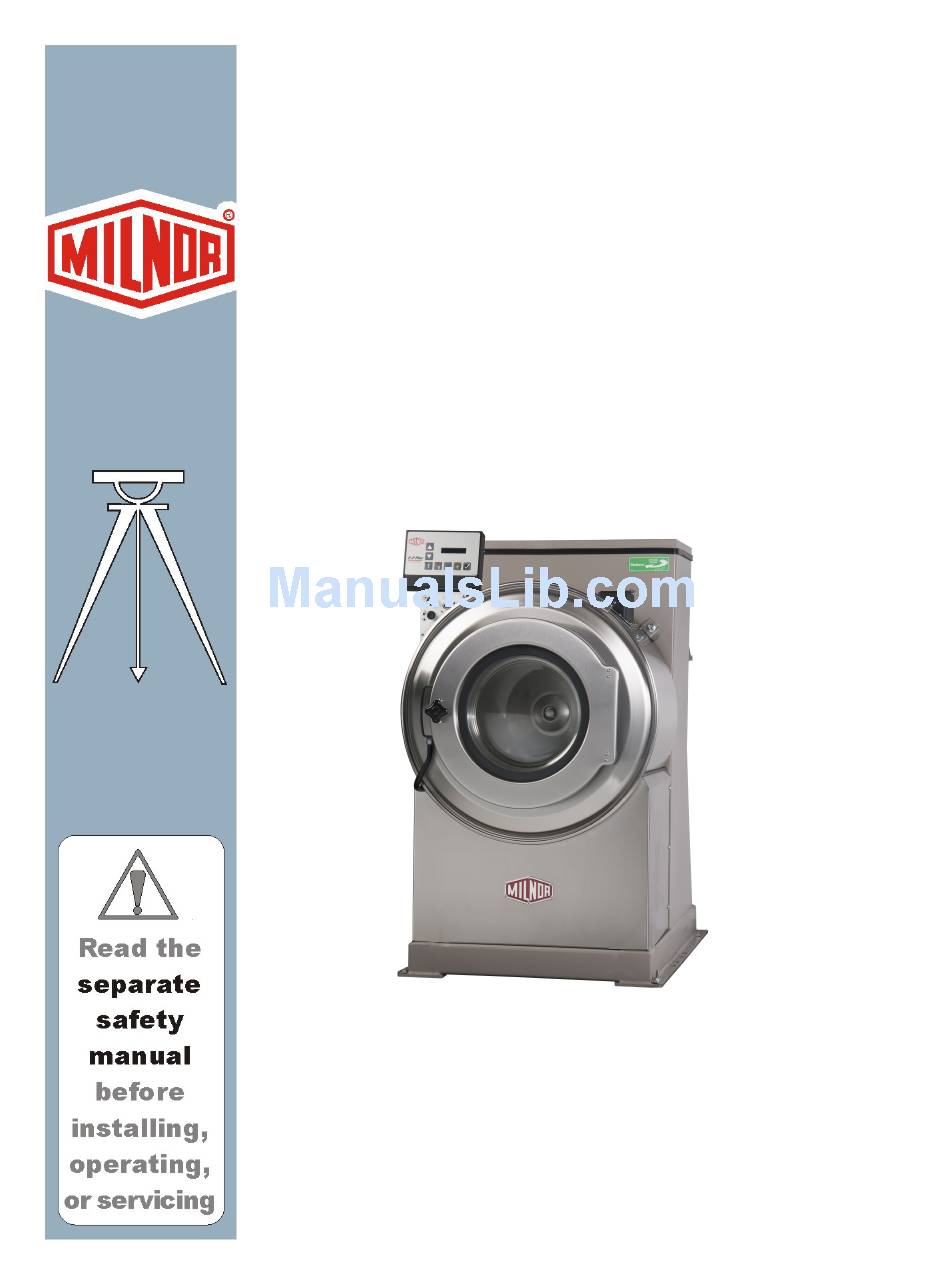

  • Page 1 Published Manual Number/ECN: MAI30V8ZAE/2018196A • Publishing System: TPAS2 • Access date: 05/11/2018 • Document ECNs: Latest Installation 30015 and 30022 VZZ, V8Z, VRJ, T6X Rigid Washer-Extractors PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.

  • Page 3: Table Of Contents

    How to Get the Necessary Repair Components BIUUUD19/20081231 Trademarks BNUUUU02/2017285A Safety—Rigid Washer Extractors BIUUUS27RU/20051111 About the Forces Transmitted by Milnor® Washer-extractors BIWUUI02/20001108 Installation Tag Guidelines - 30015 & 30022 T6X BNWOAI02/2018194A Installation Tag Guidelines - 30015 & 30022V8Z, VRJ, & VZZ BNWOAI03/2018194A...

  • Page 5: Limited Standard Warranty

    (unless the time period is specifically extended for certain parts pursuant to a specific MILNOR published extended warranty) from our factory with no operating hour limitation. This warranty is contingent upon the equipment being installed, operated and serviced as specified in the operating manual supplied with the equipment, and operated under normal conditions by competent operators.

  • Page 6: How To Get The Necessary Repair Components

    • If the component is an electrical component, give the schematic number if known. • If the component is a motor or an electrical control, give the nameplate data from the used component. To write to the Milnor factory: Pellerin Milnor Corporation Post Office Box 400...

  • Page 7: Trademarks

    BNUUUU02 / 2017285A BNUUUU02 0000158094 A.3 7/13/17 1:53 PM Released Trademarks BNUUUU02.R01 0000158093 A.2 7/13/17 1:11 PM Released These words are trademarks of Pellerin Milnor Corporation and other entities: Table 1 Trademarks AutoSpot™ GreenTurn™ Milnor® PulseFlow® CBW® GreenFlex™ MilMetrix® PurePulse®...

  • Page 8: Safety—Rigid Washer Extractors

    The owner/user must familiarize himself with the contents of all machine instruction manuals. The owner/user should direct any questions about these instructions to a Milnor® dealer or the Milnor® Service department.
  • Page 9 The Safety Guide and other machine manuals must be available at all times to the appropriate personnel. See the machine service manual for safety placard part numbers. Contact the Milnor Parts department for replacement placards or manuals. Maintenance —Ensure the machine is inspected and serviced in accordance with the norms of 1.5.
  • Page 10 Processing can cause solvent-containing goods to give off flammable vapors. • Do not use flammable solvents in processing. • Do not process goods containing flammable substances. Consult with your local fire department/public safety office and all insurance providers. PELLERIN MILNOR CORPORATION...
  • Page 11 This will over-speed the motor and pulleys and can cause them to rip apart, discharging metal fragments at high speed. • Stop the machine immediately if any of these conditions occur: • abnormal whining sound during extract • skidding sound as extract ends • clutches remain engaged or re-engage during extract PELLERIN MILNOR CORPORATION...
  • Page 12 Hazards include but are not limited to panic, burns, poisoning, suffocation, heat prostration, biological contamination, electrocution, and crushing. • Do not enter the cylinder until it has been thoroughly purged, flushed, drained, cooled, and immobilized. — End of BIUUUS27 — PELLERIN MILNOR CORPORATION...

  • Page 13: How Strong And Rigid

    • the liquor level and chemical conditions in the bath preceding extraction, and • other miscellaneous factors. ® Estimates of the maximum force normally encountered are available for each Milnor model and ® size upon request. Floor or foundation sizes shown on any Milnor...
  • Page 14 All data is subject to change without notice and may have changed since last printed. It is the sole responsibility of every potential owner to obtain written ® confirmation that any data furnished by Milnor applies for the model(s) and serial number(s) of the specific machines.
  • Page 15 Read the manuals before proceeding. This symbol appears on most tags. The machine ships with safety, operator, and routine maintenance guides for customer use. Milnor dealer manuals for installing, commissioning, and servicing the machine are also available from the Milnor Parts department.
  • Page 16 B2T2003001: Hold the side of the connection stationary with a wrench as you tighten the connection with another wrench. Other- wise, you may twist components, such as valves, damaging them. End of document: BNWOAI02 Pellerin Milnor Corporation...
  • Page 17 Read the manuals before proceeding. This symbol appears on most tags. The machine ships with safety, operator, and routine maintenance guides for customer use. Milnor dealer manuals for installing, commissioning, and servicing the machine are also available from the Milnor Parts department.
  • Page 18 B2T2003001: Hold the side of the connection stationary with a wrench as you tighten the connection with another wrench. Other- wise, you may twist components, such as valves, damaging them. B2T2004027: Steam connection. (Optional.) End of document: BNWOAI03 Pellerin Milnor Corporation...

  • Page 19: Prevent Damage From Chemical Supplies And Chemical

    The company that does these procedures must make sure that these procedures do not cause dam- age. Pellerin Milnor Corporation accepts no responsibility for chemical damage to the ma- chines it makes or to the goods in a machine.

  • Page 20: Systems

    Figure 1. Incorrect Configurations That Let the Chemical Supply Go In the Machine by a Siphon Schematic Views Legend Pump Chemical tank The siphon occurs above here. Liquid in the gray parts of the chemical tube and tank can go in the machine. Pellerin Milnor Corporation...

  • Page 21: Systems

    BNUUUR02.R02 0000160545 A.2 A.8 8/30/17 3:28 PM Released Use the chemical manifold supplied. There is a manifold on the machine to attach chemical tubes from a chemical pump system. The manifold has a source of water to flush the chemical supplies with water. Pellerin Milnor Corporation...

  • Page 22: Systems

    Figure 4. A Configuration that Prevents Flow in the Machine When the Pump is Off (if the chemical tube and tank have no pressure) Schematic View Legend Chemical inlet on the machine Chemical tube Pump Chemical tank Pellerin Milnor Corporation...

  • Page 23: Systems

    Prevent leaks. When you do maintenance on the chemical pump system: • Use the correct components. • Make sure that all connections are the correct fit. • Make sure that all connections are tight. End of document: BNUUUR02 Pellerin Milnor Corporation...

  • Page 25: Installation

    Installation...

  • Page 26: Washer-Extractors

    Do not hesitate to file a claim with the carrier if the machine is damaged in any way ® during shipment. Milnor will be glad to assist you in filing your claim, but is not responsible for any shipping damage to the machine once it has been delivered to the carrier in good condition.
  • Page 27 If another bolt installation procedure is ® used, do not install the bolts until the machine is on site and bolt locations can be determined. Consult Milnor if any obstruction prevents the installation of any anchor bolt. Anchor bolts cannot be indiscriminately omitted.
  • Page 28 Ê S etting Procedures See FIGURE 1 during the following procedures: 1. With the machine near the final location, unbolt the shipping skids. Observing all precautions, lift the machine off its skids and lower the machine onto temporary blockings as shown in FIGURE 1.
  • Page 29 3. After determining the final position of the machine, apply grout between the existing foundation floor and base plates, while observing the following considerations: • All machines are designed to be grouted under the full area of all base plates. Grout prevents the anchor bolts from distorting the frame when the fasteners are tightened.

  • Page 30: Service Connections

    10 - 75 psi code Hot water inlet(s) Third/Flush water (if equipped) Steam inlet (if equipped) 1/2" NPT @ 30 - 115 psi Liquid supply inlet Flexible tubing as supplied by 3/8" or 1/2" the chemical supplier PELLERIN MILNOR CORPORATION...
  • Page 31 Never attempt to reconnect motors or the motor control devices. 7. Machine is shipped set for 240 volt operation from the factory (Figure 2). If the supply voltage is 208 volts, then remove the top, and place the line voltage switch in the 208 volt position. PELLERIN MILNOR CORPORATION...
  • Page 32 Restraints may include the vibration switch restraint. Figure 3: Typical Vibration Switch showing restraint in place Check Cylinder Surface Check the perforated cylinder for smoothness. Milnor will not accept responsibility for the cylinder finish after the machine is placed in service. PELLERIN MILNOR CORPORATION...
  • Page 33 Service Connections Optional Lint Trap Figure 4: Lint Trap SA 02 069 Trap mounting method Legend Washer-extractor drain tube U bolt Mounting bracket — End of BIRQVI01 — PELLERIN MILNOR CORPORATION...

  • Page 35: Dimensional Drawings 30015 & 30022 T6X, Vrj, V8Z, Vzz - Short

    Dimensional Drawings 30015 & 30022 T6X, VRJ, V8Z, VZZ - Short base (10 bolt)
