Replacing the Grass
Deflector
DANGER
An uncovered discharge opening allows
objects to be thrown toward you or
bystanders. Also, contact with the blade
could occur. Thrown objects or blade contact
will cause serious injury or death.
Do not operate the mower with the discharge
deflector raised, removed, or altered unless
a grass collection system or mulch kit is in
place and working properly.
1. Remove the locknut, bolt, spring, and spacer
holding the deflector to the pivot brackets.

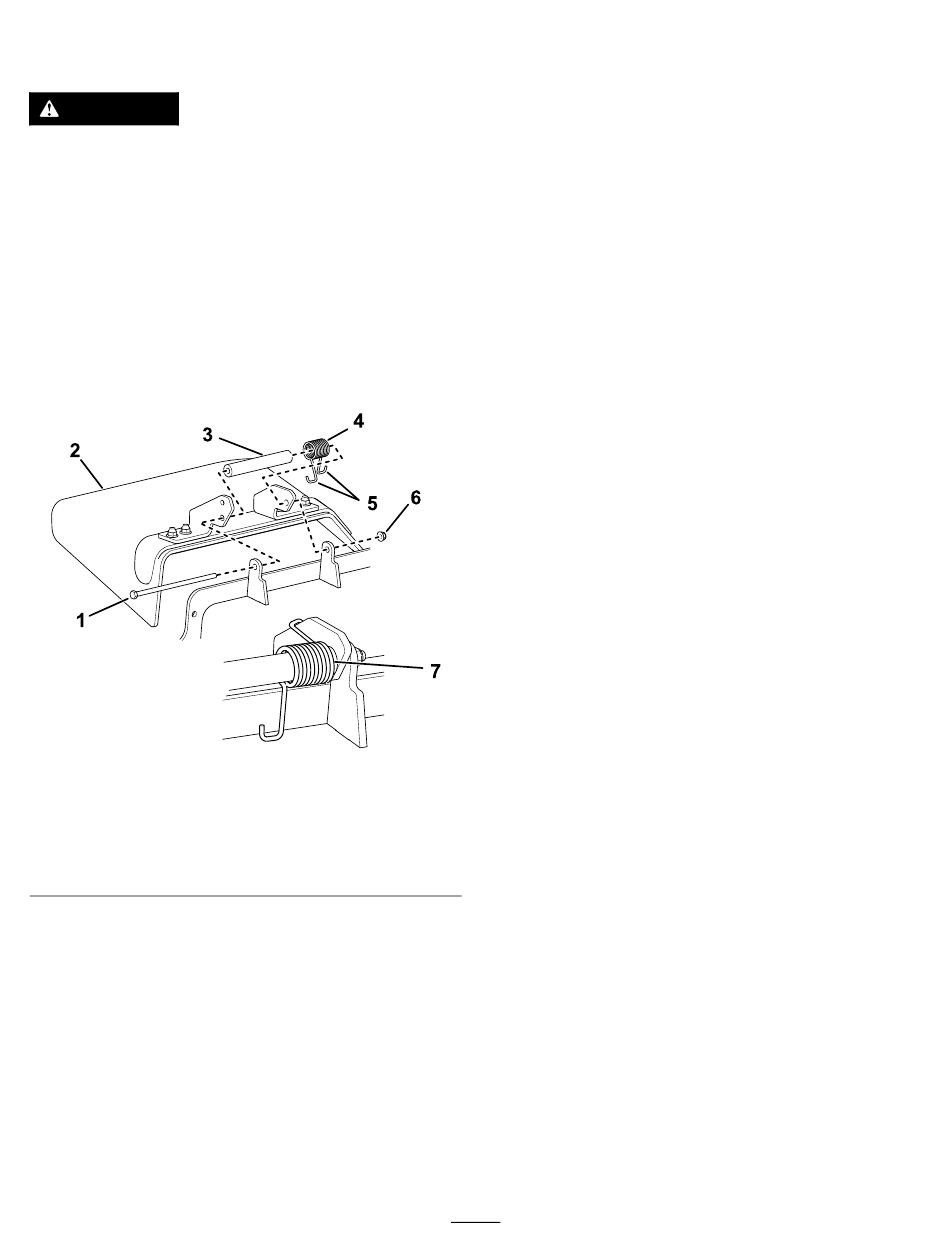

Figure 93
1. Bolt
2. Grass deflector
3. Spacer
4. Spring
2. Remove the damaged or worn grass deflector.
3. Place the spacer and the spring onto the grass
deflector.
4. Place 1 J-hook end of the spring behind the
deck edge.
Note:
Make sure that 1 J-hook end of spring is
installed behind deck edge before installing the
bolt as shown in
5. Install the bolt and the nut.
5. J-hook end of the spring
6. Locknut
7. Spring (installed)
Figure 93.
6. Place 1 J-hook end of the spring around the
grass deflector.
Important:
to rotate. Lift the deflector up to the full open
position, and ensure that it rotates into the
full-down position.
g400729
52
The grass deflector must be able
