With explosion proof enclosure (according to Ex d)
Application
• Oil & gas
• Petrochemical industry
• System and apparatus engineering
• Outdoor applications
• Laboratory facilities
• Process data acquisition and monitoring
• Optional: stainless steel housing
Products
Technical Information
RIA14
Loop powered field indicator
Solutions
Your benefits
• Loop-powered indicator in single compartment housing
• 5-digit LC display, character height 20.5 mm (0.8")
• Illuminated display, rotatable in 90° steps
• Trend bargraph in increments of 10%
• Measuring range display from -19999 to 99999
• Digital limit switch
• Freely programmable units
• 3-key operation
• Approvals: ATEX, IECEx, FM, CSA, TIIS, UL listed,
GL marine certificate
• 3 cable entries
• Configuration with FieldCare PC software
• Configuration without power supply using setup box
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RIA14
Summary of Contents for Endress+Hauser RIA14

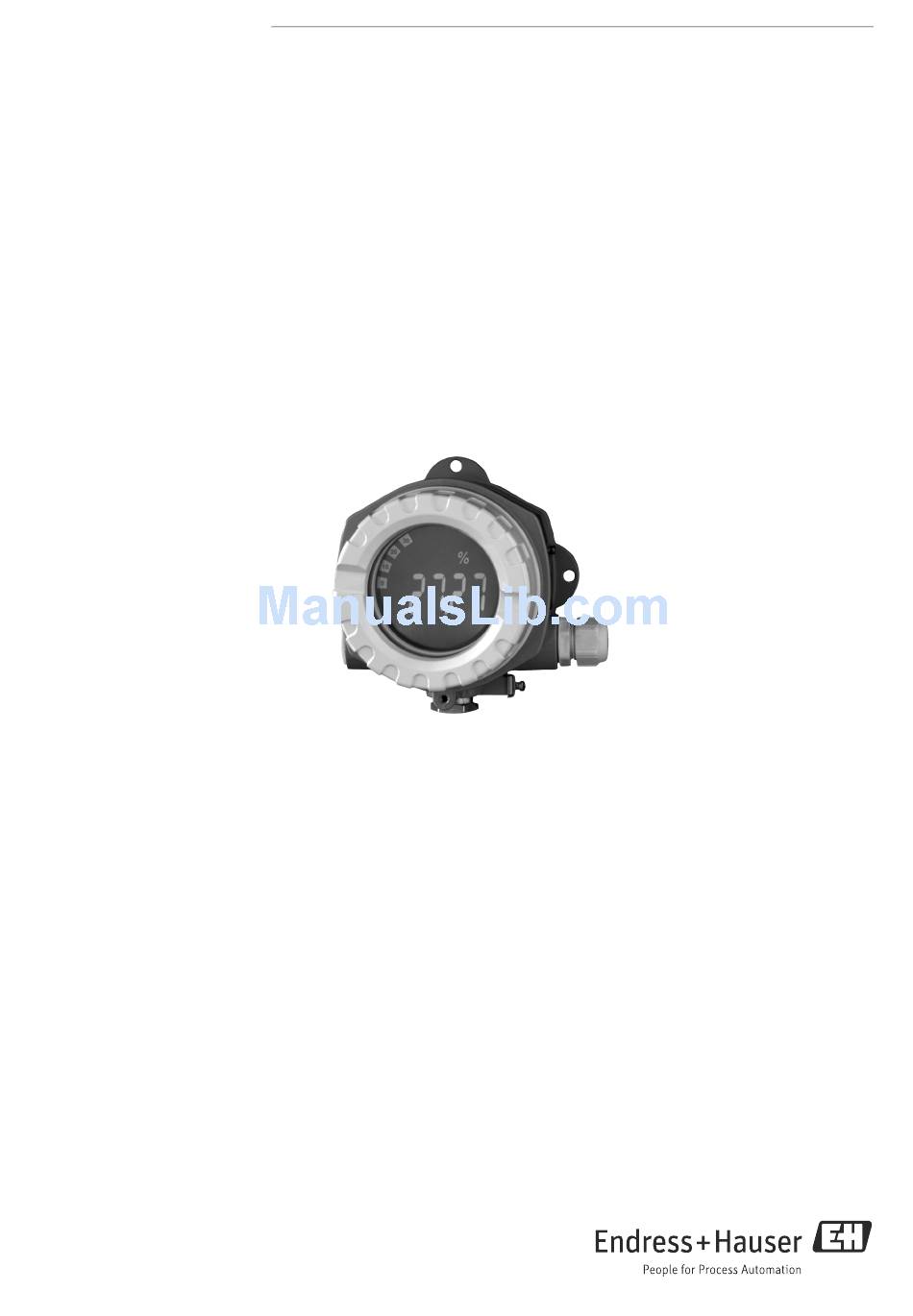

- Page 1 Products Solutions Services TI00143R/09/EN/04.14 71256618 Technical Information RIA14 Loop powered field indicator With explosion proof enclosure (according to Ex d) Application Your benefits • Oil & gas • Loop-powered indicator in single compartment housing • Petrochemical industry • 5-digit LC display, character height 20.5 mm (0.8") •...
-
Page 2: Function And System Design
RIA14 Function and system design Measuring principle a0011145-en Example of an application of the field indicator The indicator records an analog measuring signal and shows this on the display. The LC display shows the current measured value digitally and as a bargraph with limit value violation signalling. The indicator is looped into the 4 to 20 mA circuit and obtains the required energy from there. -
Page 3: Power Supply
RIA14 Power supply Terminal assignment a0010946-en Terminal assignment of the field indicator Terminal Terminal assignment Input and output Measuring signal (+) 4 to 20 mA Signal input Measuring signal (-) 4 to 20 mA Signal input Terminal for further instrumentation... -
Page 4: Performance Characteristics
RIA14 Performance characteristics Reference operating T= 25 °C (77 °F) conditions Maximum measured error < 0.1% of scaled display range Influence of ambient Effect on the accuracy when ambient temperature changes by 1 K (1.8 °F): 0.01% temperature Installation Mounting location... -
Page 5: Mechanical Construction
RIA14 Mechanical construction Design, dimensions Die cast aluminum housing for general purpose or as option stainless steel housing a0011152 Data in mm (data in inches in brackets) • Electronics compartment and connection compartment together in the single chamber housing • Display can be rotated in 90°-stages Weight •... - Page 6 RIA14 Operability Local operation a0011157 LC display of the field indicator (illuminated, pluggable in 90° stages) Item 1: bargraph display in increments of 10% with indicators for measuring range undershoot (item 1a)/overshoot (item 1b) Item 2: measured value display, character height 20.5 mm (0.8") Item 3: 14-segment display for units and information messages Item 4: symbol "programming disabled"...
-
Page 7: Certificates And Approvals
Configuration with PC operating software. Certificates and approvals CE mark The device complies with the legal requirements of the EC directives. Endress+Hauser confirms that the device has been successfully tested by affixing to it the CE mark. Ex approvals Information about currently available Ex versions (ATEX, FM, CSA, etc.) can be supplied by your E+H Sales Center on request. -
Page 8: Ordering Information
Ordering information Detailed ordering information is available from the following sources: • In the Product Configurator on the Endress+Hauser website: www.endress.com É Select country É Instruments É Select device É Product page function: Configure this product • From your Endress+Hauser Sales Center: www.endress.com/worldwide Product Configurator - the tool for individual product configuration •... - Page 9 RIA14 Accessories Accessories Order No. Name FXA291 Commubox FXA291 incl. FieldCare Device Setup and DTM library TXU10-AC Commubox TXU10 incl. FieldCare Device Setup and DTM library Documentation • Overview brochure: System components: FA00016K/09 • Operating Instructions for ' R IA14 field indicator' : BA00278R/09 •...
