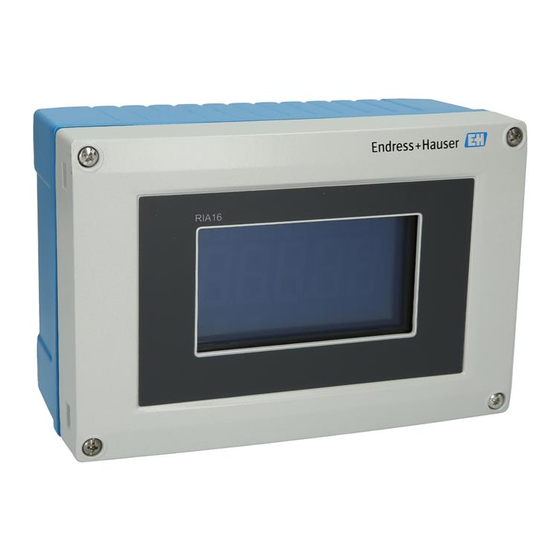

Endress+Hauser RIA16 Operating Instructions Manual
Loop-powered field indicator
Hide thumbs
Also See for RIA16:
- Brief operating instructions (56 pages) ,
- Operating instructions manual (32 pages) ,
- Brief operating instructions (20 pages)
Related Manuals for Endress+Hauser RIA16
Summary of Contents for Endress+Hauser RIA16
- Page 1 Products Solutions Services BA00280R/09/EN/06.23-00 71613276 2023-01-31 Operating Instructions RIA16 Loop-powered field indicator...
-
Page 2: Table Of Contents
Table of contents RIA16 Table of contents About this document ....3 Repair ......22 Symbols . -
Page 3: About This Document
RIA16 About this document About this document Symbols 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 4: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.2.1 Document function... -
Page 5: Basic Safety Instructions
RIA16 Basic safety instructions Document type Purpose and content of the document Safety Instructions (XA) Depending on the approval, safety instructions for electrical equipment in hazardous areas are also supplied with the device. The Safety Instructions are an integral part of the Operating Instructions. -
Page 6: Product Safety
Incoming acceptance and product identification RIA16 Modifications to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers! ‣ If modifications are nevertheless required, consult with the manufacturer. Repair To ensure continued operational safety and reliability: ‣... -
Page 7: Product Identification
(www.endress.com/deviceviewer): all the information about the device and an overview of the Technical Documentation supplied with the device are displayed. • Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information about the device and the technical documentation pertaining to the device is displayed. -
Page 8: Mounting
Mounting RIA16 3.4.1 UL approval More information under UL Product iq™, search for keyword "E225237") Mounting Mounting requirements The device is designed for use in the field. Its orientation is determined by the readability of the display. Operating temperature range: •... -
Page 9: Mounting The Measuring Device
RIA16 Mounting Mounting the measuring device The device can either be mounted directly to the wall or mounted to the pipe or wall using the optional mounting kit. 4.2.1 Direct wall mounting To mount the indicator directly on the wall: 1. -
Page 10: Post-Mounting Checks
Electrical connection RIA16 Post-mounting checks Perform the following checks after mounting the device: Device condition and specifications Note Is the measuring device damaged? Visual inspection Is the seal undamaged? Visual inspection Is the device firmly screwed to the wall or mounting plate? -
Page 11: Connecting The Device
RIA16 Electrical connection A0014935 5 Installing the cable shield ground clamps (aluminum housing only) Connecting the device active Terminal 2 and 3 + - 1a1b Open Collector passive 1a 1b + - 1a 1b loop power loop power supply... -
Page 12: Ensuring The Degree Of Protection
Electrical connection RIA16 4 to 20 mA measuring circuit. There must be potential equalization along the measuring circuits (inside and outside the hazardous area). Ensuring the degree of protection The devices meet all the requirements of IP67. In order to guarantee this after mounting or after a service case the following points must be observed. -
Page 13: Operation Options
RIA16 Operation options Operation options Overview of operation options 6.1.1 Display A0011163 8 LC display of the field indicator Bargraph display 14-segment display for units and messages Indicator for measuring range undershoot ’Programming disabled’ symbol Indicator for measuring range overshoot Unit ’%’... - Page 14 Operation options RIA16 Operating keys: "E" Enter key: Press and hold down the E key for longer than 3 seconds to access the programming menu. • Select operating functions. • Accept values. • Hold down the E key for longer than 3 seconds to jump to the Home position. A prompt appears beforehand asking whether you want to save the data entered up to this point.
-
Page 15: Structure And Function Of The Operating
RIA16 Operation options Structure and function of the operating menu Menu Operating function Operating function Operating function Parameter Default/ Parameter Default/ Parameter Default/ Selection Selection Selection Analog input Characteristic curve Signal damping Decimal point of measured INPUT CURV DAMP value... -
Page 16: Access To The Operating Menu Via The Operating Tool
Operation options RIA16 Menu Operating function Operating function Operating function Parameter Default/ Parameter Default/ Parameter Default/ Selection Selection Selection ---- Only if DIM = TEXT Only if NAMUR = Edit Only available for service personnel Access to the operating menu via the operating tool 6.4.1... -
Page 17: Commissioning
RIA16 Commissioning 2. In the Comm-DTM settings, set the baud rate to 2400 baud and select the COM port used. 3. Add the device DTM "RIA14/16/Vx.xx.xx" to the project using the "Add device..." function. 4. Continue with device configuration in accordance with these Operating Instructions. - Page 18 Commissioning RIA16 Damping INPUT → DAMP → Options: 0-99 (0 = no damping). • Measured value damping can be set between 0 to 99 s . • Only whole numbers can be entered. • The factory setting is 0 (no damping).
- Page 19 RIA16 Commissioning A0051908 Configuring the editable unit 1. Press the E key to select the desired operating function. 2. Press the E key to select the next point of the 5-digit 14-segment display. 3. Press the + or - key to select the next/previous character for the point selected.
- Page 20 Commissioning RIA16 • Value range: –19 999 to 99 999 • Default 0 Delay LIMIT → DELY → Options 0 to 99 s Setting of the response delay (in seconds) of the limit value event after reaching the switching threshold.
-
Page 21: Diagnosis And Troubleshooting
RIA16 Diagnosis and troubleshooting The Namur limits are listed in ascending order. Test (TEST) PARAM → TEST → Options OFF, OUT, DISP Certain device functions can be tested automatically. • off: OFF (default) • Open Collector: OUT • Display: DISP 7.3.5... -
Page 22: Maintenance
Maintenance RIA16 Error code Meaning F282 The parameter data could not be saved. "Failure" warning symbol is displayed. F283 Incorrect parameter data "Failure" warning symbol is displayed. F431 Incorrect reference values "Failure" warning symbol is displayed. 8.2.1 Firmware history Revision history The version number on the nameplate and in the Operating Instructions indicates the device release: XX.YY.ZZ (example 01.02.01). -
Page 23: Spare Parts
RIA16 Repair 10.1.1 Repair of Ex-certified devices • Only specialist personnel or the manufacturer may undertake repairs on Ex-certified devices. • The prevailing standards, national hazardous area regulations, safety instructions and certificates must be observed. • Only use original spare parts from the manufacturer. -
Page 24: Return
Accessories RIA16 Item No. Type Order number Cable gland M16x1.5 PA RAL7035 51004048 Cable gland NPT 1/2 D4-8.5, IP68 51006845 Adapter M16x1.5 NPT1/2 71085029 Set of small parts: RIA16X-GG Gore-Tex filter, 2 x hinge pins, cable shield grounding clamp (metal kit = 5 brackets +... -
Page 25: Device-Specific Accessories
RIA16 Technical data 11.1 Device-specific accessories Designation Description Wall/pipe mounting kit For pipes ⌀1-5" , different variants for plastic and aluminum housings Weather protection cover 163.9 (6.45) 274 (10.79) (1.18) 272 (10.71) A0021548 13 Dimensions in mm (in) 11.2... -
Page 26: Power Supply
Technical data RIA16 Passive, open collector: • I = 200 mA • U = 35 V • U ≤ 2 V at 200 mA low/max • Maximum reaction time to limit value = 250 ms • Temperature range: –20 to +80 °C (–4 to +176 °F) 12.2.2... -
Page 27: Performance Characteristics
RIA16 Technical data 12.3.2 Supply voltage Power is supplied via the 4 to 20 mA current loop. 12.3.3 Cable entries The following cable entries are available: • 2x thread NPT1/2 • 2x thread M16 The plastic housing includes up to 5 cable entries. In the housing as supplied to the customer, 3 of these remain closed. - Page 28 Technical data RIA16 12.6.2 Storage temperature –40 to +80 °C (–40 to +176 °F) 12.6.3 Electrical safety As per IEC 61010-1, UL61010-1, CSA C22.2 No. 1010.1-92 12.6.4 Climate class As per IEC 60654-1, Class C 12.6.5 Degree of protection IP 67, NEMA 4X (not UL rated) 12.6.6...
-
Page 29: Mechanical Construction
RIA16 Technical data 12.7 Mechanical construction 12.7.1 Design, dimensions 96 (3.78) 199 (7.83) 163 (6.42) A0011162 15 Dimensions in mm (in) Bore hole for mounting directly to wall or optional mounting plate with 4 screws ⌀ 5 mm (0.2 in) 12.7.2... - Page 30 Technical data RIA16 12.8.2 On-site operation A0011163 16 LC display of the field indicator Bar graph display in increments of 10% with indicators for measurement range undershoot (item 1a) and overshoot (item 1b) Measured value display, digit height 26 mm (1.02 in) 14-segment display for units and messages "Programming disabled"...
-
Page 31: Certificates And Approvals
• Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 12.10.1 Document function The following documentation may be available depending on the version ordered:... - Page 32 Technical data RIA16 Document type Purpose and content of the document Operating Instructions (BA) Your reference document The Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product...
- Page 36 *71613276* 71613276 www.addresses.endress.com...
