Replacing the Backplane

Removing the 3.5" Hard Drive Backplane:

1. Remove all hot-swap drive carriers, regardless of whether or not a drive is installed in the

carrier. Disconnect all cables from the backplane.

2. Remove the six screws to release the hard drive cage (see letter "A").

3. Slide the hard drive cage out of the server chass, the clip will fall out automatically (see letter

"B").

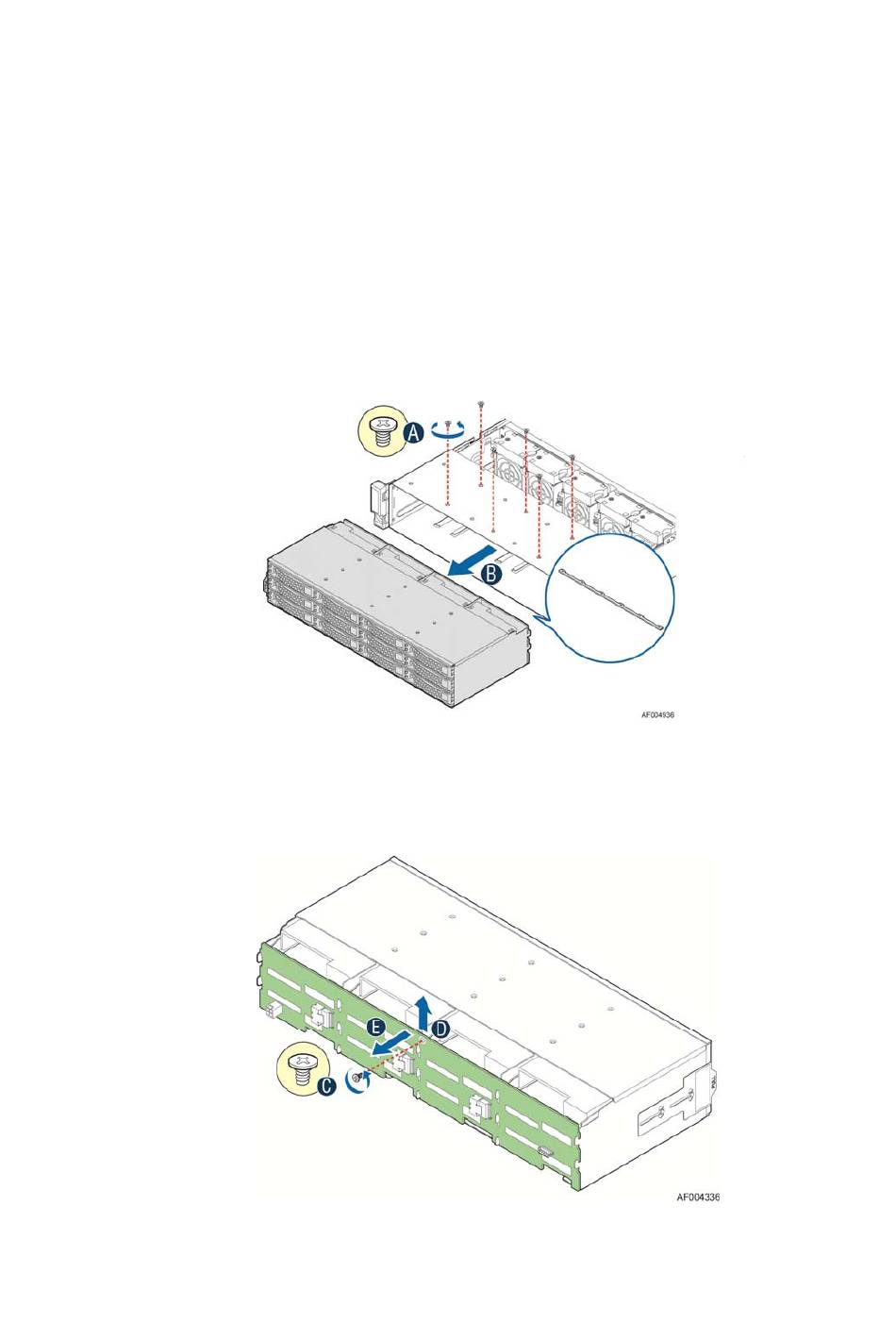

Figure 84. Removing 3.5" hard drive backplane – remove the hard drive cage

4. Remove the screw at the rear of the backplane (see letter "C");

5. Pull up the backplane (see letter "D"). Remove the backplane from the server chassis (see letter

"E").

Intel

Server System R2000GZ/GL Service Guide

Hardware Installations and Upgrades
