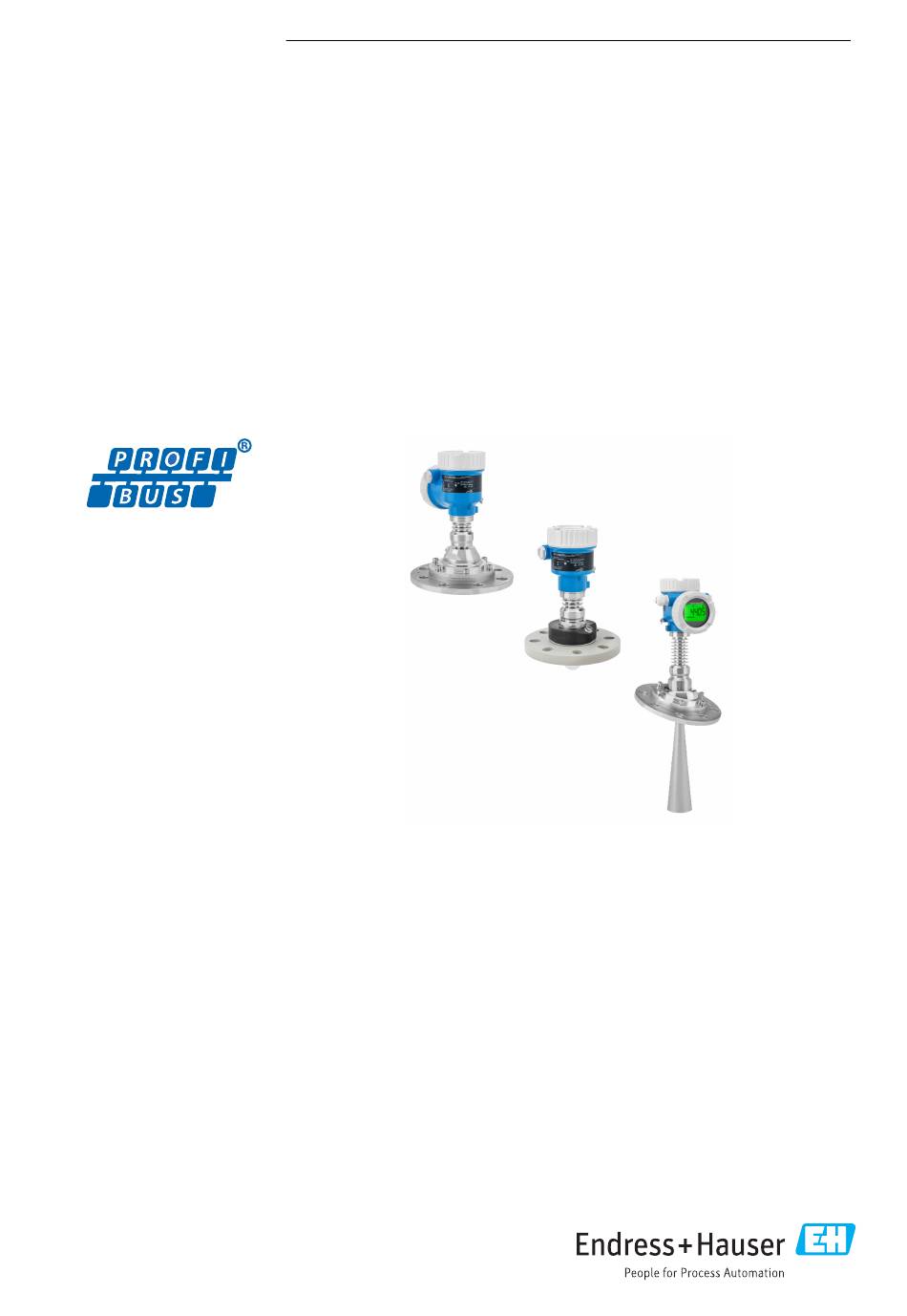

KA01610F/00/EN/02.23-00
71627294
2023-09-01
Products
Brief Operating Instructions

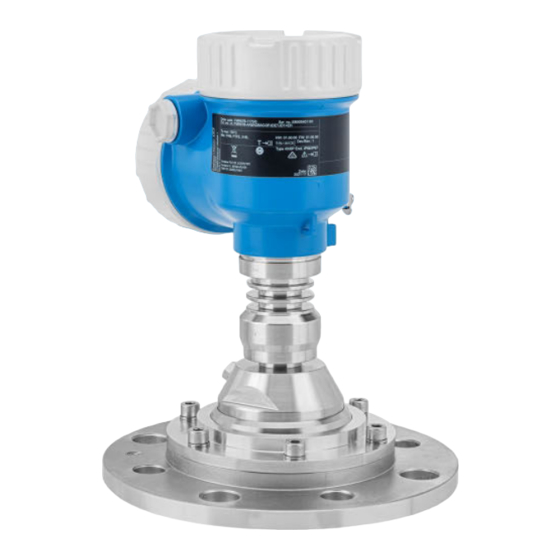

Micropilot FMR67B
PROFIBUS PA
Free space radar
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR67B

Summary of Contents for Endress+Hauser Micropilot FMR67B

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 Micropilot FMR67B PROFIBUS PA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Micropilot FMR67B PROFIBUS PA Table of contents Table of contents Symbols ................4 Safety symbols .

  • Page 4: Symbols

    Symbols Micropilot FMR67B PROFIBUS PA Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Requirements For Personnel

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...

  • Page 7: Incoming Acceptance

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.

  • Page 8: Manufacturer Address

    Storage and transport Micropilot FMR67B PROFIBUS PA • Firmware version, hardware version • Approval-related information, reference to Safety Instructions (XA) • DataMatrix code (information about the device) Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate.

  • Page 9: Mounting Requirements

    Micropilot FMR67B PROFIBUS PA Mounting Install the device or turn the housing so that the cable entries do not point upwards.  A0029263 Always firmly tighten the housing cover and the cable entries. Counter-tighten the cable entries. A drip loop must be provided when laying the cables.
  • Page 10 Mounting Micropilot FMR67B PROFIBUS PA Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. 10.2.2 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes.

  • Page 11: Mounting The Measuring Device

    Micropilot FMR67B PROFIBUS PA Mounting 10.2.5 Optimization options Mapping Measurement can be optimized by electronically suppressing interference echoes. See the Confirm distance parameter. 10.3 Mounting the measuring device 10.3.1 Horn antenna 65 mm (2.56 in) Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D.
  • Page 12 Mounting Micropilot FMR67B PROFIBUS PA A0048891  1 Horn antenna with alignment unit Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. The maximum nozzle length H depends on the nozzle diameter D D...
  • Page 13 Micropilot FMR67B PROFIBUS PA Mounting 10.3.3 Drip-off antenna PTFE 50 mm (2 in) Information concerning threaded connections • When screwing in, turn by the hex bolt only. • Tool: open-ended wrench 55 mm • Maximum permissible torque: 50 Nm (36 lbf ft)
  • Page 14 Mounting Micropilot FMR67B PROFIBUS PA Antenna nozzle mounting, flush mount 80 mm (3 in) ØD 80 to 100 mm (3.2 to 4 in) 1 750 mm (70 in) 100 to 150 mm (4 to 6 in) 2 200 mm (88 in) ≥...
  • Page 15 Micropilot FMR67B PROFIBUS PA Mounting The maximum length of the nozzle H depends on the nozzle diameter D D min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in) 100 to 150 mm (4 to 6 in) 1 800 mm (71 in) ≥...
  • Page 16 Mounting Micropilot FMR67B PROFIBUS PA Purge air connection • Tool: • Open-ended wrench 13 mm (G 1/4") • Open-ended wrench 14 mm (NPT) • Open-ended wrench 17 mm (NPT "adapter") • Min. torque: 6 Nm (4.4 lbf ft) • Max. torque: 7 Nm •...

  • Page 17: Post-Mounting Check

    Micropilot FMR67B PROFIBUS PA Mounting 10.3.8 Turning the display module WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the measuring device. 4 0.7 Nm A0038224 If fitted: release the screw of the cover lock for the electronics compartment cover using the Allen key.

  • Page 18: Electrical Connection

    Electrical connection Micropilot FMR67B PROFIBUS PA  Is the measuring device protected against precipitation and sunlight?  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •...
  • Page 19 Micropilot FMR67B PROFIBUS PA Electrical connection 0.7 Nm A0050983  5 Cover with securing screw; hygienic housing (only for dust explosion protection) 11.1.2 Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.

  • Page 20: Connecting The Device

    Electrical connection Micropilot FMR67B PROFIBUS PA 11.2 Connecting the device A0046659 Plastic single compartment housing Aluminum single compartment housing Single compartment housing, 316L hygiene Dual compartment housing Dual compartment housing, L-form Connection compartment cover Devices with a single compartment housing, 316L hygiene, and conduit gland must be connected as end-of-line devices.
  • Page 21 Micropilot FMR67B PROFIBUS PA Electrical connection 11.2.2 Cable specification Rated cross-section • Supply voltage 0.5 to 2.5 mm (20 to 13 AWG) • Protective earth or grounding of the cable shield > 1 mm (17 AWG) • External ground terminal 0.5 to 4 mm...
  • Page 22 Electrical connection Micropilot FMR67B PROFIBUS PA Overvoltage category Overvoltage category II 11.2.4 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs).
  • Page 23 Micropilot FMR67B PROFIBUS PA Electrical connection 11.2.5 Terminal assignment Single compartment housing A0042594  6 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 24 Electrical connection Micropilot FMR67B PROFIBUS PA Dual compartment housing A0042803  7 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 25 Micropilot FMR67B PROFIBUS PA Electrical connection Dual compartment housing, L-form A0045842  8 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.6 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...

  • Page 26: Ensuring The Degree Of Protection

    Electrical connection Micropilot FMR67B PROFIBUS PA The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.

  • Page 27: Operation

    The Heartbeat submenu is only available if operating via FieldCare, DeviceCare or the SmartBlue app. It contains the wizards that are available with the application packages Heartbeat Verification and Heartbeat Monitoring. Documentation on the Heartbeat Technology: Endress+Hauser website: www.endress.com → Downloads.

  • Page 28: Commissioning

    Commissioning Micropilot FMR67B PROFIBUS PA Commissioning All configuration tools provide a commissioning assistant that supports the user when setting the most important configuration parameters (Guidance menu Commissioning wizard). 13.1 Preliminaries The measuring range and the unit in which the measured value is transmitted correspond to the data on the nameplate.

  • Page 29: Setting The Operating Language

    Commissioning 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) 13.4 Setting the operating language 13.4.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: Press the ...

  • Page 30: Configuring The Device

    Commissioning Micropilot FMR67B PROFIBUS PA 13.5 Configuring the device 13.5.1 Level measurement in bulk solids 100% A0016934  9 Configuration parameters for level measurement in bulk solids Reference point of measurement Length of antenna + 10 mm (0.4 in) Distance Level "Empty calibration"...

  • Page 31: Recording The Echo Curve

    Micropilot FMR67B PROFIBUS PA Commissioning 13.6 Recording the Echo curve Record the current Echo curve as a reference echo curve for subsequent diagnostic purposes After the measurement has been configured, it is recommended to record the current Echo curve as a reference echo curve.
  • Page 32 *71627294* 71627294 www.addresses.endress.com...
