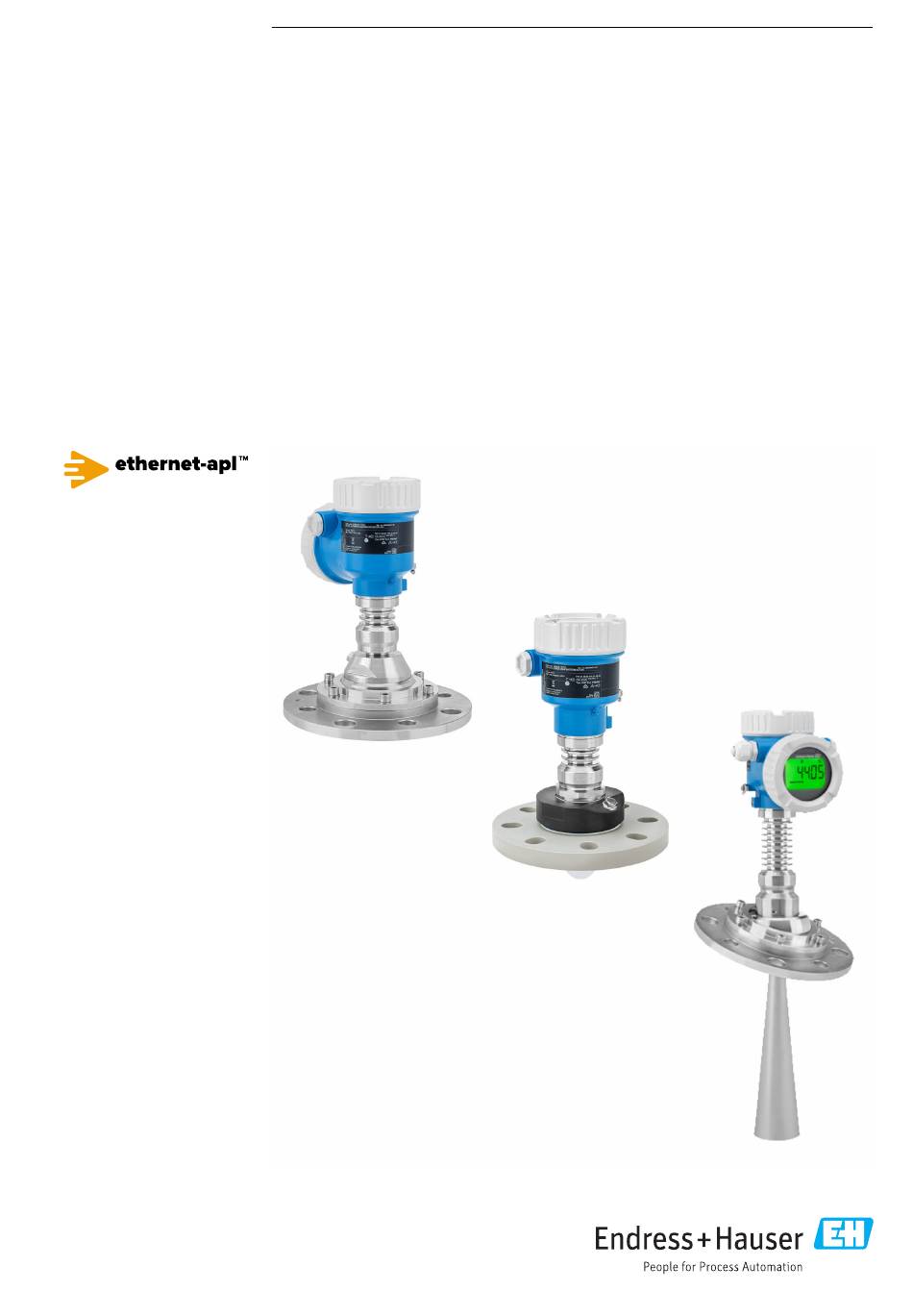

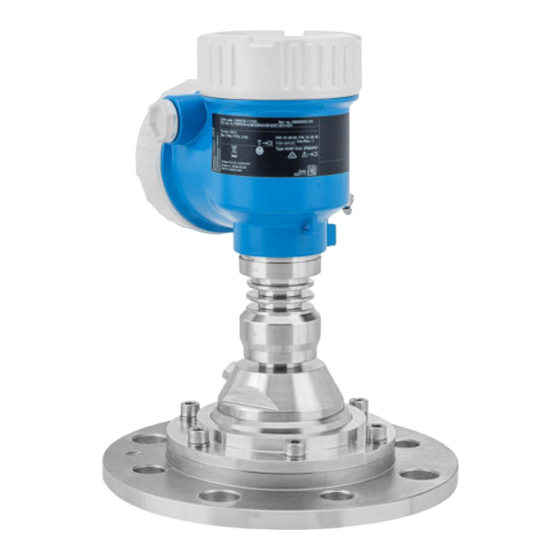

- Page 1 Products Solutions Services BA02270F/00/EN/01.23-00 71610089 2023-04-22 01.00.zz (Device firmware) Operating Instructions Micropilot FMR67B PROFINET with Ethernet-APL Free space radar advanced physical layer...
- Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...
-
Page 3: Table Of Contents
Micropilot FMR67B PROFINET with Ethernet-APL Table of contents Table of contents 5.3.4 Antenna, flush mount 80 mm (3 in) . About this document ....5 5.3.5... - Page 4 Table of contents Micropilot FMR67B PROFINET with Ethernet-APL 11.7 Event logbook ......58 System integration ....41 11.7.1 Event history .
-
Page 5: About This Document
Micropilot FMR67B PROFINET with Ethernet-APL About this document About this document Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Terms And Abbreviations
Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... - Page 7 Micropilot FMR67B PROFINET with Ethernet-APL About this document KALREZ®, VITON® Registered trademarks of DuPont Performance Elastomers L.L.C., Wilmington, DE USA Endress+Hauser...
-
Page 8: Basic Safety Instructions
Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 9: Workplace Safety
It meets the general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. -
Page 10: Protecting Access Via A Password
Basic safety instructions Micropilot FMR67B PROFINET with Ethernet-APL • Write protection via hardware write protection switch • Access code to change user role (applies to operation via display, Bluetooth or FieldCare, DeviceCare, asset management tools (e.g., AMS, PDM and Web server) - Page 11 Micropilot FMR67B PROFINET with Ethernet-APL Basic safety instructions Description of device parameters. Endress+Hauser...
-
Page 12: Product Description
Product description Micropilot FMR67B PROFINET with Ethernet-APL Product description Product design A0046665 1 Design of the Micropilot FMR67B Electronics housing DN65 horn antenna, with flange DN65 horn antenna, with UNI flange and alignment unit Drip-off antenna 50 mm (2 in), with flange; optional purge air connection Antenna flush mount, 80 mm (3 in), with flange;... -
Page 13: Incoming Acceptance And Product
All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate. All the information about the measuring device is displayed. -
Page 14: Manufacturer Address
Incoming acceptance and product identification Micropilot FMR67B PROFINET with Ethernet-APL 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. Storage and transport 4.3.1 Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks Storage temperature range See Technical Information. -
Page 15: Mounting
Micropilot FMR67B PROFINET with Ethernet-APL Mounting Mounting General instructions WARNING Loss of protection rating if the device is opened in a wet environment. ‣ Only open the device in a dry environment! 1. Install the device or turn the housing so that the cable entries do not point upwards. -
Page 16: Avoiding Interference Echoes
Mounting Micropilot FMR67B PROFINET with Ethernet-APL 5.2.2 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. 5.2.3 Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface. -
Page 17: Horn Antenna 65 Mm (2.56 In) With Alignment Unit
Micropilot FMR67B PROFINET with Ethernet-APL Mounting Maximum nozzle length H as a function of the nozzle diameter D D 80 to 100 mm (3.2 to 4 in) 1 700 mm (67 in) 100 to 150 mm (4 to 6 in) 2 100 mm (83 in) ≥... -
Page 18: Drip-Off Antenna Ptfe 50 Mm (2 In)
Mounting Micropilot FMR67B PROFINET with Ethernet-APL The maximum nozzle length H depends on the nozzle diameter D D 80 to 100 mm (3.2 to 4 in) 1 700 mm (67 in) 100 to 150 mm (4 to 6 in) 2 100 mm (83 in) ≥... -
Page 19: Antenna, Flush Mount 80 Mm (3 In)
Micropilot FMR67B PROFINET with Ethernet-APL Mounting 5.3.4 Antenna, flush mount 80 mm (3 in) Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. Antenna nozzle mounting, flush mount 80 mm (3 in) ØD 80 to 100 mm (3.2 to 4 in) -
Page 20: Purge Air Connection
Mounting Micropilot FMR67B PROFINET with Ethernet-APL The maximum length of the nozzle H depends on the nozzle diameter D D min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in) 100 to 150 mm (4 to 6 in) 1 800 mm (71 in) ≥... -
Page 21: Turning The Display Module
Micropilot FMR67B PROFINET with Ethernet-APL Mounting Your benefits • Easy installation due to optimum alignment of housing • Easily accessible device operation • Optimum readability of the local display (optional) A0046660 Plastic single compartment housing (no locking screw) Aluminum single compartment housing... -
Page 22: Changing The Installation Position Of The Display Module
Mounting Micropilot FMR67B PROFINET with Ethernet-APL 5.3.9 Changing the installation position of the display module The installation position of the display can be changed in the case of the dual compartment housing, L-form. A0048401 WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣... -
Page 23: Closing The Housing Covers
Micropilot FMR67B PROFINET with Ethernet-APL Mounting 7 → A0048406 A0046928 ‣ ‣ Plug in the connection for the Screw the display cover firmly display module in the back onto the housing. If fitted: connection compartment. tighten the screw of the cover ‣... -
Page 24: Electrical Connection
Electrical connection Micropilot FMR67B PROFINET with Ethernet-APL Electrical connection Connecting requirements 6.1.1 Cover with securing screw In the case of devices for use in the hazardous area with a certain type of protection, the cover is sealed by a securing screw. -
Page 25: Connecting The Device
Micropilot FMR67B PROFINET with Ethernet-APL Electrical connection A0046583 Single compartment housing, plastic Single compartment housing, aluminum Single compartment housing, 316L hygiene (Ex device) Dual compartment housing Dual compartment housing, L-form Ground terminal for connecting the potential matching line WARNING Explosion Hazard! ‣... -
Page 26: Cable Specification
Electrical connection Micropilot FMR67B PROFINET with Ethernet-APL 6.2.2 Cable specification Rated cross-section • Supply voltage 0.5 to 2.5 mm (20 to 13 AWG) • Protective earth or grounding of the cable shield > 1 mm (17 AWG) • External ground terminal 0.5 to 4 mm... -
Page 27: Wiring
Micropilot FMR67B PROFINET with Ethernet-APL Electrical connection Overvoltage category Overvoltage category II 6.2.4 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). -
Page 28: Terminal Assignment
Electrical connection Micropilot FMR67B PROFINET with Ethernet-APL 6.2.5 Terminal assignment Single compartment housing A0042594 7 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803 8 Connection terminals and ground terminal in the connection compartment... -
Page 29: Cable Entries
Micropilot FMR67B PROFINET with Ethernet-APL Electrical connection Dual compartment housing, L-form A0045842 9 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 6.2.6 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum... -
Page 30: Ensuring The Degree Of Protection
Electrical connection Micropilot FMR67B PROFINET with Ethernet-APL Devices with M12 plug A0011175 10 View of the plug-in connection on the device APL signal - APL signal + Shielding Not assigned Various M12 sockets are available as accessories for devices with M12 plugs. -
Page 31: Operation Options
• Operation via Bluetooth® wireless technology (with optional device display with Bluetooth) with SmartBlue app or FieldXpert, DeviceCare • Operation via Web server • Operation via operating tool (Endress+Hauser FieldCare/DeviceCare) or FDI Hosts (e.g., PDM) Operating keys and DIP switches on the electronic... -
Page 32: Access To Operating Menu Via Local Display
• Press and hold the keys simultaneously to return to the upper level 7.4.2 Operation via Bluetooth® wireless technology (optional) Prerequisite • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 Endress+Hauser... -
Page 33: Access To Operating Menu Via Web Browser
Micropilot FMR67B PROFINET with Ethernet-APL Operation options The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings. The operating keys on the display are locked as soon as the device is connected via Bluetooth. -
Page 34: Requirements
Operation options Micropilot FMR67B PROFINET with Ethernet-APL 7.5.2 Requirements Computer software Recommended operating systems • Microsoft Windows 7 or higher. • Mobile operating systems: • iOS • Android Microsoft Windows XP is supported. Web browsers supported • Microsoft Internet Explorer 8 or higher •... -
Page 35: Establishing A Connection
Micropilot FMR67B PROFINET with Ethernet-APL Operation options 7.5.3 Establishing a connection Via PROFINET with Ethernet-APL network A0046097 13 Options for remote operation via PROFINET with Ethernet-APL network: star topology Automation system, e.g., Simatic S7 (Siemens) Ethernet switch Computer with Web browser (e.g., Microsoft Edge) for accessing the integrated device Web server or computer with operating tool (e.g., FieldCare, DeviceCare, SIMATIC PDM) with iDTM Profinet Communication... -
Page 36: User Interface
Operation options Micropilot FMR67B PROFINET with Ethernet-APL A0046626 14 Web browser login Device tag Device name Status signal Locking status Current measured values Select the language Enter the "Password" parameter Login 1. Select the preferred Language parameter for the Web browser. -
Page 37: Disabling The Web Server
Micropilot FMR67B PROFINET with Ethernet-APL Operation options Header The following information appears in the header: • Device tag • Device name • Status signal • Locking status • Current measured values Navigation area If a function is selected in the function bar, the submenus of the function open in the navigation area. -
Page 38: Logging Out
Operation options Micropilot FMR67B PROFINET with Ethernet-APL Range of functions of "Web server functionality" parameter Option Description Disable • The Web server is completely disabled. • Port 80 is locked. Enable • The complete functionality of the Web server is available. -
Page 39: Connecting The Operating Tool
Micropilot FMR67B PROFINET with Ethernet-APL Operation options 7.6.1 Connecting the operating tool Via PROFINET with Ethernet-APL network A0046097 17 Options for remote operation via PROFINET with Ethernet-APL network: star topology Automation system, e.g., Simatic S7 (Siemens) Ethernet switch Computer with Web browser (e.g., Microsoft Edge) for accessing the integrated device Web server or computer with operating tool (e.g., FieldCare, DeviceCare, SIMATIC PDM) with iDTM Profinet Communication... -
Page 40: Fieldcare
7.8.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S... -
Page 41: System Integration
Micropilot FMR67B PROFINET with Ethernet-APL System integration System integration Overview of device description files 8.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the Operating Instructions • On the transmitter nameplate • System → Information → Firmware version Firmware version parameter release date 04.2023... -
Page 42: File Name Of The Device Master File (Gsd)
System integration Micropilot FMR67B PROFINET with Ethernet-APL 8.2.1 File name of the device master file (GSD) Example of the name of a device master file: GSDML-V2.43-EH-Micropilot-202304dd.xml (dd corresponds to the release day) GSDML Description language V2.43 Version of the PROFINET specification... -
Page 43: Cyclic Data Transmission
Micropilot FMR67B PROFINET with Ethernet-APL System integration Cyclic data transmission 8.3.1 Overview of the modules The following graphic shows which modules are available to the device for cyclic data exchange. Cyclic data exchange is performed with an automation system. Application → PROFINET → Analog input → Analog input 1 to 11 → Assign process... -
Page 44: Status Coding
System integration Micropilot FMR67B PROFINET with Ethernet-APL Module: Binary input The Binary input module can cyclically send discrete values from the device to the automation system. The status of the Heartbeat Verification is transmitted for the device: Module: Binary input Heartbeat Technology slot 80... -
Page 45: Startup Configuration
Micropilot FMR67B PROFINET with Ethernet-APL System integration 8.3.4 Startup configuration Startup configuration The automation system adopts the configuration of the most important parameters of the device. (NSU) • Interfaces: • Display operation • Web server functionality • Bluetooth activation • Service (UART-CDI) •... -
Page 46: Commissioning
Commissioning Micropilot FMR67B PROFINET with Ethernet-APL Commissioning All configuration tools provide a commissioning assistant that supports the user when setting the most important configuration parameters (Guidance menu Commissioning wizard). Preliminaries The measuring range and the unit in which the measured value is transmitted correspond to the data on the nameplate. -
Page 47: Via Service Interface (Cdi)
Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) 9.3.3 Hardware settings Setting the device name A measuring point can be quickly identified within a plant on the basis of the Device tag parameter and PROFINET device name parameter. -
Page 48: Configuring The Operating Language
Commissioning Micropilot FMR67B PROFINET with Ethernet-APL Configuring the operating language 9.4.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: 1. Press the key for at least 2 s. A dialog box appears. -
Page 49: Configuring The Device
Micropilot FMR67B PROFINET with Ethernet-APL Commissioning Configuring the device 9.5.1 Level measurement in bulk solids 100% A0016934 20 Configuration parameters for level measurement in bulk solids Reference point of measurement Length of antenna + 10 mm (0.4 in) Distance Level "Empty calibration"... -
Page 50: Simulation" Submenu
Commissioning Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics → Echo curve → Save reference curve ‣ Under the Save reference curve parameter, activate the Customer reference curve option "Simulation" submenu Simulation of a process variable, a pulse output or a diagnostic event. -
Page 51: Operation
Micropilot FMR67B PROFINET with Ethernet-APL Operation Operation 10.1 Reading off the device locking status Displaying active write protection: • In the Locking status parameter Menu path of local display: at the top operating level Menu path of operating tool: System → Device management •... -
Page 52: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.1 General troubleshooting 11.1.1 General errors Device is not responding • Possible cause: Supply voltage does not match the specification on the nameplate Remedial action: Apply the correct voltage •... -
Page 53: Diagnostic Message
Remedial action: The standard user name is "admin" and the password is the device serial number indicated on the device nameplate (only if the password was not changed by the user beforehand) If the password has been forgotten, contact Endress+Hauser Service (www.addresses.endress.com) Connection via SmartBlue not possible •... -
Page 54: Diagnostic Information On Local
Diagnostics and troubleshooting Micropilot FMR67B PROFINET with Ethernet-APL 11.3.1 Diagnostic information on local display A0043759 22 Segment display without keys Status symbol for event level Status signal with diagnostic event X X X X X X X S801 X X X X X X X A0043103 ... -
Page 55: Diagnostic Event And Event Text
Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.3.4 Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the associated status symbol is displayed in front of the diagnostic event. -
Page 56: Operating Menu
Diagnostics and troubleshooting Micropilot FMR67B PROFINET with Ethernet-APL 2 → Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2 Diagnostics 3 A0051132 ‣ Select the diagnostic event and confirm Supply voltage (ID:203) S801 0d00h02m25s Increase supply voltage A0051133 ‣ Remedy informationClosing 11.4.2... - Page 57 Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Build-up detected Check process conditions Warning Diagnostic of electronic Real time clock Replace main electronics Warning...
-
Page 58: Event Logbook
Diagnostics and troubleshooting Micropilot FMR67B PROFINET with Ethernet-APL Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Record map Recording of mapping Warning please wait Diagnostic of process Supply voltage too low Increase supply voltage... -
Page 59: Filtering The Event Logbook
Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics and troubleshooting 11.7.2 Filtering the event logbook Filters can be used to determine which category of event messages is displayed in the Event list submenu. Navigation: Diagnostics → Event logbook Filter categories • All •... -
Page 60: Resetting The Device
Diagnostics and troubleshooting Micropilot FMR67B PROFINET with Ethernet-APL Info number Info name I1666 Clock synchronized I1712 New flash file received I1956 Reset 11.8 Resetting the device 11.8.1 Reset password via operating tool Enter a code to reset the current ' M aintenance' password. -
Page 61: Device Information
Micropilot FMR67B PROFINET with Ethernet-APL Diagnostics and troubleshooting Resetting the device to the factory setting 12 s Display 50 ms A0050015 25 Sequence - Factory setting Reset the device to the factory setting ‣ Press operating key I for at least 12 s. -
Page 62: Maintenance
Maintenance Micropilot FMR67B PROFINET with Ethernet-APL Maintenance No special maintenance work is required. 12.1 Exterior cleaning Notes on cleaning • The cleaning agents used should not corrode the surfaces and the seals • Observe the degree of protection of the device 12.2... -
Page 63: Repair
Repair concept Endress+Hauser repair concept • The devices have a modular design • Repairs can be carried out by Endress+Hauser Service or by appropriately trained customers • Spare parts are grouped into logical kits with the associated replacement instructions For more information on service and spare parts, please contact your Endress+Hauser sales representative. -
Page 64: Historom
Repair Micropilot FMR67B PROFINET with Ethernet-APL 13.3.1 HistoROM It is not necessary to perform a new device calibration after replacing the display or transmitter electronics. The spare part is supplied without HistoROM. After removing the transmitter electronics, remove HistoRom and insert it into the new spare part. -
Page 65: Accessories
Micropilot FMR67B PROFINET with Ethernet-APL Accessories Accessories 14.1 Weather protection cover 316L The weather protection cover can be ordered together with the device via the "Accessory enclosed" product structure. It is used to protect against direct sunlight, precipitation and ice. -
Page 66: Adjustable Flange Seal
Accessories Micropilot FMR67B PROFINET with Ethernet-APL Material Plastic Order number for accessories: 71438291 14.3 Adjustable flange seal The adjustable flange seal is used to align the sensor to the surface of the product. It can be ordered directly with the device via the product structure "Accessory enclosed" or individually via the specific order number. -
Page 67: Seal, Adjustable, Dn150
Micropilot FMR67B PROFINET with Ethernet-APL Accessories Technical data • Material: EPDM • Recommended screw size: M14 • Recommended screw length: 100 mm (3.9 in) • Process pressure: –0.1 to 0.1 bar (–1.45 to 1.45 psi) • Process temperature: –40 to +80 °C (–40 to +176 °F) Ordering information •... -
Page 68: Seal, Adjustable, Asme 4
Accessories Micropilot FMR67B PROFINET with Ethernet-APL Technical data • Material: EPDM • Recommended screw size: M14 • Recommended screw length: 100 mm (3.9 in) • Process pressure: –0.1 to 0.1 bar (–1.45 to 1.45 psi) • Process temperature: –40 to +80 °C (–40 to +176 °F) Ordering information •... -
Page 69: M12 Socket
Micropilot FMR67B PROFINET with Ethernet-APL Accessories Technical data • Material: EPDM • Recommended screw size: M18 • Recommended screw length: 100 mm (3.9 in) • Process pressure: –0.1 to 0.1 bar (–1.45 to 1.45 psi) • Process temperature: –40 to +80 °C (–40 to +176 °F) Ordering information •... -
Page 70: Remote Display Fhx50B
Accessories Micropilot FMR67B PROFINET with Ethernet-APL A0051233 30 M12 socket, angled, cable M12 socket, angled, 5 m (16 ft) cable • M12 socket material: • Body: TPU • Union nut: nickel-plated die-cast zinc • Cable material: • Cable Li Y YM 4×0.34 mm (20 AWG) •... - Page 71 Micropilot FMR67B PROFINET with Ethernet-APL Accessories A0046692 Plastic single compartment housing, remote display Aluminum single compartment housing, remote display Single compartment housing, 316L hygiene, remote display Device side, plastic single compartment housing prepared for display FHX50B Device side, aluminum single compartment housing prepared for display FHX50B...
-
Page 72: Gas-Tight Feedthrough
Accessories Micropilot FMR67B PROFINET with Ethernet-APL 14.6 Gas-tight feedthrough Chemically inert glass feedthrough, which prevents gases from entering the electronics housing. Can optionally be ordered as "Accessory mounted" via the product structure. 14.7 Field Xpert SMT70 Universal, high-performance tablet PC for device configuration in Ex Zone 2 and non-Ex areas For details, see "Technical Information"... -
Page 73: Technical Data
Micropilot FMR67B PROFINET with Ethernet-APL Technical data Technical data 15.1 Input Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on "E", the empty distance entered. Measuring range The start of the measuring range is the point where the beam hits the floor. -
Page 74: Output
For the dielectric constants (DC values) of many media commonly used in industry, please refer to: • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) Operating frequency Approx. 80 GHz Up to 8 devices can be installed in a tank without the devices mutually influencing one another. -
Page 75: Environment
Micropilot FMR67B PROFINET with Ethernet-APL Technical data Media Redundancy Protocol (MRP) System redundancy support System redundancy S2 (2 AR with 1 NAP) Device profile Application interface identifier 0xB321 Generic device Manufacturer ID 0x11 Device type ID 0xA1C1 Device description files (GSD,... - Page 76 Technical data Micropilot FMR67B PROFINET with Ethernet-APL Ambient temperature limits The permitted ambient temperature (T ) depends on the selected housing material (Product Configurator → Housing; Material →) and the selected process temperature range (Product Configurator → Application →). In the event of temperature (T...
- Page 77 Micropilot FMR67B PROFINET with Ethernet-APL Technical data Plastic housing; process temperature –40 to +150 °C (–40 to +302 °F) A0032024 33 Plastic housing; process temperature –40 to +150 °C (–40 to +302 °F) = T : –40 °C (–40 °F) | T : +76 °C (+169 °F)
- Page 78 Technical data Micropilot FMR67B PROFINET with Ethernet-APL Restriction to a process temperature of 0 to +200 °C (+32 to +392 °F) with CSA C/US approval and plastic housing A0048826 36 Plastic housing; process temperature 0 to +200 °C (+32 to +392 °F) with CSA C/US approval = T...
- Page 79 Micropilot FMR67B PROFINET with Ethernet-APL Technical data Plastic housing; process temperature –40 to +450 °C (–40 to +842 °F) A0032024 39 Plastic housing; process temperature –40 to +450 °C (–40 to +842 °F) = T : –40 °C (–40 °F) | T : +76 °C (+169 °F)
- Page 80 Technical data Micropilot FMR67B PROFINET with Ethernet-APL Aluminum housing; process temperature –40 to +150 °C (–40 to +302 °F) A0032024 42 Aluminum housing, coated; process temperature –40 to +150 °C (–40 to +302 °F) = T : –40 °C (–40 °F) | T : +79 °C (+174 °F)
- Page 81 Micropilot FMR67B PROFINET with Ethernet-APL Technical data Aluminum housing; process temperature –40 to +450 °C (–40 to +842 °F) A0032024 45 Aluminum housing, coated; process temperature –40 to +450 °C (–40 to +842 °F) = T : –40 °C (–40 °F) | T : +79 °C (+174 °F)
- Page 82 Technical data Micropilot FMR67B PROFINET with Ethernet-APL 316L housing; process temperature –40 to +200 °C (–40 to +392 °F) A0032024 48 316L housing; process temperature –40 to +200 °C (–40 to +392 °F) = T : –40 °C (–40 °F) | T : +77 °C (+171 °F)
- Page 83 Micropilot FMR67B PROFINET with Ethernet-APL Technical data 316L housing, hygiene 316L housing, hygiene; process temperature –40 to +80 °C (–40 to +176 °F) A0032024 51 316L housing, hygiene; process temperature –40 to +80 °C (–40 to +176 °F) = T : –40 °C (–40 °F) | ...
- Page 84 Technical data Micropilot FMR67B PROFINET with Ethernet-APL Installation height as per Generally up to 5 000 m (16 404 ft) above sea level IEC61010-1 Ed.3 Degree of protection Test as per IEC 60529 and NEMA 250-2014 Housing IP66/68, NEMA TYPE 4X/6P IP68 test condition: 1.83 m under water for 24 hours.
-
Page 85: Process
Micropilot FMR67B PROFINET with Ethernet-APL Technical data 15.4 Process Process pressure range WARNING The maximum pressure for the device depends on the lowest-rated component with regard to pressure (components are: process connection, optional mounted parts or accessories). ‣ Only operate the device within the specified limits for the components! ‣... - Page 86 –1 to 1 bar (–14.5 to 14.5 psi) A0047830 The pressure range may be further restricted in the event of a CRN approval. Dielectric constant For bulk solids ε ≥ 1.6 Contact Endress+Hauser for applications with lower dielectric constants than indicated. Endress+Hauser...
-
Page 87: Index
Micropilot FMR67B PROFINET with Ethernet-APL Index Index Symbols "Device ID" parameter ......41 Media ........8 "Device revision"... - Page 88 *71610089* 71610089 www.addresses.endress.com...
