KA01591F/00/EN/01.22-00
71575928
2022-08-01
Products
Brief Operating Instructions

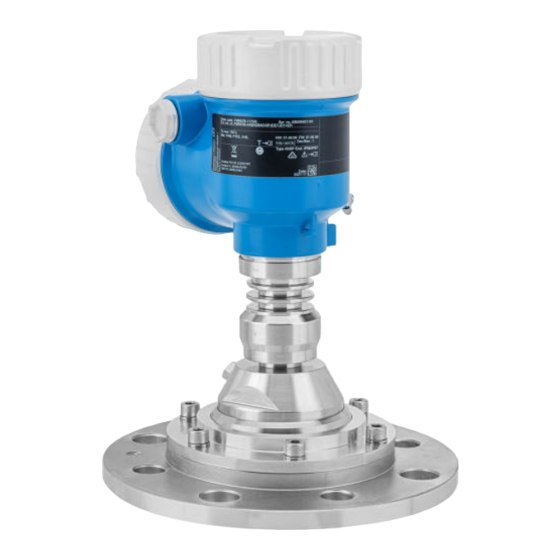

Micropilot FMR67B
Free space radar
HART
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR67B

Summary of Contents for Endress+Hauser Micropilot FMR67B

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 Micropilot FMR67B HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Micropilot FMR67B HART Table of contents Table of contents Symbols ................4 Safety symbols .

  • Page 4: Symbols

    Symbols Micropilot FMR67B HART Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Requirements For Personnel

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...

  • Page 7: Incoming Acceptance

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.

  • Page 8: Manufacturer Address

    Storage and transport Micropilot FMR67B HART • Firmware version, hardware version • Approval-related information, reference to Safety Instructions (XA) • DataMatrix code (information about the device) Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate.

  • Page 9: Mounting Requirements

    Micropilot FMR67B HART Installation Install the device or turn the housing so that the cable entries do not point upwards.  A0029263 Always firmly tighten the housing cover and the cable entries. Counter-tighten the cable entries. A drip loop must be provided when laying the cables.
  • Page 10 Installation Micropilot FMR67B HART Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. 10.2.2 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes.

  • Page 11: Mounting The Measuring Device

    Micropilot FMR67B HART Installation 10.2.5 Optimization options Mapping Measurement can be optimized by electronically suppressing interference echoes. See the Confirm distance parameter. 10.3 Mounting the measuring device 10.3.1 Horn antenna 65 mm (2.56 in) Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D.
  • Page 12 Installation Micropilot FMR67B HART A0048891  1 Horn antenna with alignment unit Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D. The maximum nozzle length H depends on the nozzle diameter D D 80 to 100 mm (3.2 to 4 in)
  • Page 13 Micropilot FMR67B HART Installation 10.3.3 Drip-off antenna PTFE 50 mm (2 in) Information concerning threaded connections • When screwing in, turn by the hex bolt only. • Tool: open-ended wrench 55 mm • Maximum permissible torque: 50 Nm (36 lbf ft)
  • Page 14 Installation Micropilot FMR67B HART Antenna nozzle mounting, flush mount 80 mm (3 in) ØD 80 to 100 mm (3.2 to 4 in) 1 750 mm (70 in) 100 to 150 mm (4 to 6 in) 2 200 mm (88 in) ≥...
  • Page 15 Micropilot FMR67B HART Installation The maximum length of the nozzle H depends on the nozzle diameter D D min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in) 100 to 150 mm (4 to 6 in) 1 800 mm (71 in) ≥...
  • Page 16 Installation Micropilot FMR67B HART Purge air connection • Tool: • Open-ended wrench 13 mm (G 1/4") • Open-ended wrench 14 mm (NPT) • Open-ended wrench 17 mm (NPT "adapter") • Min. torque: 6 Nm (4.4 lbf ft) • Max. torque: 7 Nm •...

  • Page 17: Post-Mounting Check

    Micropilot FMR67B HART Installation 10.3.8 Turning the display module WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the measuring device. 4 0.7 Nm A0038224 If fitted: release the screw of the cover lock for the electronics compartment cover using the Allen key.

  • Page 18: Electrical Connection

    Electrical connection Micropilot FMR67B HART  Is the measuring device protected against precipitation and sunlight?  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •...

  • Page 19: Connecting The Device

    Micropilot FMR67B HART Electrical connection A0046583 Single compartment housing, plastic Single compartment housing, aluminum Dual compartment housing Dual compartment housing, L-form Ground terminal for connecting the potential matching line WARNING Explosion Hazard! ‣ Please refer to the separate documentation on applications in hazardous areas for the safety instructions.
  • Page 20 Electrical connection Micropilot FMR67B HART 11.2.1 Supply voltage The supply voltage depends on the selected type of device approval Non-hazardous, Ex d, Ex e 10.5 to 35 V Ex i 10.5 to 30 V Nominal current 4 to 20 mA The power unit must be tested to ensure it meets safety requirements (e.g., PELV, SELV,...
  • Page 21 The overvoltage protection can optionally be ordered as a "Mounted accessory" via the product structure Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...
  • Page 22 Electrical connection Micropilot FMR67B HART 11.2.5 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). The specified cable gland must be used.
  • Page 23 Micropilot FMR67B HART Electrical connection 11.2.6 Terminal assignment Single compartment housing A0042594  6 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 24 Electrical connection Micropilot FMR67B HART Dual compartment housing A0042803  7 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 25 Micropilot FMR67B HART Electrical connection Dual compartment housing, L-form A0045842  8 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.7 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...

  • Page 26: Ensuring The Degree Of Protection

    Electrical connection Micropilot FMR67B HART The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.

  • Page 27: Operation Options

    (e.g. FieldCare/DeviceCare). 12.3 Structure and function of the operating menu The differences between the structure of the operating menus of the local display and the Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows: Endress+Hauser...

  • Page 28: Access To The Operating Menu Via The Local Display

    Operation options Micropilot FMR67B HART The local display is suitable for configuring simple applications. The operating tools (FieldCare, DeviceCare, SmartBlue, AMS, PDM, ...) can be used to configure the parameters of wide-ranging applications. Wizards help the user to commission the various applications. The user is guided through the individual configuration steps.
  • Page 29 Requirement • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The range of the connection is up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.

  • Page 30: Access To The Operating Menu Via The Operating Tool

    12.6.1 Function scope Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs), DeviceCare presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S 12.7...

  • Page 31: Commissioning

    Micropilot FMR67B HART Commissioning Access is via: • CDI service interface • HART communication Typical functions: • Parameterization of transmitters • Loading and saving of device data (upload/download) • Documentation of the measuring point • Visualization of the measured value memory (line recorder) and event logbook...

  • Page 32: Establishing A Connection Via Fieldcare And Devicecare

    Commubox FXA195 (USB) Field Xpert SMT70 Bluetooth modem with connecting cable (e.g., VIATOR) Transmitter 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...

  • Page 33: Configuring The Device Address Via Software

    Micropilot FMR67B HART Commissioning 13.4 Configuring the device address via software See "HART address" parameter Enter the address to exchange data via the HART protocol. • Guidance → Commissioning → HART address • Application → HART output → Configuration → HART address 13.5...

  • Page 34: Device Configuration

    Commissioning Micropilot FMR67B HART 13.6 Device configuration 13.6.1 Level measurement in bulk solids 100% A0016934  12 Configuration parameters for level measurement in bulk solids Reference point of measurement Distance Level "Empty calibration" parameter (= 0%) "Full calibration" parameter (= 100%) 13.6.2...
  • Page 36 *71575928* 71575928 www.addresses.endress.com...
