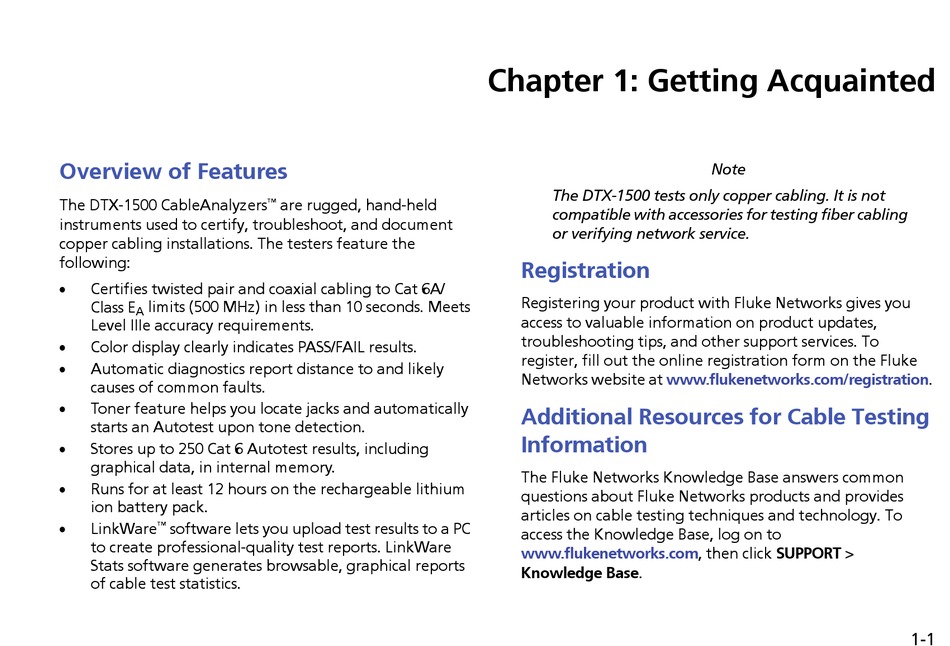

Overview of Features

The DTX-1500 CableAnalyzers
instruments used to certify, troubleshoot, and document
copper cabling installations. The testers feature the
following:

Certifies twisted pair and coaxial cabling to Cat 6A/
Class E limits (500 MHz) in less than 10 seconds. Meets
A
Level IIIe accuracy requirements.

Color display clearly indicates PASS/FAIL results.

Automatic diagnostics report distance to and likely
causes of common faults.

Toner feature helps you locate jacks and automatically
starts an Autotest upon tone detection.

Stores up to 250 Cat 6 Autotest results, including
graphical data, in internal memory.

Runs for at least 12 hours on the rechargeable lithium
ion battery pack.

LinkWare ™ software lets you upload test results to a PC
to create professional-quality test reports. LinkWare
Stats software generates browsable, graphical reports
of cable test statistics.
™ are rugged, hand-held
Chapter 1: Getting Acquainted
The DTX-1500 tests only copper cabling. It is not
compatible with accessories for testing fiber cabling
or verifying network service.

Registration

Registering your product with Fluke Networks gives you
access to valuable information on product updates,
troubleshooting tips, and other support services. To
register, fill out the online registration form on the Fluke
Networks website at www.flukenetworks.com/registration.
Additional Resources for Cable Testing
Information
The Fluke Networks Knowledge Base answers common
questions about Fluke Networks products and provides
articles on cable testing techniques and technology. To
access the Knowledge Base, log on to
www.flukenetworks.com, then click SUPPORT >
Knowledge Base.
Note
1-1
