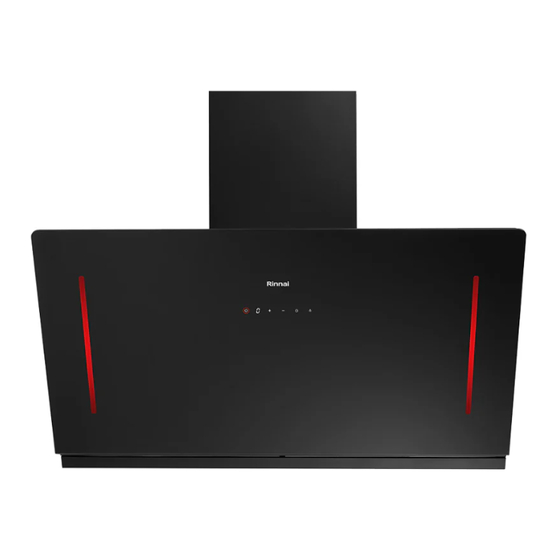

- Page 1 RH-KT2959-GBV Slant Hood Operation/ Installation Manual...
-
Page 2: Table Of Contents
Page 16 Installation Instructions Page 17 To register your product warranty, please paste the serial number stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai After Sales Service Center should you require further assistance. Version 2022.10... -
Page 3: Intended Use
Intended Use Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass them on to future user. This appliance can only be used safely if it is correctly installed according to the safety instructions. -
Page 4: Safety Information
Safety Information Warning – Suffocation Packaging material is dangerous to children. Never allow children to play with packaging material. Warning – Risk of Fire Do not operate the extractor without a grease filter. It is important to clean and/or replace the ... - Page 5 personnel’s only. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center for assistance. It is dangerous to modify any part of this appliance. Tampering with electrical connections or ...
-
Page 6: Environmental Protection
Environmental Protection Energy Saving During cooking ensure that there is a sufficient supply of air to enable the extractor hood to work efficiently and with a low level of operating noise. Adjust the fan speed to the amount of cooking vapor produced during cooking. Only use ... -
Page 7: Operating Instructions
POWER ON/OFF: Touch this symbol to switch the extractor hood to the ON or OFF position. When the extractor hood is switch to ON position, all the symbol backlights on the control panel, Rinnai logo and the decorative lights will light up at the same time including the numerical 0 on the display window. - Page 8 Touch this symbol to control the LED lights and Decorative lights setting Note: This function operates independently from the fan settings LED Light Setting: Touch the lamp symbol once to turn ON and OFF the LED lights. DECORATIVE Light Setting: Hold the lamp symbol for 2 seconds to enter setting mode to change the preset lighting program After entering setting mode alphabet “A.”...
- Page 9 To set up clean and fresh function after cooking, set the fan increase/decrease symbol to 0 on the display window. Turn OFF the LED light panel by touching and holding the light symbol for approximately 1 second. Touch and hold the timer symbol for approximately 3 seconds.
-
Page 10: Care And Maintenance
Care and Maintenance Warning: Before carrying out any cleaning or maintenance activities, ensure that the appliance is disconnected from the main power supply. Components inside the appliance may have sharp edges. Wear protective gloves. Cleaning Agents To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. - Page 11 Metal Grease Filter Warning: It is important to regularly clean and/or replace the metal grease filters at appropriate intervals as grease deposits build-up increases the risk of fire. Do not operate the extractor hood without any grease filters installed. Components inside the appliance may have sharp edges. It is advisable that you wear protective gloves.
- Page 12 Dismantling the Two Piece Metal Grease Filters (Fig.2, Fig.2a) To dismantle, hold the metal grease filter down and slide the top piece metal grease filter out. Remove the grease filter components and separate the inner and outer grease filter (Fig. 1) Fig.
- Page 13 Installing the Metal Grease Filter Insert back the metal grease filter and lock it in place, at the same time take hold of the grease filter from underneath using your other hand to insert into the grease filter holder, make sure the grease filter is positioned correctly.
-
Page 14: Trouble Shooting
Incorrect repairs are dangerous. Repairs should be attempted by our qualified technical personnel’s only. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact your local Rinnai After Sales Service Center for assistance. - Page 15 If problem persists after the above checks, please contact your local Rinnai After Sales Service Center for assistance. Please quote the model number of your appliance as shown on the rating plate. (Fig. 4) For service calls under warranty, please note that it is necessary to produce your proof of purchase and valid warranty card.
-
Page 16: Specification And Component List
Specification Model: RH‐KT2959‐GBV Power Rating: 270W Voltage: 220‐240V~ Power Frequency: 50/60Hz Power of Lamps: (8W Led strip + 2 x 1W Decorative light) Length of the cable: 1.5m Appliance 898 x 490 x 970 ‐ 1450mm Dimensions: (W x D x H) *The manufacturer reserves the right to effect any technological improvement or modification without prior notice. -
Page 17: Installation Instructions
Installation Instructions Safety and General Information Read these instructions carefully. Check the appliance for damage after unpacking it. • • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correctly at its installation location. - Page 18 Fig. 5 Warning Components inside the appliance may have sharp edges. Wear protective gloves. The extractor hood may fall down if it has not been properly fastened in place. All fastening components must be fixed firmly and securely. The extractor hood is heavy. To move the appliance 2 people are required. Use only ...
- Page 19 Preparing the Installation Ensure that there are no electrical wires, gas pipes or water pipes in the area where holes are to be drilled. Step 1 (Fig. 6) Determine where the extractor hood should be positioned and lightly mark where the lower edge of the appliance should be on the wall.
- Page 20 Fig. 7. 1 Tighten the screws 3, 4, 5, 6 firmly after realignment. (Fig. 7. 2) Fig. 7. 2 Fig.7.1...
