Chapter 5 – URL Categorization
3.
Enter your URL License Key.
•
Go to Administration > License Key.
•
Click the Open button for the URL Categorization License Key.

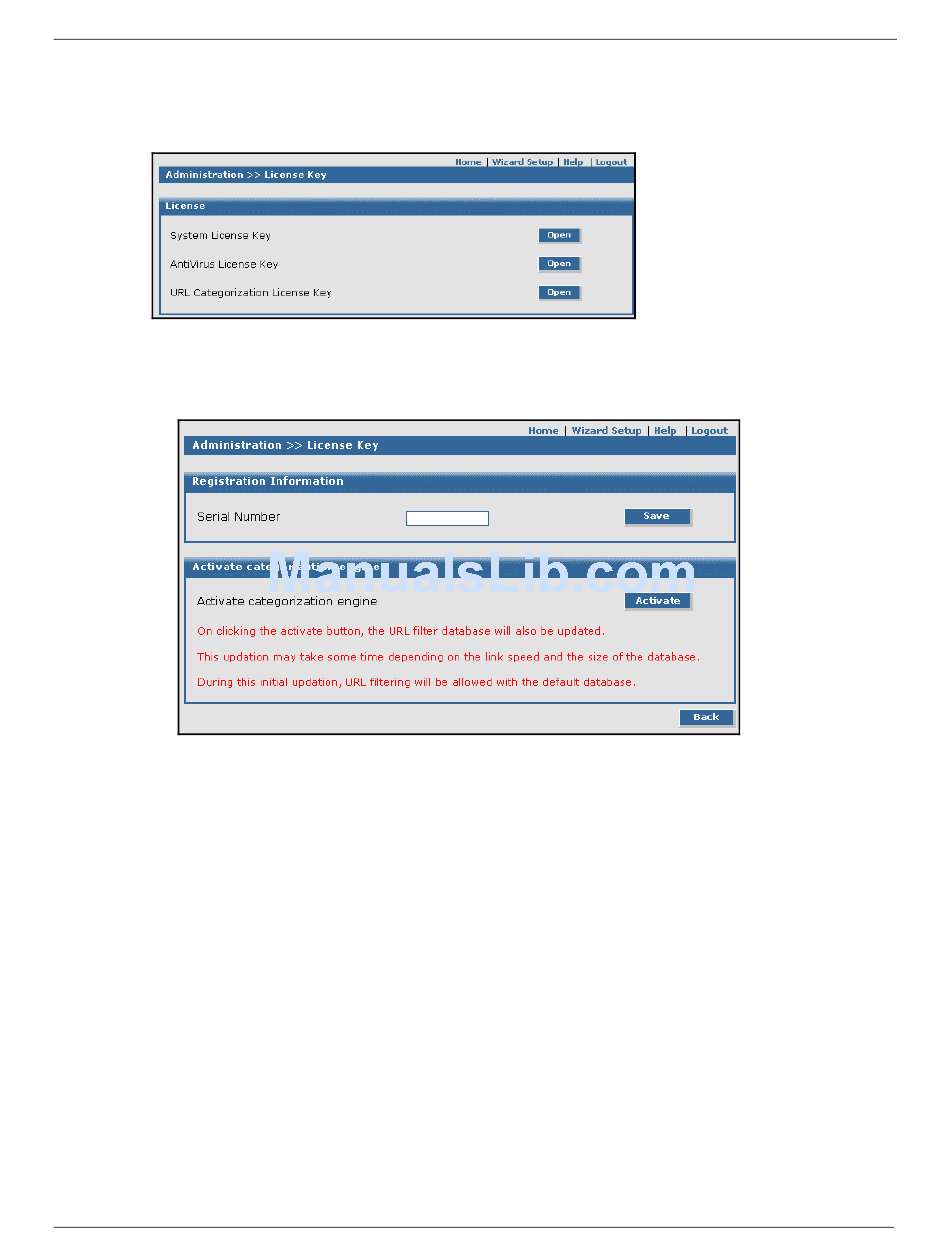

The Administration > License Key > URL Categorization screen displays. This screen shows that a
license number has been entered previously. If no license has been entered, there will be a text box in
which to enter the number.
IMPORTANT:
•
Using upper case letters, enter the 11-digit serial number of the URL License Key and click the Save
button.
•
Click the Activate button. The categorization engine's expiration date and time display.
4.
Return to the Proxy > HTTP Proxy screen. See the screen on the previous page.
•
Check the Transparent box and click Save.
•
Check the URL Filter box and click Save.
•
Click Edit for URL Categories (Allowed/Filtered). Not shown on the screen above.
26
It is important that the serial number be entered in upper case.
Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)
