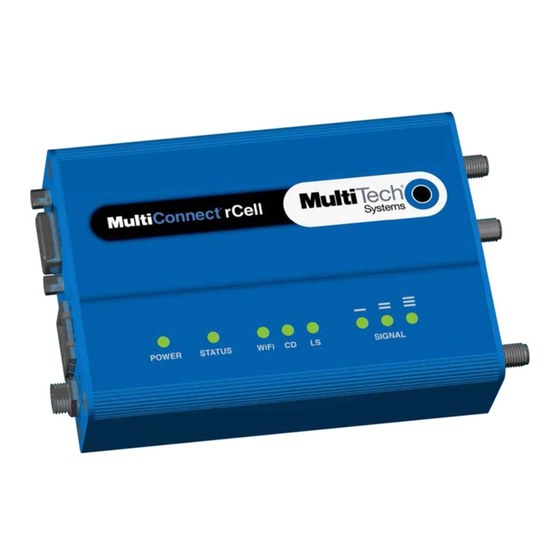

Multitech MultiConnect rCell 100 Series User Manual
Hide thumbs
Also See for MultiConnect rCell 100 Series:
- Quick start manual ,
- User manual (104 pages) ,
- Configuration manual (38 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Multitech MultiConnect rCell 100 Series
Summary of Contents for Multitech MultiConnect rCell 100 Series
- Page 1 ® MultiConnect rCell 100 Series Router User Guide...
- Page 2 Contacting Multi-Tech Knowledge Base The Knowledge Base provides immediate access to support information and resolutions for all Multi-Tech products. Visit http://www.multitech.com/kb.go. Support Portal To create an account and submit a support case directly to our technical support team, visit: https://support.multitech.com.
-
Page 3: Table Of Contents
CONTENTS Contents Product Overview ..............................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Product Build Options ..............................6 Descriptions of LEDs..............................7 Side Panels ..................................8 Ethernet LED Descriptions ............................9 Specifications ................................9 Dimensions.................................. 11 Label locations ................................11 Power Draw ................................ - Page 4 CONTENTS Installing the SIM Card ............................... 20 Setting up Wi-Fi................................21 Resetting the Device ..............................21 Resetting the Device to Factory Defaults ........................21 Notice for Devices that Use Aeris Radios........................21 Regulatory Information............................22 47 CFR Part 15 Regulation Class B Devices ......................... 22 Industry Canada Class B Notice...........................
-
Page 5: Product Overview
About MultiConnect rCell 100 Series Router This guide describes the MultiConnect rCell 100 Series router. The rCell family of routers is carrier approved and ready-to-deploy. You can use your device to provide secure data communication between many types of devices that use legacy as well as the latest communication technologies. -
Page 6: Product Build Options
PRODUCT OVERVIEW Document Description AT Commands This document describes AT commands that are available for your device. These commands are documented in the Reference Guide part number S000574. Product Build Options Product Description MTR-H5-B07 Supports HSPA+ MTR-H5-B08 Supports HSPA+ and GPS MTR-H5-B09 Supports HSPA+, Wi-Fi, and Bluetooth MTR-H5-B10... -
Page 7: Descriptions Of Leds
PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: ■ Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. ■ Wi-Fi—Indicates if the device is serving as a Wi-Fi access point or acting as a Wi-Fi client. Not all models support Wi-Fi. -
Page 8: Side Panels
PRODUCT OVERVIEW Side Panels The device has connectors on either side. The figure that follows shows the side which has a SIM card holder, as well as Wi-Fi, Auxiliary, GPS and cellular antenna connectors. It also has a reset button. Depending on the model of your device, the following items may or may not appear: ■... -
Page 9: Ethernet Led Descriptions
PRODUCT OVERVIEW Ethernet LED Descriptions Two Ethernet LEDs are physically on the RJ-45 connector(s). The table that follows describes these LEDs. Ethernet Link Right LED on Ethernet connector. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is a valid Ethernet connection. - Page 10 PRODUCT OVERVIEW Category Description Packet Data Up to 7.2 Mbps downlink/5.76 Mbps uplink Point-to-Point Messaging Mobile-Terminated SMS Mobile-Originated SMS Connectors Cellular Female SMA connectors for cellular WiFi Reverse polarity male SMA connector for Wi-Fi SIM Holder Mini-SIM, standard 1.8 V and 3 V SIM receptacle Female SMA connector Power Requirements Voltage...
-
Page 11: Dimensions
PRODUCT OVERVIEW Category Description Warranty Two years *UL Listed @ 40° C, limited by power supply. UL Certification does not apply or extend to an ambient above 40° C and has not been evaluated by UL for ambient greater than 40° C. UL has evaluated this device for use in ordinary locations only. - Page 12 PRODUCT OVERVIEW ® MultiConnect rCell 100 Series Router User Guide...
-
Page 13: Power Draw
PRODUCT OVERVIEW Power Draw GPRS Typical Maximum Peak TX Peak Rst (Inrush Current) 7 volts 0.305A, 2.14W 0.495A, 3.47W 1.74A 2.30A 9 volts 0.230A, 2.12W 0.332, 3.05W 1.28A 4.12A 20 volts 0.111A, 2.22W 0.164A, 3.28W .520A 3.03A 32 volts 0.075A, 2.40W 0.112A, 3.58W 0.337A 2.50A... -
Page 14: Safety Warnings
SAFETY WARNINGS Safety Warnings Lithium Battery ■ A lithium battery located within the product provides backup power for the timekeeping. This battery has an estimated life expectancy of ten years. ■ When this battery starts to weaken, the date and time may be incorrect. If the battery fails, the board must be sent back to Multi-Tech Systems for battery replacement. -
Page 15: Precautions For Pacemaker Wearers
SAFETY WARNINGS pacemakers and defibrillators from cellular devices. This test method is part of the Association for the Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI. The FDA continues to monitor cellular devices for interactions with other medical devices. -
Page 16: Avertissements Relatifs À L'installation Et Aux Emplacements Dangereux
SAFETY WARNINGS “CAUTION: – Risk of Explosion if Battery is replaces by an Incorrect Type. Dispose of Used Batteries According to the Instructions.” Avertissements relatifs à l'installation et aux emplacements dangereux Les modems sont des appareils ouverts conçus pour être installés dans une enceinte adaptée à l'application prévue. -
Page 17: Cellular Information
CELLULAR INFORMATION Cellular Information Antenna System Cellular Devices The cellular/wireless performance depends on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised. -
Page 18: Gps Antennas
CELLULAR INFORMATION GPS Antennas GPS Antenna Specifications Category Description Frequency Range 1575.24 MHz Impedance 50 Ohms VSWR 2.0:1 max Gain 10-30 dBi LNA Current Consumption 40 mA max Noise Figure < 2dB Polarization RHCP Input voltage 3.0V ± 0.2V Bluetooth and Wi-Fi Antennas Manufacturer: Taoglas Antenna Solutions Manufacturer's Model Number:... -
Page 19: Installing And Using The Router
INSTALLING AND USING THE ROUTER Installing and Using the Router Installing the Router To use the router’s cellular features, connect a suitable antenna to the antenna connector. If your device is capable of supporting antenna diversity, see the section about diversity. Some routers support Wi-Fi. -
Page 20: Mounting The Device
The dimensions illustration in this guide shows the mounting rod, as well as the dimensions for placement of the screws. Activating the Account for Wireless Devices Refer to Multi-Tech’s Cellular Activation Web site at http://www.multitech.com/activation.go for information on activating your cellular modem. Note:... -
Page 21: Setting Up Wi-Fi
INSTALLING AND USING THE ROUTER Setting up Wi-Fi Some models have Wi-Fi capability. If your device supports this feature, you need to use the device’s web management interface to enable Wi-Fi. Then, see the online help file for information on working with Wi-Fi. Resetting the Device To reset the device, when desired: Find the hole in the panel labeled RESET. -
Page 22: Regulatory Information
REGULATORY INFORMATION Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 23: Fcc And Ic Antenna Requirements Toward License Exempt Radio Transmitters (Bluetooth/Wlan)
REGULATORY INFORMATION FCC and IC Antenna Requirements Toward License Exempt Radio Transmitters (Bluetooth/WLAN) The license-exempt Bluetooth/WLAN radio transmitter contained in this equipment may only be operated with an antenna of a type, a maximum gain and the required antenna impedance as approved and specified below. To reduce potential radio interference to other users, choose the antenna type and it's gain so that the equivalent isotropically radiated power (EIRP) is not more than that necessary for successful communication. -
Page 24: Restriction Of The Use Of Hazardous Substances (Rohs)
REGULATORY INFORMATION Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc Certificate of Compliance 2011/65/EU Multi-Tech Systems confirms that its embedded products comply with the chemical concentration limitations set forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). -
Page 25: Reach Statement
REGULATORY INFORMATION REACH Statement Registration of Substances After careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation 1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would be considered as “articles”. -
Page 26: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 27: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
