Chapter 4 – Configuration Examples
Setup Networks & Services
Site A Configuration on the RouteFinder VPN in the Home Office
To configure your RouteFinder VPN in the home office in preparation for connection to a remote branch office, click the
Networks & Services button on the Menu bar, and then select Network. Set the following:
1.
Add a network for the remote LAN port (private LAN on eth0 at the branch office). Enter the following:
•
Name = RemoteLAN
•
IP address = 192.168.10.0
•
Subnet mask = 255.255.255.0
2.
Add a network for the remote WAN port (public WAN on eth1 at the branch office). Enter the following:
•
Name = RemoteWAN_IP
•
IP address = 204.26.122.3
•
Subnet mask = 255.255.255.255

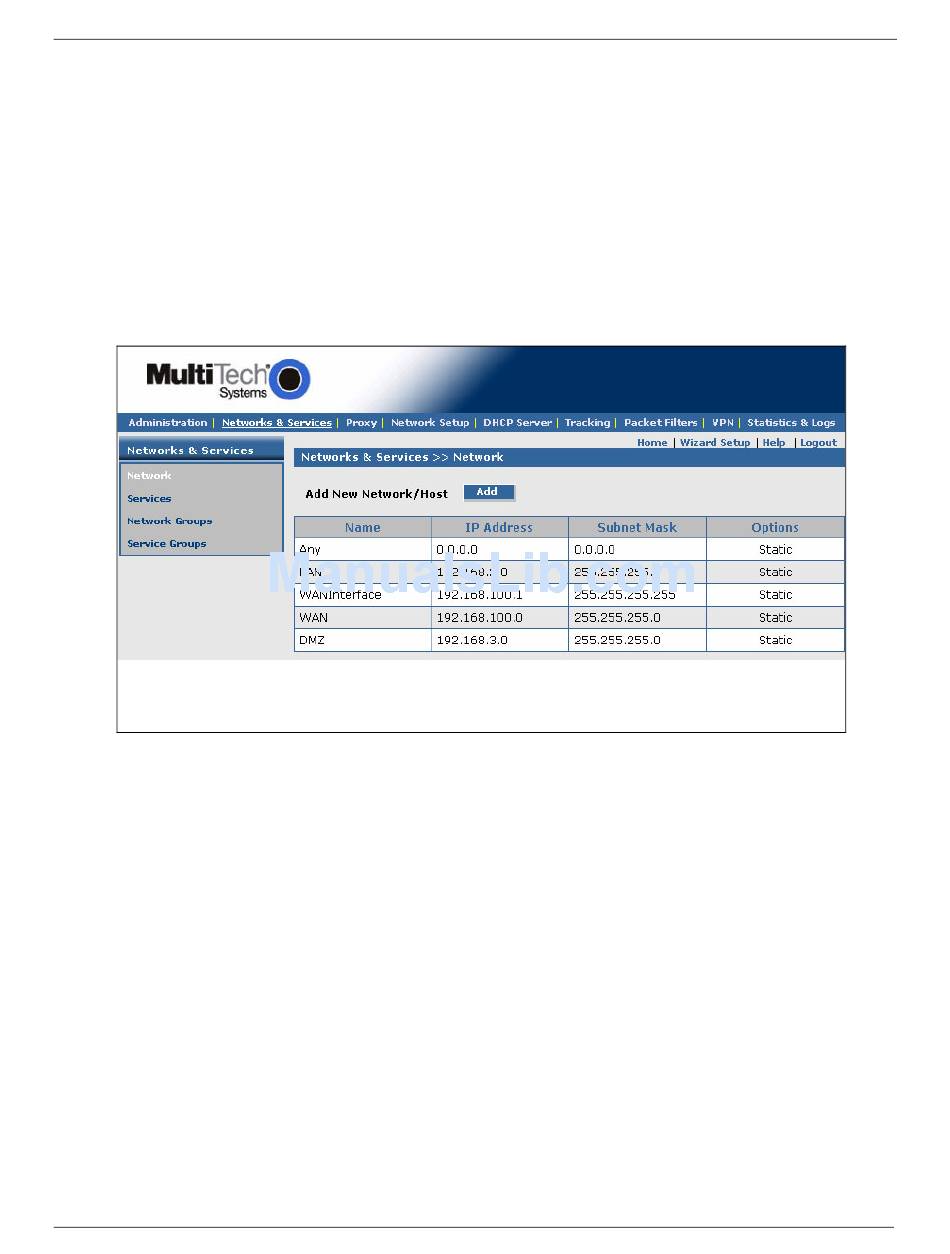

Example 1 will add two network entries into the table on this screen as follows:
Notes:
•
Default Entries
The first four entries on this screen are default entries and cannot be changed.
•
Network Data Displays on Other Screens
Networks added using the Add Network/Host on this screen will display in the Remote Gateway IP and Remote
LAN dropdown boxes on the VPN > IPSec > IKE screen.
18
Name IP Address
RemoteLAN 192.168.10.0
RemoteWAN_IP 204.26.122.3
Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)
Subnet Mask Options
255.255.255.0 Edit | Delete
255.255.255.255 Edit | Delete
