3. Enter the following information in order to establish an IPSec protocol.
•
Enter a Connection name. (Example: SiteA)
•
Place a checkmark in the box to enable Perfect Forward Secrecy.
•
Select Secret for the Authentication Method.
•
Enter a shared Secret string using alphanumeric characters. (Example: 1o2t3t4f)
•
Select 3DES for Select Encryption.
•
Accept the defaults for IKE Life Time and Key Life.
•
Enter the number of retries you want the device to make in order to establish the connection. Use zero for
unlimited retries.
•
Select the Local WAN IP and Local LAN. The Local WAN IP is the Public Static IP address of the WAN
port (Example: WAN). The Local LAN is the private IP Network on the LAN port. (Example: LAN).
•
Select the Remote Gateway IP and Remote LAN. The Remote Gateway IP is the Public Static IP
address of the WAN port at the Remote site (Example: RemoteWAN_IP). The Remote LAN is the private
IP network on the LAN Port of the remote site (Example: RemoteLAN). Leave the Remote LAN blank.
•
Disable UID.
4. Click Add.
5. The newly created IPSec IKE configuration displays at the bottom of the VPN > IPSec screen.
To enable the connection, check the connection's Status box at the bottom of the screen.
Note: Be sure that the checkmark is still in the VPN Status box at the top of the screen. Both status boxes
must be checked in order for the tunnel to start.

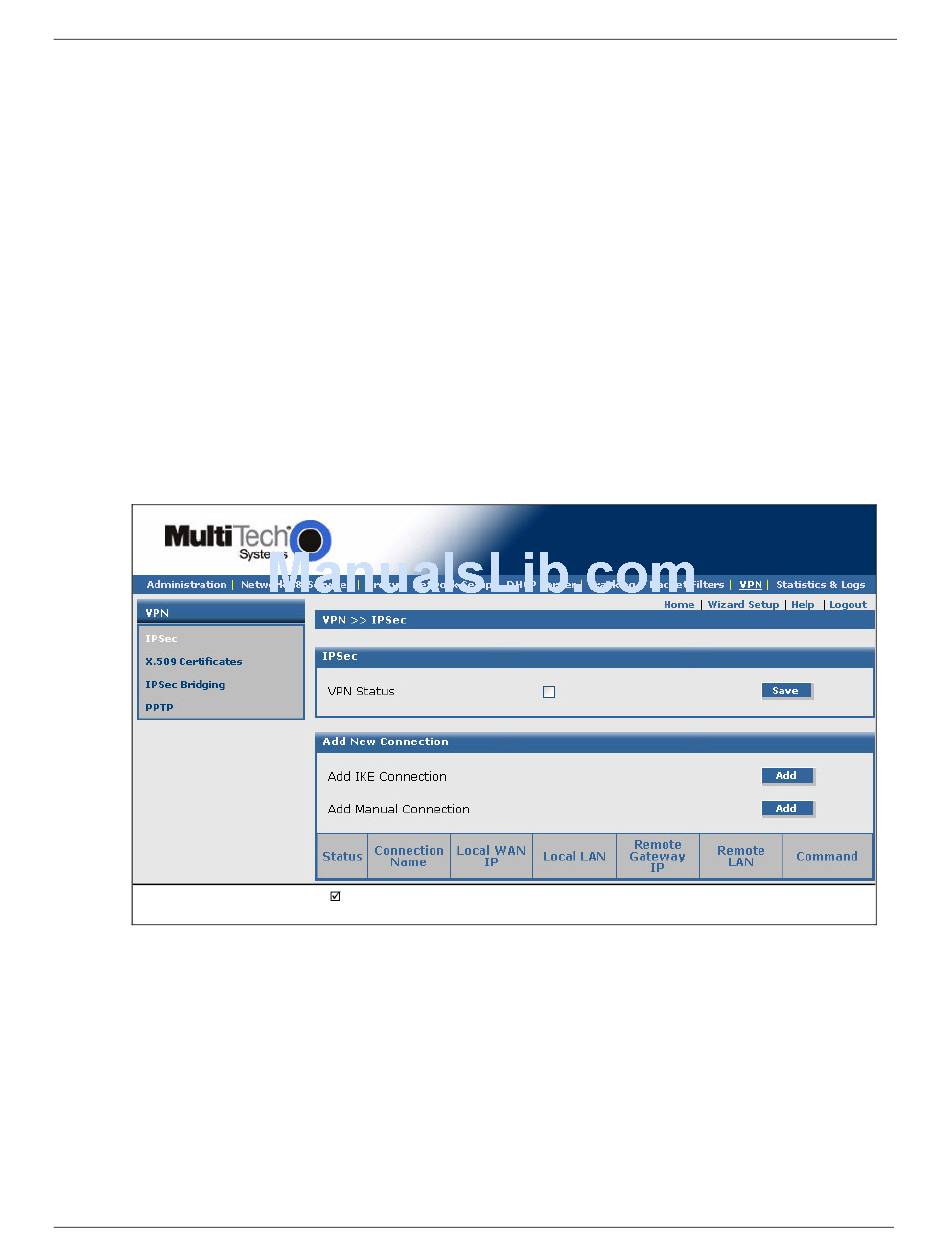

New IKE configuration:
This completes the configuration for Site A (the RouteFinder in your home office) to support a tunnel through the
Internet to remote branch office.
Configuring Site B
For Site B (RouteFinder in the branch office), input the parameters listed in the table at the beginning of this section.
Then follow the steps for Site A, except that now you will use the parameters for Site B listed in the example on the first page
of this chapter.
