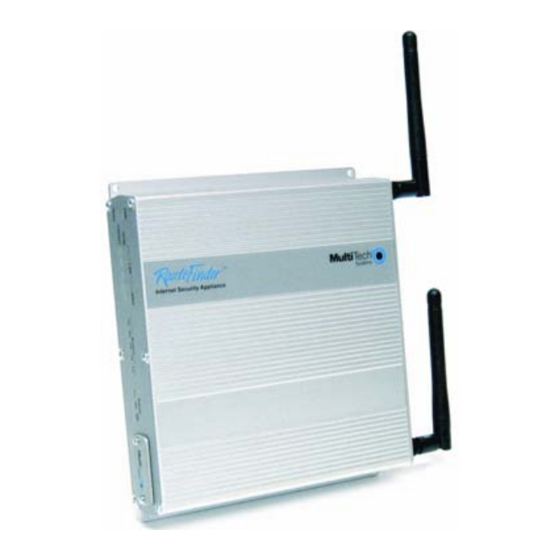

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. Revision...
Enter the Shared Secret in Preshared Key for your network (the Secret has to match on both ends). Then Confirm the shared secret by retyping the shared secret. For IKE Authentication choose MD5. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples Examples...
(e.g., 192.168.25.0) and the Subnet Mask (e.g., 255.255.255.0). If it’s a single IP address, change it to that address. For ESP Authentication choose MD5. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Enter the Subnet Mask for this network. The same address/mask pair should not be present in the current list displayed on the screen. Click the ADD button to add the new network Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 7
Click the Add button to add this Packet Filter rule. Important Note: Do not check the Status box. When adding a user-defined rule, leave the Status box unchecked. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 8
Remote LAN: Select vpn-client. Note that you select Any if the remote client is Dynamic. Click the Save button to save your tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 9
You will also see information about the data, if any, that is being sent across the tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Once the network configuration is complete, the information about that network displays at the bottom of the screen. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples Side B 65.126.90.248...
Page 11
Click the VPN Status check box to enable IPSec. Then click the Save button. Select Add an IKE Connection by clicking the corresponding Add button. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 12
Make sure to check the Status box at the bottom of the screen on the left side to activate the newly created tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 13
To see if the tunnel is up you can click on Statistics & logs and go to the IPSec Live Log. You will see the connection up; and if any data is being sent across, you will see that information here. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 14
Enter a Name for the remote LAN IP address. Example: Remote-LAN Enter the remote LAN IP Address (Ex. 192.168.25.0) with a network Subnet Mask of 255.255.255.0. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 15
Click the VPN Status check box to enable IPSec. Then click the Save button. Select Add an IKE Connection by clicking the corresponding Add button. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 16
Make sure to check the Status box at the bottom of the screen on the left side to activate the newly created tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Page 17
You will also see the information, if any, about the data being sent across the tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 1 – Non-NAT Setup Examples...
Then Confirm the shared secret by entering the Shared Secret again. For IKE Authentication choose MD5. Click the P1 Advanced button. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Then enter the IP address of the RouteFinder in the Set the value for the ID field. Example: 65.126.90.248 Click OK. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Mask (Ex. 255.255.255.0). If it’s a single IP address, change it to that address. For ESP Authentication choose MD5. Click OK. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Create and enter in the Name, IP Address, and Subnet Mask of the Remote VPN Client. Click the Add to add the new network to the list Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Click on the VPN Status check box to enable IPSec. Then click the Save button. Select Add an IKE Connection by clicking the corresponding Add button. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Page 23
Make sure to check the Status box at the bottom of the screen on the left side to activate the newly created tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Page 24
To see if the tunnel is up you can click on Statistics & logs and go to the IPSec Live Log. You will see the connection up; and if any data is being sent across, you will see that information here. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Once the network configuration is complete, the information about that network displays at the bottom of the screen. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples Side B 65.126.90.248...
Click the Add button to add this Packet Filter rule. Important Note: Do not check the Status box. When adding a user-defined rule, leave the Status box unchecked. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Remote ID: Enter IP Address of the remote device that is at the other end of the VPN tunnel. Click the Save button to save your tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Create and enter in the Name, IP Address, and Subnet Mask of the Remote LAN Click Add to add the new network to the list Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Click on the VPN Status check box to enable IPSec. Then click the Save button. Select Add an IKE Connection by clicking the corresponding Add button. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Page 30
Make sure to check the Status box at the bottom of the screen on the left side to activate the newly created tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
Page 31
Live Log. You will see the connection up (if connected), and you will see the statistics related to the data being sent across the tunnel. Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B) Chapter 2 – Behind NAT Setup Examples...
