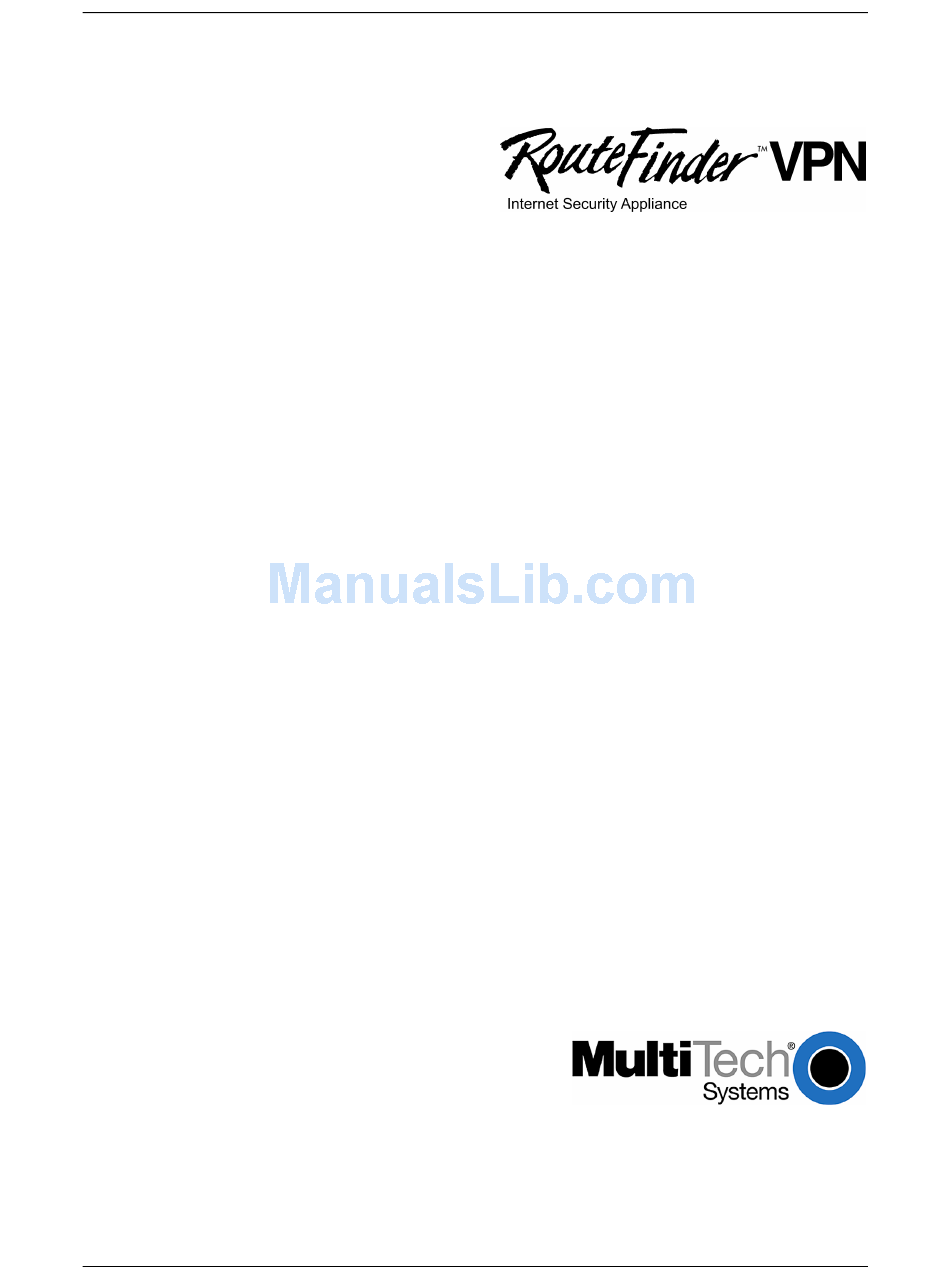

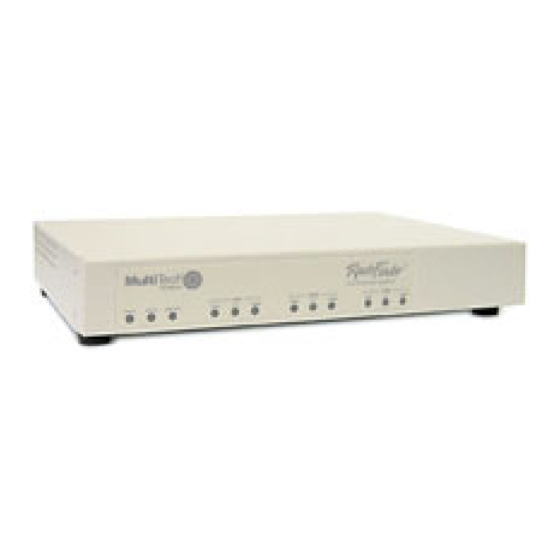

- Page 1 RF760VPN RF660VPN RF600VPN RouteFinder Configured with DNAT and Aliases Reference Guide...
- Page 2 Rev. C 11/02/04 & 01/25/05 Software 3.20 & 3.21 DNAT and Aliasing through the RouteFinder This document applies to the RF760VPN, the RF660VPN, and the RF600VPN. All references to RouteFinder apply to all three RouteFinder builds. This document gives an example explaining how to use DNAT and Aliasing on the RouteFinder to allow a remote workstation to create a Telnet connection to a LAN though the RouteFinder.
- Page 3 Remote Client-to-LAN Configuration Using DNAT and Aliasing Section One RF660VPN is used only as example. All RouteFinders can be used. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C)
- Page 4 User and Password entries from the default (admin) to something else. (If Windows displays the AutoComplete screen, for security reasons, you may want to click No to tell the Windows OS to not remember the Password.) Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing 192.168.2.100...
- Page 5 If someone else is already logged in to the RouteFinder, or you were logged in recently, the message below is displayed. Click the Yes Button. The Login screen is displayed. Repeat Step 5. The Web Management Home screen is displayed. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing...
- Page 6 The following screen will display. Saving your settings will take a few minutes. Since you kept the LAN IP address the same, it is not necessary to change this system to a new IP address. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing...
- Page 7 Subnet mask = 255.255.255.255 Note: The screen displays networks after they have been entered. WANInterface1 204.26.122.104 WANInterface2 204.26.122.105 Win2k_Pro 192.168.2.100 Win2k_Server 192.168.2.11 Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255...
- Page 8 Aliases box. For example: Hardware Interface = eth1 IP address = 204.26.122.105 Subnet mask = 255.255.255.255 Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing Add aliases here Aliases are then displayed...
- Page 9 This completes the configuration of the RouteFinder at Site A. Next, configure the Windows 2000 Server on the LAN and the remote client to support a Telnet connection. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing...
- Page 10 In the Startup type box, click Automatic, then click on Start and click on OK. The Telnet status should now read Started. This server is now ready to receive a remote Telnet connection. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing Section Two...
- Page 11 Option B: Open a DOS screen and type the following command to connect to the remote LAN Windows 2000 Server in the example: telnet 204.26.122.105 / win2k-server Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing Section Three...
- Page 12 11. The C: prompt is now in reference to the Win2k server on the LAN and you should be able to access subdirectories. This completes the configuration of the Windows 2000 remote client. Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C) Remote Client-to-LAN Configuration Using DNAT and Aliasing...
