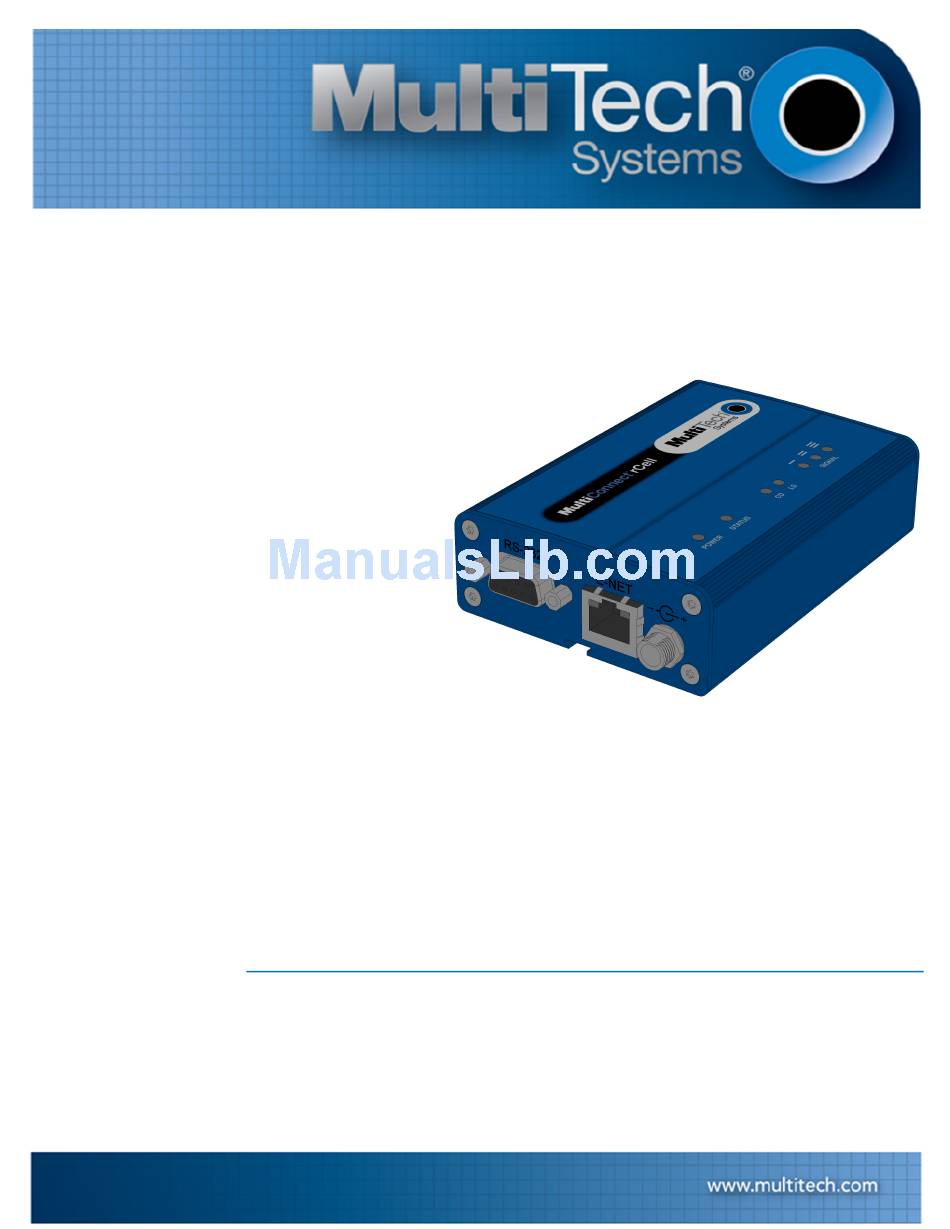

- Page 1 ® MultiConnect rCell 100 Series Router User Guide...
- Page 2 Contacting Multi-Tech Knowledge Base The Knowledge Base provides immediate access to support information and resolutions for all Multi-Tech products. Visit http://www.multitech.com/kb.go. Support Portal To create an account and submit a support case directly to our technical support team, visit: https://support.multitech.com.
-
Page 3: Table Of Contents
CONTENTS Contents Product Overview ..............................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Descriptions of LEDs..............................6 Ethernet LED Descriptions ............................6 Side Panels ..................................7 Specifications ................................8 Dimensions..................................9 Power Draw MTR-C2 ..............................10 Safety Warnings..............................11 Lithium Battery ................................ - Page 4 CONTENTS Registration of Substances............................19 Substances of Very High Concern (SVHC) ........................ 19 Waste Electrical and Electronic Equipment Statement ....................19 WEEE Directive................................19 Instructions for Disposal of WEEE by Users in the European Union ................ 19 Information on HS/TS Substances According to Chinese Standards ................. 20 Information on HS/TS Substances According to Chinese Standards (in Chinese) ............
-
Page 5: Product Overview
About MultiConnect rCell 100 Series Router This guide describes the MultiConnect rCell 100 Series router. The rCell family of routers is carrier approved and ready-to-deploy. You can use your device to provide secure data communication between many types of devices that use legacy as well as the latest communication technologies. -
Page 6: Descriptions Of Leds
PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: ■ Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. ■ Modem LEDs—Two modem LEDs indicate carrier detection and link status. ■... -
Page 7: Side Panels
PRODUCT OVERVIEW Side Panels The device has connectors on either side. The figures that follow show the connectors available on your model. A side panel of the device follows: Not all models have a GPS connector. The figure that follows shows the other side of the device. ®... -
Page 8: Specifications
PRODUCT OVERVIEW Specifications MTR-C2 Category Description General Performance CDMA2000 1xRTT Frequency Bands Dual-Band 800/1900 MHz Radio Cellular Telit CE-910 Speed Packet Data Up to 153 Kbps downlink and uplink Point-to-Point Messaging Mobile-Terminated SMS Mobile-Originated SMS Connectors Cellular Female SMA connectors for cellular Female SMA connector Power Requirements Voltage... -
Page 9: Dimensions
PRODUCT OVERVIEW Category Description Network Compliance Verizon, Sprint, Aeris Warranty Two years *UL Listed @ 40° C, limited by power supply. UL Certification does not apply or extend to an ambient above 40° C and has not been evaluated by UL for ambient greater than 40° C. UL has evaluated this device for use in ordinary locations only. -
Page 10: Power Draw Mtr-C2
PRODUCT OVERVIEW Power Draw MTR-C2 Cellular call box Average measured Peak TX amplitude Total inrush charge connection no data current (amps) at current (amps) measured in (amps) maximum power MilliCoulombs (mC) 7 volts US Cellular 800 MHz 0.209 0.548 0.640 US PCS 1900 MHz 0.245 0.618... -
Page 11: Safety Warnings
SAFETY WARNINGS Safety Warnings Lithium Battery ■ A lithium battery located within the product provides backup power for the timekeeping. This battery has an estimated life expectancy of ten years. ■ When this battery starts to weaken, the date and time may be incorrect. If the battery fails, the board must be sent back to Multi-Tech Systems for battery replacement. -
Page 12: Precautions For Pacemaker Wearers
SAFETY WARNINGS pacemakers and defibrillators from cellular devices. This test method is part of the Association for the Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI. The FDA continues to monitor cellular devices for interactions with other medical devices. -
Page 13: Avertissements Relatifs À L'installation Et Aux Emplacements Dangereux
SAFETY WARNINGS Avertissements relatifs à l'installation et aux emplacements dangereux Les modems sont des appareils ouverts conçus pour être installés dans une enceinte adaptée à l'application prévue. CET ÉQUIPEMENT EST ADAPTÉ EXCLUSIVEMENT POUR UNE UTILISATION EN ZONE DE CLASSE I, DIVISION 2, GROUPES A, B, C, ET D OU EN ZONE NON DANGEREUSE. -
Page 14: Cellular Information
CELLULAR INFORMATION Cellular Information Antenna System Cellular Devices The cellular/wireless performance depends on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised. -
Page 15: Installing And Using The Router
The dimensions illustration in this guide shows the mounting rod, as well as the dimensions for placement of the screws. Activating the Account for Wireless Devices Refer to Multi-Tech’s Cellular Activation Web site at http://www.multitech.com/activation.go for information on activating your cellular modem. Note:... -
Page 16: Setting Up Gps
INSTALLING AND USING THE ROUTER Setting up GPS If your model can support a GPS, see the online help file for information on working with a GPS. Resetting the Device To reset the device, when desired: Find the hole in the panel labeled RESET. The reset button is recessed into the case. To access the reset button, find a pin or similar thin object that can fit through the reset hole. -
Page 17: Regulatory Information
REGULATORY INFORMATION Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 18: Restriction Of The Use Of Hazardous Substances (Rohs)
REGULATORY INFORMATION Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc Certificate of Compliance 2011/65/EU Multi-Tech Systems confirms that its embedded products comply with the chemical concentration limitations set forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). -
Page 19: Reach Statement
REGULATORY INFORMATION REACH Statement Registration of Substances After careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation 1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would be considered as “articles”. -
Page 20: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 21: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
