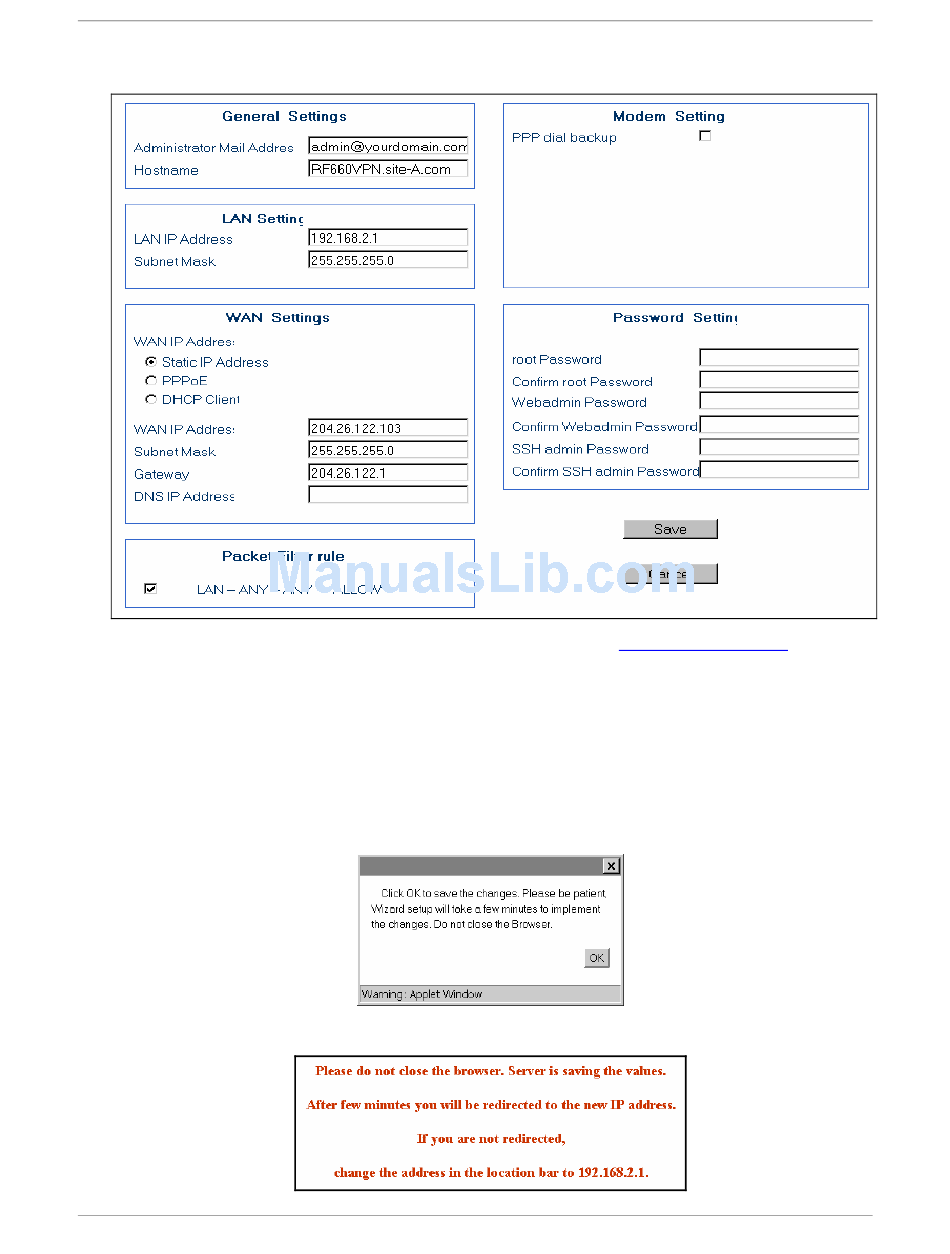

9. Click on Wizard Setup. Enter information for Site A of this example.
a) Enter the Administrator Email Address (can be anything). (Example: admin@yourdomain.com)
b) Enter the Host name for the RouteFinder (can be anything). (Example: RF660VPN.Site-A.com)
c) LAN IP Address and Subnet Mask are set at the defaults. This should be acceptable for Site A.
d) Enter the WAN IP Address. This is the PUBLIC STATIC IP address. (Example: 204.26.122.103)
e) Change the Gateway IP address; this is the IP address of the router that connects to the Internet. (Example:
204.26.122.1)
f) Place a checkmark in the Packet Filter Rule: LAN-ANY-ANY-ALLOW box. This enables the rule.
g) Specify any changes to the passwords that you feel are necessary.
h) Click Save to save the settings you just entered.
i) The following screen displays prompting you to save your changes. Click OK.
j) The following screen displays. Saving your settings will take several minutes. Since you kept the LAN IP
address the same, it is not necessary to change this system to a new IP address.
Multi-Tech Systems, Inc. RF760/660/600VPN Tunnel Examples Reference Guide (S000308D)
Example 1 – Site A
9
