Site A Configuration
Site B Configuration

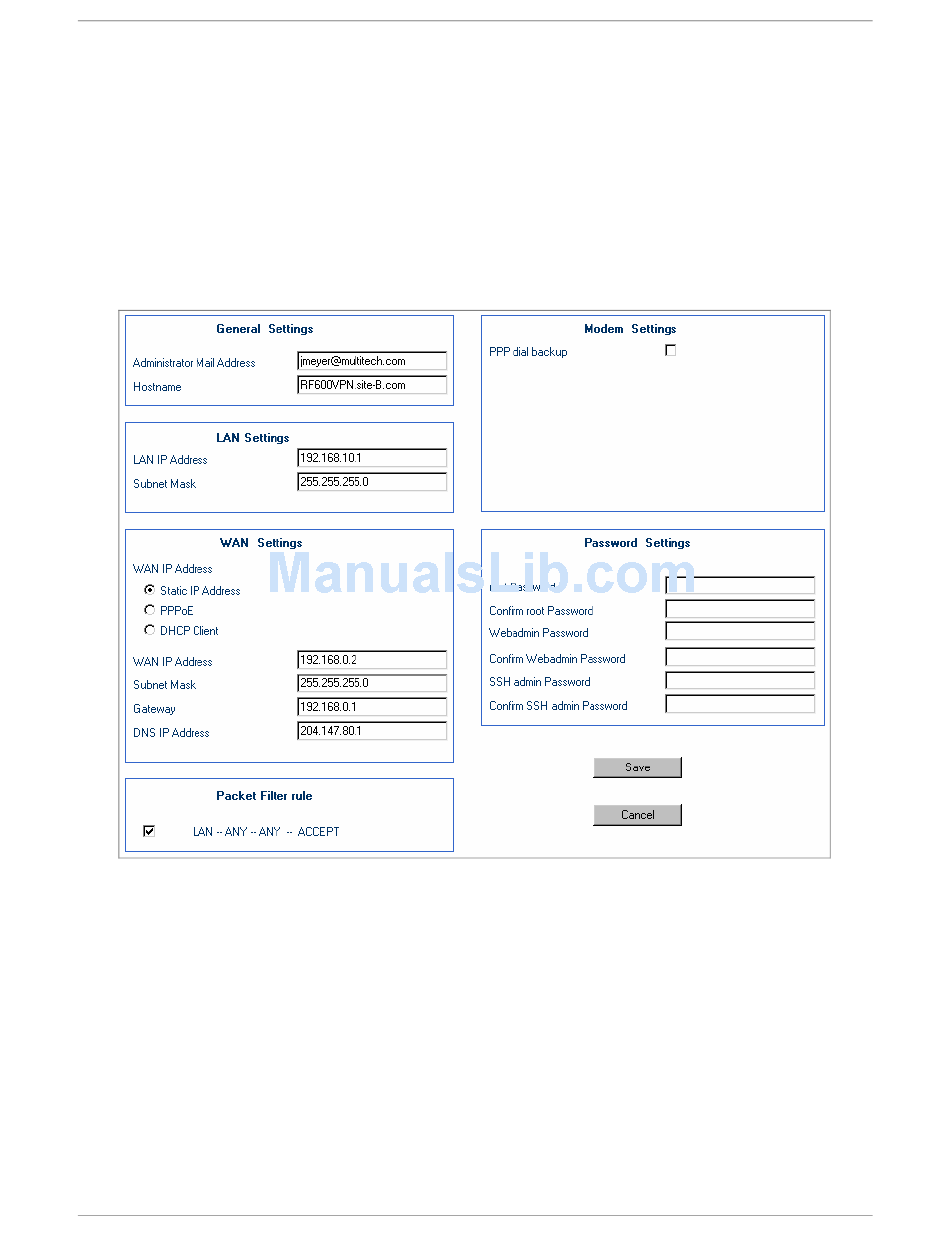

Configure the RF760VPN/RF660VPN/RF600VPN at Site B following the procedure in Example 1– Site B, but
use the Wizard Setup to change the WAN IP Address to 192.168.0.2 and the Gateway to 192.168.0.1.
Configure the NAT box for an IPSec Pass-Through by specifying the IP address and subnet mask assigned by
the ISP for Site B (Ex: 204.26.122.3). Then specify the ISP Gateway Address (Ex: 204.26.122.103).
Multi-Tech Systems, Inc. RF760/660/600VPN Tunnel Examples Reference Guide (S000308D)
To configure the RF760VPN/RF660VPN/RF600VPN at Site A,
follow the same procedure as in Example 1 – Site A.
NAT Box Configuration at Site B.
Example 2 – Site A and Site B
18
