Example 1 Site A Configuration
1. Connect a workstation to the RF660VPN's LAN port via Ethernet for Site A. In this example, the RouteFinder will
be referenced as RF660VPN, but the RF760VPN and RF600VPN can be configured in the same way.
2. Set the workstation IP address to
3. Turn on power to the RF660VPN RouteFinder and wait until you hear 5 beeps.
4. Bring up your Web browser on the workstation. At the Web browser's address line, type the default Gateway
address of https://192.168.2.1
screen(s) display.
Note: Make sure your PC's IP address is in the same network as the router's IP Address. WINIPCFG and
IPCONFIG are tools for finding a computer's default gateway and MAC address. In Windows 98/ME you can type
WINIPCFG. In Windows 2000/NT, you can type IPCONFIG.

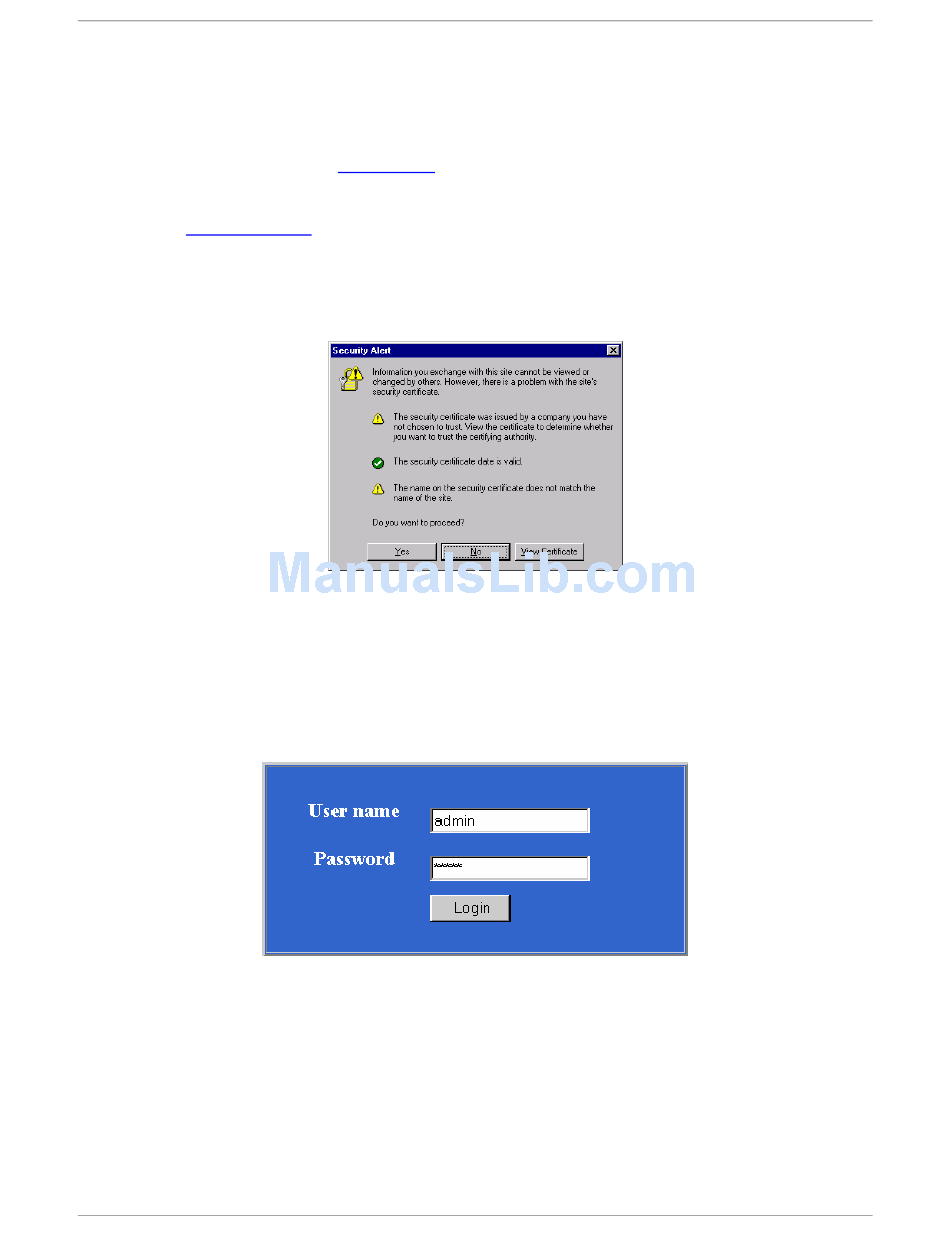

At the initial Security Alert screen, click Yes and follow any additional on-screen prompts. (This step is
eliminated when you have generated a CA certificate at Administration > Site Certificate)
5. The Login screen is displayed. Type the default User name of admin (all lower-case), tab to the Password
entry and type the default Password of admin (all lower-case), and click on Login. The User and Password
entries are case-sensitive (both must be all lower-case). The password can be up to 12 characters. You will want
to change User and Password entries from the default (admin) to something else. (If Windows displays the
AutoComplete screen, for security reasons, you may want to click No to tell the Windows OS to not remember
the Password.)
Multi-Tech Systems, Inc. RF760/660/600VPN Tunnel Examples Reference Guide (S000308D)
192.168.2.100 subnet.
and press the Enter key. In some environments, one or more Security Alert
Example 1 – Site A
