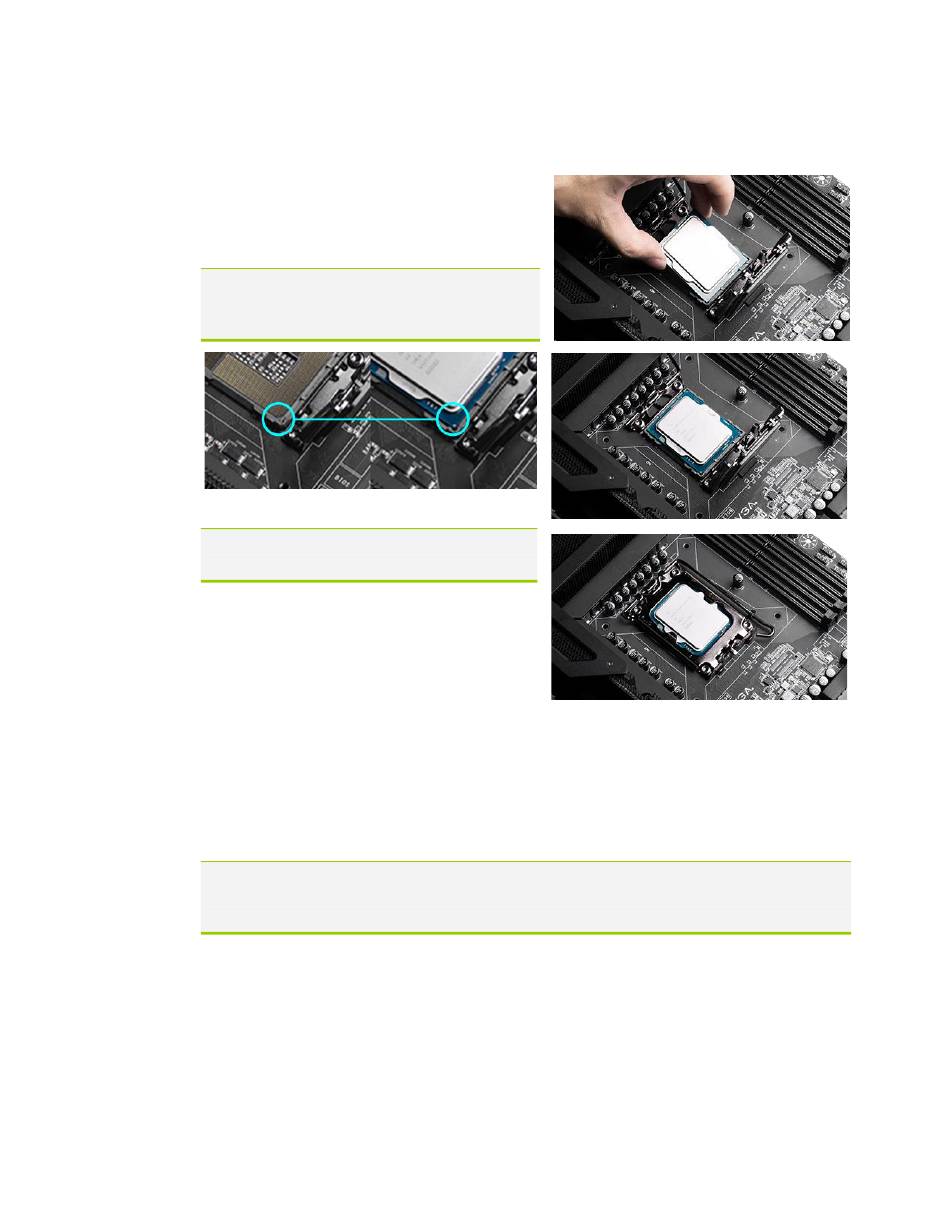

3. Align the notches on the CPU to the
notches in the socket, and lower the
processor straight down into the socket.
Note: The gold triangle key on the CPU
should match the triangle key on the
load plate.
Note: Make sure the CPU is fully seated
and level in the socket.
4. Lower the load plate so that it is resting
on the CPU, and make sure to slide it
under the lever's loop.
5. Remove the plastic protective socket cover by pulling it straight up and away
from the socket.
6. Carefully lock the lever back into place by lowering it down to the hook, then
push the lever towards the socket and down under the hook.
Note: After removing the CPU socket cover, it is recommended to store it in case
you ever need to transport your motherboard. If you ever remove the CPU, it
is highly recommended to reinstall the socket cover.

Installing the CPU Cooling Device

There are many different cooling devices that can be used with this
motherboard. Please follow the instructions included with your cooling
assembly.
