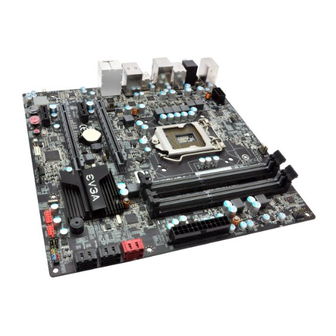

- Page 2 EVGA Z68/P67 Motherboard...
- Page 3 EVGA Z68/P67 Motherboard Table of Contents...
- Page 4 EVGA Z68/P67 Motherboard...
- Page 5 Intel Z68/P67 chipset with native support for SATA III/6G for the performance you demand, delivered when you need it. As always this board comes with the added bonus of EVGA’s industry leading 24/7 technical support in case you ever have any issues or questions.
- Page 6 Power Supply EVGA assumes you have purchased all the necessary parts needed to allow for proper system functionality. For a full list of supported CPU’s on this motherboard, please visit http://www.evga.com/support/motherboard/. This kit provides you with the motherboard and all connecting cables necessary to install the motherboard into a PC case.
- Page 7 EVGA Z68/P67 Motherboard Size EATX form factor of 12 inches x 10.3 inches Microprocessor support Intel Socket 1155 Processor Operating systems: Supports Windows XP/Vista/7 32 and 64 bit Contains Intel Z68/P67 chipset System Memory support ...
- Page 8 EVGA Z68/P67 Motherboard SATA ports up to 3.0 Gb/s (300 M/s) data transfer rate SATA ports up to 6.0 Gb/s (600 M/s) data transfer rate Support for RAID 0, RAID 1, RAID 0+1, RAID5 and RAID 10 ESATA (optional) Onboard LAN ...
- Page 9 EVGA Z68/P67 Motherboard The EVGA Z68/P67 Motherboard comes with all the necessary cables for adding a motherboard to a system case. If replacing a motherboard, you may not need many of these cables. The following accessories are included with the EVGA Z68/P67 Motherboard:...
- Page 10 EVGA Z68/P67 Motherboard – I/O Shield Fan (Optional) Exhausts Air from the IO Shield out of the rear of the case. Attaches to IO Shield. - 2-Port SATA Power Cables Allows a Molex power connector to adapt to a SATA power connector.
- Page 11 EVGA Z68/P67 Motherboard – EVGauge (Optional) Analog Gauge that represents your CPU frequency in real time. – ECP Panel (Optional) Allows monitoring of post codes and remote control of PCIe slot disable, voltages and CMOS reset all on one bay mounted panel.
- Page 12 EVGA Z68/P67 Motherboard This section will guide you through the installation of the motherboard. The topics covered in this section are: Preparing the motherboard Installing the CPU Installing the CPU fan Installing the memory Installing the motherboard ...
- Page 13 EVGA Z68/P67 Motherboard Be very careful when handling the CPU. Hold the processor only by the edges and do not touch the bottom of the processor. Use the following procedure to install the CPU onto the motherboard: Unhook the socket lever by pushing down and away from the socket.
- Page 14 EVGA Z68/P67 Motherboard Align the notches in the processor with the notches on the socket. Lower the processor straight down into the socket with out tilting or sliding it into the socket. Note: Make sure the CPU is fully seated and level in the socket.
- Page 15 EVGA Z68/P67 Motherboard Your new motherboard has four 240-pin slots for DDR3 memory. These slots support 1GB, 2GB and 4GB DDR3 DIMMs. There must be at least one memory slot populated to ensure normal operation. Use the following the recommendations for installing memory. (See Figure 1 on page for the location of the memory slots.)
- Page 16 EVGA Z68/P67 Motherboard The sequence of installing the motherboard into a system case depends on the chassis you are using and if you are replacing an existing motherboard or working with an empty system case. Determine if it would be easier to make all the connections prior to this step or to secure the motherboard and then make all the connections.
- Page 17 EVGA Z68/P67 Motherboard Most system cases have a base with mounting studs or spacers to allow the motherboard to be secured to the chassis and help to prevent short circuits. If there are studs that do not align with a mounting hole on the motherboard, it is recommended that you remove that stud to prevent the possibility of a short circuit.
-
Page 18: Pw1 Motherboard Connector
EVGA Z68/P67 Motherboard Expansion slots CMOS Clear Button is the main power supply connector located along the edge of the board next to the DIMM slots. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure. - Page 19 EVGA Z68/P67 Motherboard , the 8-pin ATX 12V power connection, is used to provide PW12-1 & PW12-2 power to the CPU. Align the pins to the connector and press firmly until seated. The BIOS Select Switch is located directly to the right of the PC speaker on the lower edge of the mainboard.
- Page 20 EVGA Z68/P67 Motherboard The front panel header on this motherboard is one connector used to connect the following four cables. (see Table 2 for pin definitions): PWRLED Attach the front panel power LED cable to these two pins of the connector.
- Page 21 EVGA Z68/P67 Motherboard The IEEE 1394a expansion cable bracket is provided in the box but if you do not require the additional external connections, you do not need to install it. Secure the bracket to either the front or rear panel of the system case (not all system cases are equipped with the front panel option).
- Page 22 EVGA Z68/P67 Motherboard This motherboard contains six (6) USB 2.0 ports that are exposed on the rear panel of the chassis (Figure 2). The motherboard also contains two 10-pin internal header connectors onboard that can be used to connect an optional external bracket containing up to four (4) USB 2.0 ports.
- Page 23 EVGA Z68/P67 Motherboard The audio connector supports HD audio standard and provides two kinds of audio output choices: the Front Audio and the Rear Audio. The Front Audio supports re-tasking function. Table 5. Front Audio Connector Connector Signal PORT1_L Front Audio Connector...
- Page 24 EVGA Z68/P67 Motherboard There are PCI-E x1 slots that are designed to accommodate less bandwidth- intensive cards, such as a modem, sound or LAN card. These PCI-E slots are reserved for Graphics Cards and PCI-E x1, x4, x8 and x16 devices. The design of this motherboard supports multiple Graphics Card technologies such as SLI or CrossFireX.
- Page 25 EVGA Z68/P67 Motherboard These onboard buttons include RESET, POWER and Clear CMOS. These functions allow you to easily reset the system, turn on/off the system, or clear the CMOS. The motherboard uses the CMOS RAM to store all the set parameters.
- Page 26 EVGA Z68/P67 Motherboard Provides two-digit POST codes to show why the system may be failing to boot. It is useful during troubleshooting situations. This Debug LED will also display current CPU socket temperatures after the system has fully booted into the Operating System.
- Page 27 Windows XP , Vista and Windows 7 both 32 and 64 Bit. The kit comes with a CD that contains utilities, drivers, and additional soare. The CD that has been shipped with the EVGA Z68/P67 Motherboard contains the following software and drivers: Chipset Drivers ...
-
Page 28: Ami Post Code
EVGA Z68/P67 Motherboard This section provides the AMI POST Codes (Table 6) for the EVGA Z68/P67 Motherboard during system boot up. The POST Codes are displayed on the Debug LED readout located directly onboard the motherboard. This Debug LED will also display current CPU... - Page 29 EVGA Z68/P67 Motherboard OEM pre-memory initialization codes Memory initialization. Serial Presence Detect (SPD) data reading Memory initialization. Memory presence detection Memory initialization. Programming memory timing information Memory initialization. Configuring memory Memory initialization (other). Reserved for ASL (see ASL Status Codes section...
- Page 30 EVGA Z68/P67 Motherboard is failed Internal CPU error reset PPI is not available Reserved for future AMI error codes S3 Resume is stared (S3 Resume PPI is called by the DXE IPL) S3 Boot Script execution Video repost OS S3 wake vector call...
- Page 31 EVGA Z68/P67 Motherboard South Bridge DXE SMM initialization is started South Bridge devices initialization South Bridge DXE Initialization (South Bridge module specific) ACPI module initialization CSM initialization 7A– Reserved for future AMI DXE codes 80– OEM DXE initialization codes Boot Device Selection (BDS) phase is started...
- Page 32 EVGA Z68/P67 Motherboard Ready To Boot event Legacy Boot event Exit Boot Services event Runtime Set Virtual Address MAP Begin Runtime Set Virtual Address MAP End Legacy Option ROM Initialization System Reset USB hot plug PCI bus hot plug Clean-up of NVRAM...
- Page 33 EVGA Z68/P67 Motherboard 1337 – This is reserved for EVGA level elite AC – Alternating Current ACPI - Advanced Configuration and Power Interface AFR – Alternate Frame Rendering APIC - Advanced Programmable Interrupt Controller ACPI – Advanced Configuration and Power Interface BCLK –...
- Page 34 EVGA Z68/P67 Motherboard FSB – Front Side Bus – For The Win! GHz – Gigahertz GPU – Graphics Processing Unit HDD - Hard Disk Drive HDMI - High-Definition Multimedia Interface HDR – High Dynamic Range Lighting HPET - High Precision Event Timer HT –...
- Page 35 EVGA Z68/P67 Motherboard OEM - Original Equipment Manufacturer PATA - Parallel Advanced Technology Attachment PCB - Printed Circuit Board PCI - Peripheral Component Interconnect PCIe - Peripheral Component Interconnect Express PCI-x - Peripheral Component Interconnect Extended POST – Power on Self Test PWM –...
-
Page 36: Fcc Compliance Information
Original Purchaser. Upon termination, for any reason, all copies of Soare and materials must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA.com CORP for any and all damages suffered as a result of the violation or default.
