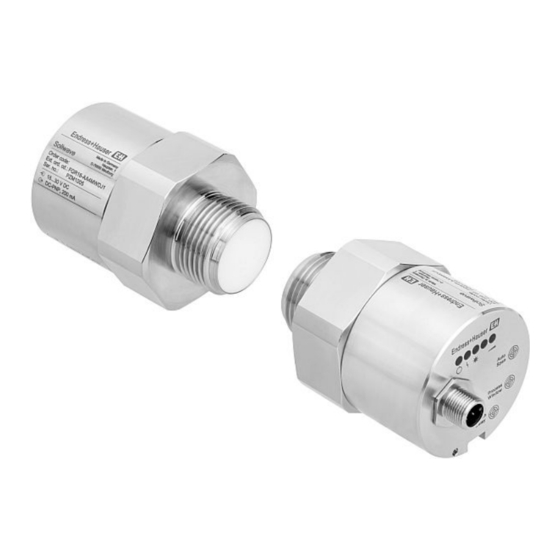

Endress+Hauser Soliwave FDR16 Brief Operating Instructions
Microwave barrier
Hide thumbs
Also See for Soliwave FDR16:
- Operating instructions manual (40 pages) ,
- Brief operating instructions (24 pages)
Table of Contents
Advertisement
Quick Links
KA01535F/97/EN/03.22-00
71566624
2022-05-01
Products

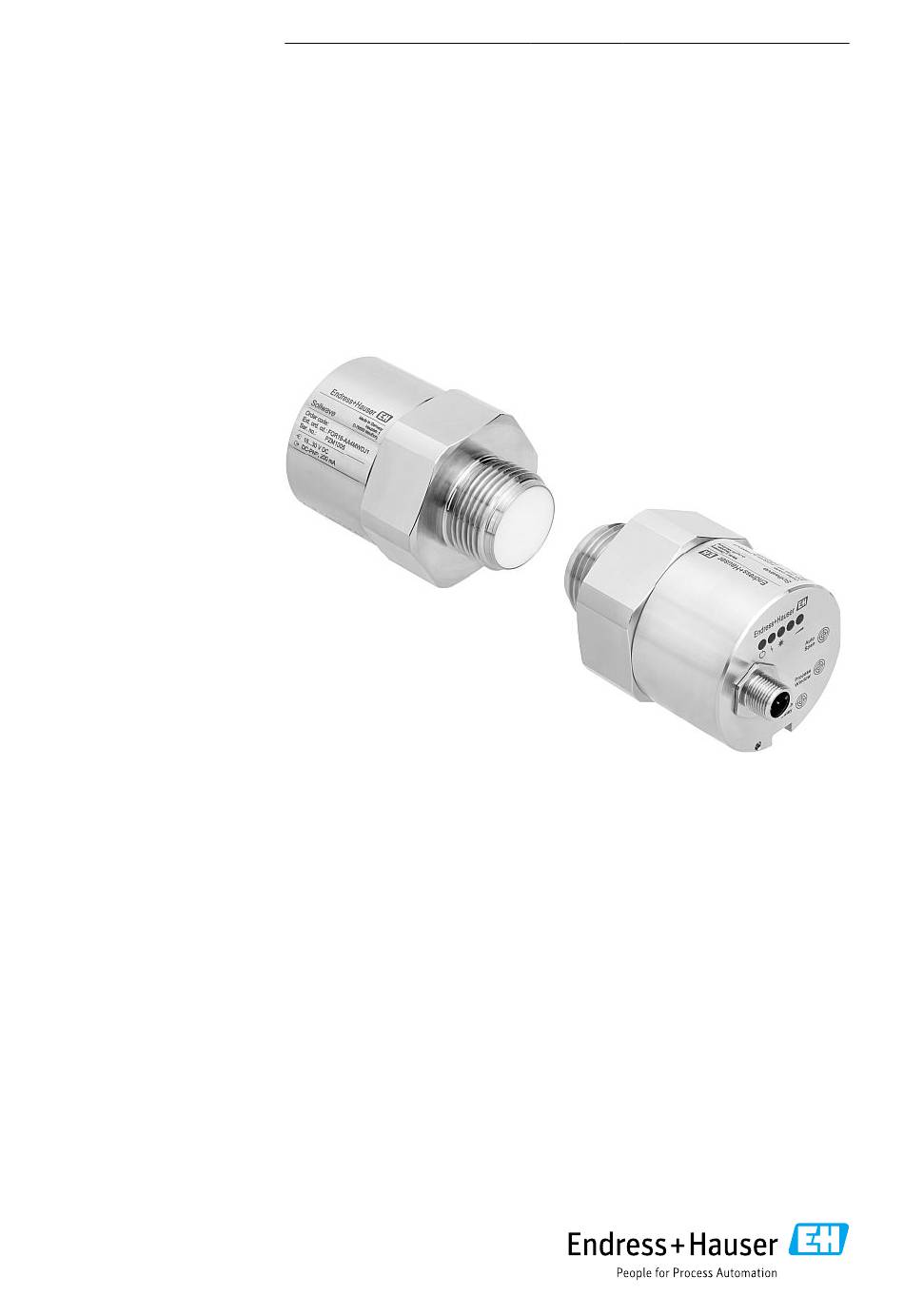

Brief Operating Instructions
Soliwave FDR16/FQR16
Microwave barrier
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Soliwave FDR16
Summary of Contents for Endress+Hauser Soliwave FDR16
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiphant FTL41 Soliwave FDR16/FQR16 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser Endress+Hauser...
-
Page 3: Table Of Contents
Soliwave FDR16/FQR16 Table of contents Table of contents About this document 4 Symbols . -
Page 4: About This Document
About this document Soliwave FDR16/FQR16 About this document Symbols 111 Safety symbols This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 5: Basic Safety Instructions
Soliwave FDR16/FQR16 Basic safety instructions 115 Device-specific symbols LED on Indicates an illuminated LED LED off Indicates an non-illuminated LED LED undefined Indicates an undefined or arbitrary light state of the LED Free path Indicates the free path between FDR and FQR... -
Page 6: Workplace Safety
All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided • Enter the serial number on the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) on the name-... -
Page 7: Storage And Transport
Soliwave FDR16/FQR16 Incoming acceptance and product identification 321 Nameplate Soliwave Order code: Ext. ord. cd.: Ser.-No.: 1 Nameplate data Manufacturer address Order number, external order code, serial number Technical data Approval-specific information 322 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1... -
Page 8: Mounting
Mounting Soliwave FDR16/FQR16 Mounting Mounting conditions Minimization of application-specific influences → TI01564F "Performance characteristics" 411 Mounting position Checking the alignment → Position of potential equalization terminal (A = same direction for both devices; B = one device rotated by 90°) β... - Page 9 Soliwave FDR16/FQR16 Mounting 413 Optimization of the signal quality It is possible to optimize the signal quality by moving FQR16 and FDR16 on their longitudinal axis by a, b = ±10 mm (±0.4 in) after an automatic adjustment has been performed.
- Page 10 Mounting Soliwave FDR16/FQR16 • Recommendation under ideal conditions: A ≥ D/2 • Stronger reflections → increase A 415 Operating temperature range -20 to +60 °C (-4 to +140 °F) 416 Process adapter → TI01564F "Accessories" • Weld-in or screw-in adapter type FAR52 •...
-
Page 11: Mounting The Device
Soliwave FDR16/FQR16 Mounting Mounting the device 421 Mounting with connection thread 2 ³⁄₈" 0000000061 6 Mounting with connection thread 1½ NPT G 1 / G 1½ Screw in conical (A) or cylindrical (B) connection thread. Align the housing of the electronics (potential equalization terminal of both devices must point in the same direction). - Page 12 Mounting Soliwave FDR16/FQR16 422 Mounting alternatives G thread • Mounting with welding (A): Screw in the device as far as it will go. • Mounting in existing thread (B): Screw in the device flush with the inner wall and lock it with a counternut.
-
Page 13: Post-Installation Check
Soliwave FDR16/FQR16 Mounting 423 Mounting without contact with the process • Risk of condensate formation on the inner process wall → plug 2 • A minimize → minimize signal attenuation • Observe maximum temperature T 0000000021 8 Mounting in front of microwave-impermeable process wall Microwave-permeable plug Microwave-permeable plug in case of condensate formation on the inner process wall... -
Page 14: Electrical Connection
Electrical connection Soliwave FDR16/FQR16 Electrical connection For a device for the hazardous area: Observe the instructions in the Ex documentation (XA). Connection requirements 511 Connect potential equalization • The potential equalization must be connected to the external ground terminal on the device. - Page 15 Soliwave FDR16/FQR16 Electrical connection Supply voltage • U = 18 to 30 V DC • In accordance with IEC/EN61010 a suitable circuit breaker must be provided for the measu- ring device. • Voltage source: Non-hazardous contact voltage or Class 2 circuit (North America).
-
Page 16: Post-Connection Check
Electrical connection Soliwave FDR16/FQR16 Function test Point level Sensor state Error/Warning Switching output Warning LED flashing Error LED lights up permanently Post-connection check ̃ Is the device or cable undamaged? ̃ Do the cables used comply with the requirements? ̃ Do the mounted cables have adequate strain relief? ̃... -
Page 17: Operation Options
Soliwave FDR16/FQR16 Operation options Operation options 0000000010 11 Display and operating elements of the FDR16 Signal strength (LED white) Only for parameterization: LED yellow Sensor state (LED yellow) Operation (LED green) Error/warning (LED red) Parameterization point automatic adjustment Parameterization point process window Parameterization point switch delay Endress+Hauser... - Page 18 Operation options Soliwave FDR16/FQR16 Light signals (LEDs) Display Meaning Operation LED lights up: Device is ready for operation (supply voltage is applied) LED flashes: Device is in parameterization mode (→ 19) Error/Warning LED lights up: Error/device failure (unrecoverable error) LED flashes: Warning/maintenance required (recoverable error)
-
Page 19: Commissioning
Soliwave FDR16/FQR16 Commissioning Commissioning The microwave barrier is ready for operation a maximum of 3 s after the supply voltage is applied. Initial setup → 7.2 ... 7.5 Function check Function check • "Post-installation check" checklist • "Post-connection check" checklist Activation parameterization mode Setting options only available with activated parameterization mode (7.3 ... -
Page 20: Set Process Window
Commissioning Soliwave FDR16/FQR16 Set process window • If the point level cannot be reliably detected after an automatic adjustment because the medium to be detected does not dampen sufficiently, the process window must reduced step by step. • An enlargement of the process window is also possible. This is useful if, for example, ma- terial is conveyed through the detection range of the microwave barrier due to the process, which leads to attenuation of the microwave. -
Page 21: Reset To Factory Settings
Soliwave FDR16/FQR16 Commissioning Display Meaning Switching delay off (factory setting) 500 ms 10 s Reset to factory settings In case of unknown settings or use in a new application, it is recommended to reset the FDR16 to its factory settings beforehand. - Page 22 Soliwave FDR16/FQR16 Endress+Hauser...
- Page 23 Soliwave FDR16/FQR16 Endress+Hauser...
- Page 24 *71518769* 71518769 www.addresses.endress.com...
