KA01535F/97/EN/01.21
71531743
2021-12-17
Products
Brief Operating Instructions

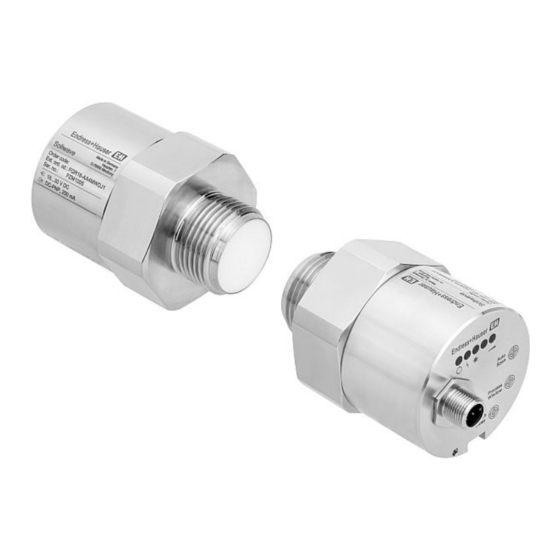

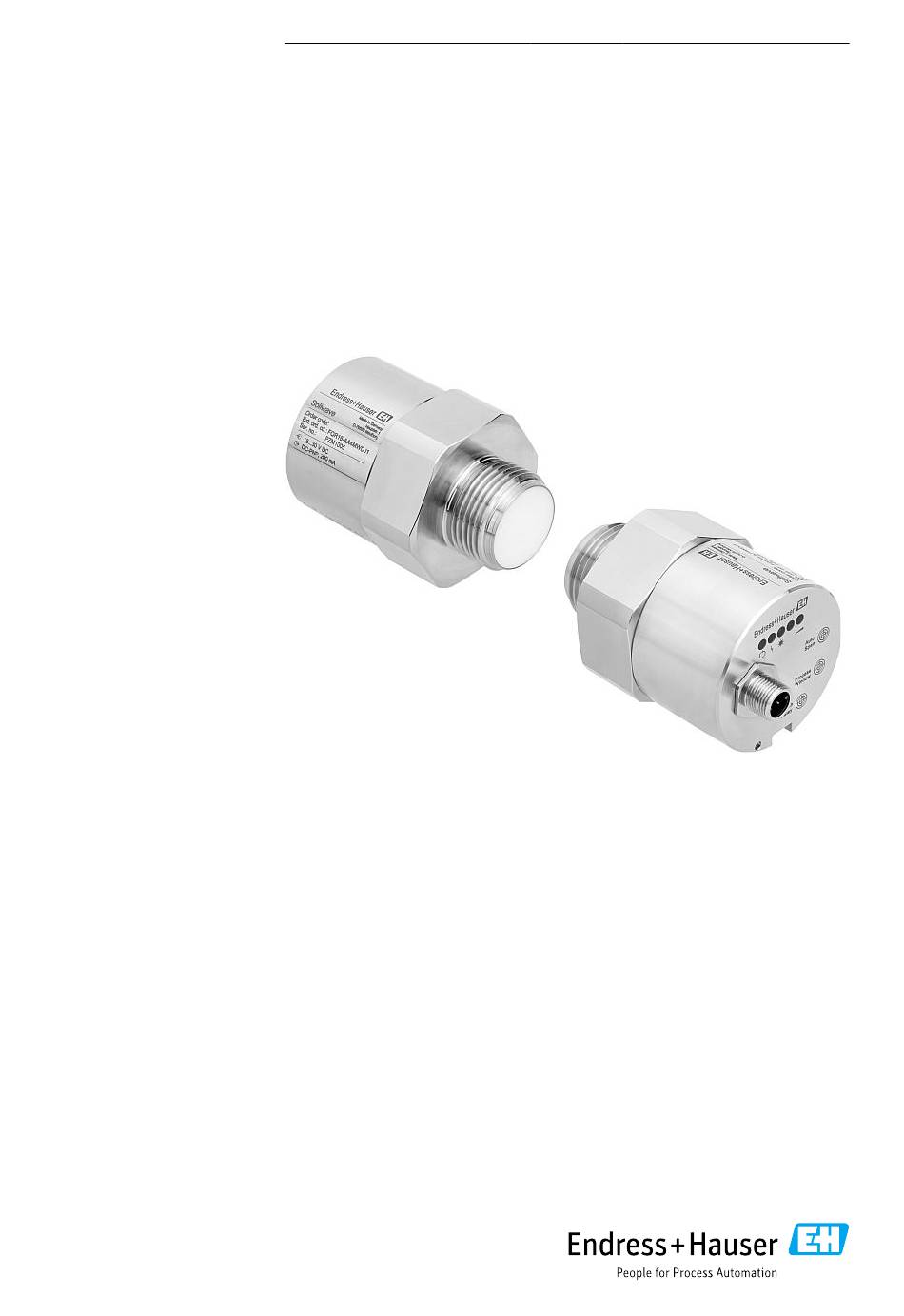

Soliwave FDR16/FQR16
Microwave barrier
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Soliwave FDR16
Summary of Contents for Endress+Hauser Soliwave FDR16
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiphant FTL41 Soliwave FDR16/FQR16 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser Endress+Hauser...
-
Page 3: Table Of Contents
Soliwave FDR16/FQR16 Table of contents Table of contents About this document ����������������������������������������������������������������������������������������������������� 4 Symbols ....................................4 Basic safety instructions ����������������������������������������������������������������������������������������������� 5 Requirements for the personnel ............................5 Designated use ..................................5 Workplace safety ................................6 Operational safety ................................6 Product safety ..................................6 Incoming acceptance and product identification ��������������������������������������������������������... -
Page 4: About This Document
About this document Soliwave FDR16/FQR16 About this document 1�1 Symbols 1�1�1 Safety symbols This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 5: Basic Safety Instructions
Soliwave FDR16/FQR16 Basic safety instructions 1�1�5 Device-specific symbols LED on Indicates an illuminated LED LED off Indicates a non-illuminated LED LED undefined Indicates an undefined or arbitrary light state of the LED Free path Indicates the free path between FDR and FQR... -
Page 6: Workplace Safety
They meet general safety standards and legal requirements. They also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the devices. -
Page 7: Storage And Transport
• Enter the serial number on the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) on the name- plate 3�2�1... -
Page 8: Mounting
Mounting Soliwave FDR16/FQR16 3�3�2 Storage temperature → 10 3�3�3 Transporting the device Transport the device to the measuring point in the original packaging. Mounting 4�1 Mounting conditions Minimization of application-specific influences → TI01564F "Performance characteristics" 4�1�1 Mounting position Checking the alignment → Position of potential equalization terminal (A = same direction for both devices;... - Page 9 Soliwave FDR16/FQR16 Mounting 4�1�2 Using reflector Arrange FQR16 and FDR16 symmetrically to the reflector (entrance angle = exit angle). Range reduction per reflector: 10 % 4�1�3 Optimization of the signal quality It is possible to optimize the signal quality by moving FQR16 and FDR16 on their longitudinal axis by a, b = ±10 mm (±0.4 in) after an automatic adjustment has been performed.
- Page 10 Mounting Soliwave FDR16/FQR16 4�1�4 Parallel mode α α 0000000009 4 Parallel mode Distance between microwave barriers Detection range α 90° • Recommendation: A ≥ D/2 • Stronger reflections → increase A 4�1�5 Working temperature range –20 to +60 °C (–4 to +140 °F) 4�1�6...
- Page 11 Soliwave FDR16/FQR16 Mounting 4�1�7 Mounting dimensions 90 (3.54) 110 (4.33) 20 (0.79) 40 (1.57) 55 (2.17) 110 (4.33) 28 (1.10) (2.76) 0000000012 5 Dimensions. Unit of measurement mm (in) Endress+Hauser...
-
Page 12: Mounting The Device
Mounting Soliwave FDR16/FQR16 4�2 Mounting the device 4�2�1 Mounting with connection thread 2 ³⁄₈" 0000000061 6 Mounting with connection thread 1½ NPT G 1 / G 1½ Screw in conical (A) or cylindrical (B) connection thread. Align the housing of the electronics (potential equalization terminal of both devices must point in the same direction). - Page 13 Soliwave FDR16/FQR16 Mounting 4�2�2 Mounting alternatives G thread • Mounting with welding (A): Screw in the device as far as it will go. • Mounting in existing thread (B): Screw in the device flush with the inner wall and lock it with a counternut.
-
Page 14: Post-Installation Check
Mounting Soliwave FDR16/FQR16 4�2�3 Mounting without contact with the process • Risk of condensate formation on the inner process wall → plug 2 • A minimize → minimize signal attenuation • Observe maximum temperature T 0000000021 8 Mounting in front of microwave-impermeable process wall... -
Page 15: Electrical Connection
Soliwave FDR16/FQR16 Electrical connection Electrical connection For devices intended for use in hazardous areas, please read the information and comply with the instructions in the Ex documentation (XA). 5�1 Connection requirements 5�1�1 Connect potential equalization • The potential equalization must be connected to the external ground terminal on the device. - Page 16 Electrical connection Soliwave FDR16/FQR16 Power supply • U = 18 to 30 V DC • In accordance with IEC/EN61010 a suitable circuit breaker must be provided for the mea- suring device. • Voltage source: Non-hazardous contact voltage or Class 2 circuit (North America).
-
Page 17: Post-Connection Check
Soliwave FDR16/FQR16 Electrical connection Function monitoring Point level Sensor state Error/warning Output signal Warning LED flashes Error LED lights up permanently 5�3 Post-connection check Is the device or cable undamaged (visual inspection)? Do the cables used comply with the requirements? ... -
Page 18: Operation Options
Operation options Soliwave FDR16/FQR16 Operation options 0000000010 11 Display and operating elements of the FDR16 LED signal strength (white) Only for parameterization of the process window: LED yellow LED sensor state (yellow) LED operation (green) LED error (red) Parameterization point automatic adjustment Parameterization point process window Parameterization point switch delay Endress+Hauser... - Page 19 Soliwave FDR16/FQR16 Operation options Light signals (LEDs) Display Meaning Operation LED lights up: Device is ready for operation (supply voltage is present) LED flashes: Device is in parameterization mode (→ 20) Error/Warning LED lights up: Error/device failure (unrecoverable error). LED flashes: Warning/maintenance required (recoverable error)
-
Page 20: Commissioning
Commissioning Soliwave FDR16/FQR16 Commissioning The microwave barrier is ready for operation a maximum of 3 s after the supply voltage is applied. Initial commissioning → 7.2 to 7.5 7�1 Function check Perform post-installation and post-connection checks: • "Post-installation check" checklist •... -
Page 21: Process Window
Soliwave FDR16/FQR16 Commissioning 7�4 Process window • If the point level is not reliably detected after an automatic adjustment because the medium to be detected does not dampen sufficiently, the process window must be reduced step by step. • An enlargement of the process window is also possible. This is useful if, for example, ma- terial is conveyed through the detection range of the microwave barrier due to the process, which leads to attenuation of the microwave. -
Page 22: Reset To Factory Settings
Commissioning Soliwave FDR16/FQR16 Display Meaning Switching delay off (factory setting) 500 ms 10 s 7�6 Reset to factory settings In case of unknown settings or use in a new application, it is recommended to reset the FDR16 to its factory settings beforehand. - Page 23 Soliwave FDR16/FQR16 Endress+Hauser...
- Page 24 *71518769* 71518769 www.addresses.endress.com...
