TI01033P/00/EN/05.15
71281272
Electronic differential pressure transmitter with ceramic and metal sensors
Application
The Deltabar FMD71/FMD72 is used to measure the
differential pressure or level, volume or mass of liquids in
pressurized or vacuum vessels
Your benefits
The electronic differential pressure system eliminates
traditional mechanical issues resulting in greater process
availability and reliability
• Safety risks are minimized with the electronic differential
pressure system architecture and design
• Lowest total cost of ownership due to reduced installation
time, maintenance, downtime and spare requirements,
downtime and spare requirements.
Products
Technical Information

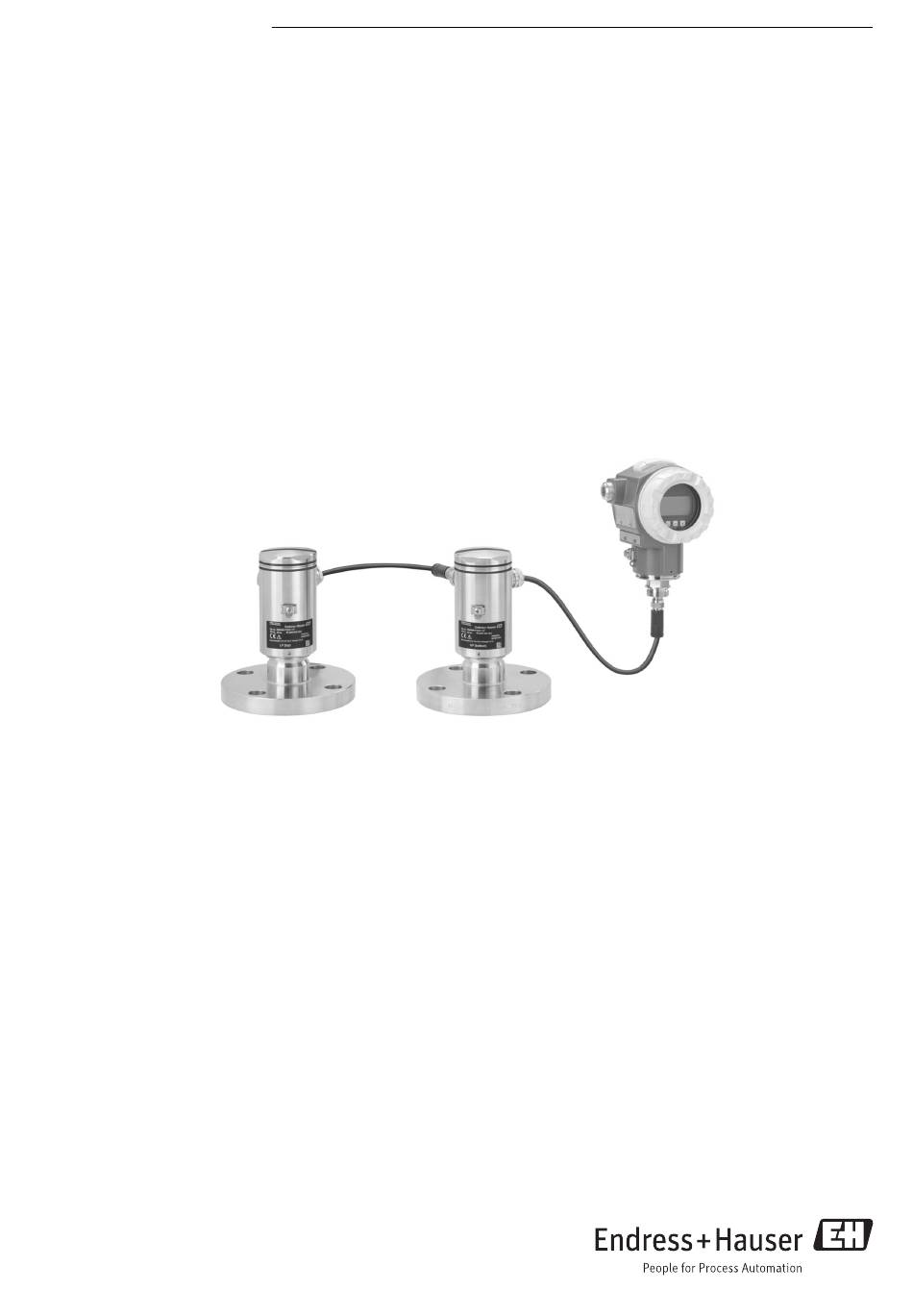

Deltabar FMD71, FMD72
Level measurement with electronic differential pressure
Solutions
• Multivariable level measurement: HART-based differential
pressure, head pressure and sensor temperatures from one
system
• Continuous health indication of the entire system via HART-
based diagnostic
• High reproducibility and long-term stability
• Overload-resistant and function-monitored
Services
