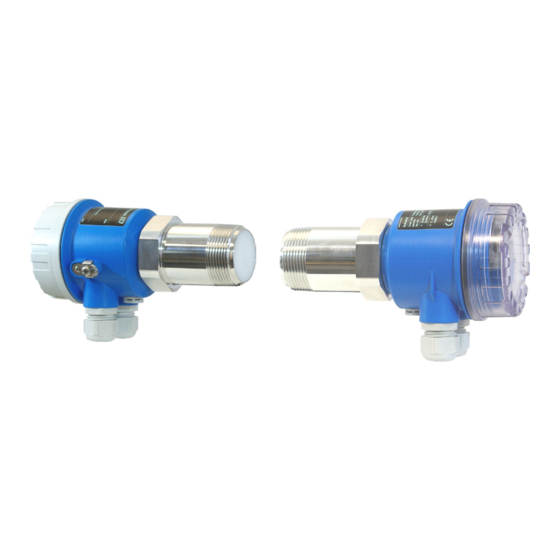

Endress+Hauser Soliwave FDR56 Brief Operating Instructions

Microwave barrier
Hide thumbs Also See for Soliwave FDR56:
Table of Contents

Advertisement

Quick Links

Download this manual
KA01574F/97/EN/01.22-00
71560958
2023-12-06
Products

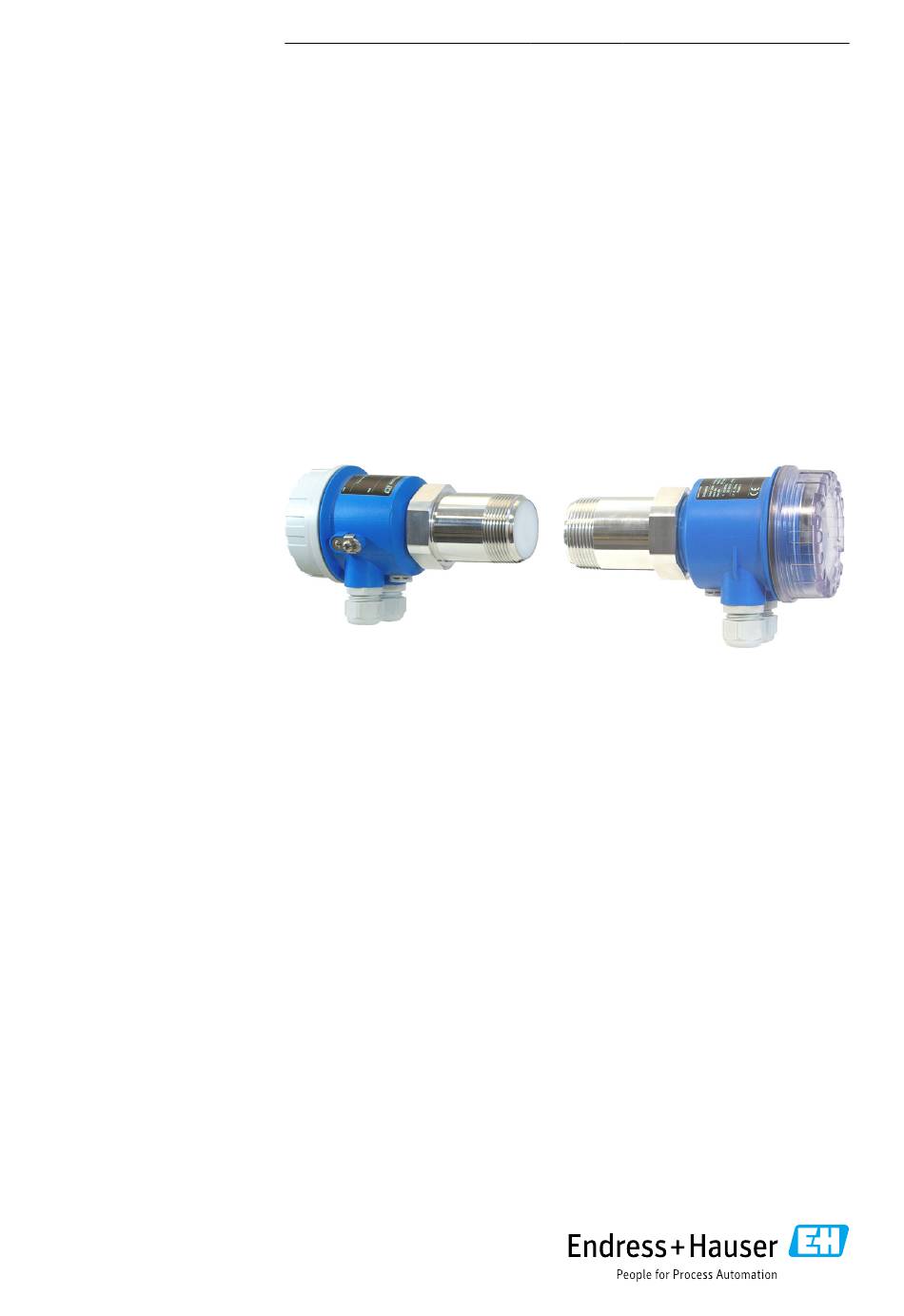

Brief Operating Instructions
Soliwave FDR56/FQR56
Microwave barrier
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Soliwave FDR56

Summary of Contents for Endress+Hauser Soliwave FDR56

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Liquiphant FTL41 Soliwave FDR56/FQR56 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser Endress+Hauser...

  • Page 3: Table Of Contents

    Soliwave FDR56/FQR56 Table of contents Table of contents About this document                                                      4 Symbols .

  • Page 4: About This Document

    About this document Soliwave FDR56/FQR56 About this document Symbols 111 Safety symbols This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Basic Safety Instructions

    Soliwave FDR56/FQR56 Basic safety instructions 115 Device-specific symbols LED on Indicates an illuminated LED LED off Indicates a non-illuminated LED Configuration mode Indicates the function number or value Normal operation Indicates only the signal strength of the limit detection Key (+)

  • Page 6: Workplace Safety

    The manufacturer is not liable for damage caused by improper or non-designated use. Clarification of borderline cases: • In the case of special fluids and media used for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 7: Product Identification

    All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided • Enter the serial number on the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) on the name-...

  • Page 8: Storage And Transport

    Mounting Soliwave FDR56/FQR56 Storage and transport 331 Storage conditions Use original packaging. 332 Storage temperature → 10 333 Transporting the device Transport the device to the measuring point in the original packaging. Mounting Mounting conditions Minimization of application-specific influences →  TI00443F "Performance characteristics"...
  • Page 9 Soliwave FDR56/FQR56 Mounting 412 Optimization of the signal quality If the microwave barrier devices are installed in front of microwave-permeable windows or plugs, it is possible to optimize the signal quality by moving FQR56 and FDR56 on their longi- tudinal axis after an automatic adjustment has been performed.
  • Page 10 Mounting Soliwave FDR56/FQR56 414 Parallel operation α α 0000000167 5 Parallel operation Distance between microwave barriers Detection range α 90° • Recommendation under ideal conditions: A ≥ D/2 • Stronger reflections → increase A 415 Operating temperature range -20 to +70 °C (-4 to +158 °F)
  • Page 11 Soliwave FDR56/FQR56 Mounting 417 Mounting dimensions 85 (3.35) 169 (6.65) 60 (2.36) 183 (7.20) 77 (3.03) 164 (6.46) 189 (7.44) 175 (6.89) 95 (3.74) 29 (1.14) 0000000296 6 Mounting dimensions. Unit of measurement mm (in) Connection thread R 1½ / 1½ NPT Hexagon SW55 Connection thread G 1½ Counternut (SW55) Endress+Hauser...

  • Page 12: Mounting The Device

    Mounting Soliwave FDR56/FQR56 Mounting the device 421 Mounting with connection thread 0000000166 7 Mounting with connection thread 1½ NPT G 1 / G 1½ Screw in connection thread. For G 1½ thread: Tighten counternut. Align the electronics housing (cable gland or plug connector of both devices must point in the same direction).

  • Page 13: Post-Installation Check

    Soliwave FDR56/FQR56 Mounting 422 Mounting without contact with the process • Risk of condensate formation on the inner process wall → plug 2 • A minimize → minimize signal attenuation • Observe maximum temperature T → 10 0000000191 8 Mounting in front of microwave-impermeable process wall...

  • Page 14: Electrical Connection

    Electrical connection Soliwave FDR56/FQR56 Electrical connection For a device for the hazardous area: Observe the instructions in the Ex documentation (XA). Connection requirements The following points must be observed before connecting the device: • The voltage supply must match the voltage specified on the nameplate.

  • Page 15: Connecting The Device

    Soliwave FDR56/FQR56 Electrical connection Connecting the device 521 Wiring 0000000274 9 Electrical connection Connecting potential matching (inside) F34 housing Connecting potential matching (outside) F15 housing M12 connector Connecting potential matching (inside) F15 housing Terminals Connecting potential matching (outside) F34 housing Connecting potential matching (inside) F16 housing Connecting potential matching (outside) F16 housing Cable gland 10 Connecting cable 11 Harting connector Endress+Hauser...
  • Page 16 Electrical connection Soliwave FDR56/FQR56 522 Supply circuit connection 0000000163 10 Supply circuit connection (Connector 1) Supply voltage • 85 to 253 V AC, 50/60 Hz • 20 to 60 V DC or 20 to 30 V AC, 50/60 Hz Power consumption • FQR56: - 7 VA (85 to 253 V AC, 50/60 Hz) - 1 W (20 to 60 V DC) / 1.5 VA (20 to 30 V AC, 50/60 Hz)
  • Page 17 Soliwave FDR56/FQR56 Electrical connection 523 Connection signal circuit 0000000162 11 Connection signal circuit (Connector 2) 3 (NO) 4 (CC) 5 (NC) 0000000149 12 Signal circuits Relay output • Switching capacity 250 V AC / 4 A, 125 V DC / 0.4 A or 30 V DC / 4 A • Switching delay parameterizable (off, 500 ms to 10 s) •...

  • Page 18: Post-Connection Check

    Electrical connection Soliwave FDR56/FQR56 • The contact material of the relay is also suitable for switching small signal circuits, if no inductive loads or higher currents have been switched previously. • If the switching frequency is high, the solid-state relay should be selected.

  • Page 19: Operation Options

    Soliwave FDR56/FQR56 Operation options Operation options Overview FDR56 FQR56 0000000197 13 Display and operating elements Function selection switch Ready for operation LED (green) (FDR56) Display - Normal operation: Signal strength - Configuration mode: Function number and function value Operating button (decrease or toggle) Switch output LED (yellow), only relay Operating button (increase or toggle) Ready for operation LED (green) (FQR56) Switch for adjusting the operating frequency Operation of the FDR56 Select any function (Overview → 29) →...

  • Page 20: Operation Of The Fqr56

    Commissioning Soliwave FDR56/FQR56 Setting the selected function → The two operating buttons can be used to increase/decrease the value or to switch the selection. Example: Function 3 (manual adjustment on free path) oder → → → → The configured value is stored as soon as the function is switched.

  • Page 21: Basic Setup

    Soliwave FDR56/FQR56 Commissioning Basic setup 721 Adjustment with free or minimum covered path (function 1) This automatic setup function can be used if the path is free or minimum covered. Set encoding switch to Position 1 → Display of the function number →...
  • Page 22 Commissioning Soliwave FDR56/FQR56 • The Soliwave microwave barrier is adjusted, if with maximum covered path a) on devices with switching output the switching point (LED 5) is undercut safely or b) on devices with current output all 10 LEDs are not lit.

  • Page 23: Advanced Settings

    Soliwave FDR56/FQR56 Commissioning Move the encoding switch to the initial position 0 → Display of the current signal strength • The Soliwave microwave barrier is adjusted, if with free or minimum covered path a) on devices with switching output the switching point (LED 5) is exceeded safely or b) on devices with current output a minimum of 6 LEDs are lit (ideally all 10 LEDs are lit).
  • Page 24 Commissioning Soliwave FDR56/FQR56 Move the encoding switch to the initial position 0 → Display of the current signal strength • A larger hysteresis can also be used to prevent the output from continuously switching with a fluctuating signal strength. If, for example, the signal strength continuously fluctuates between the third and eighth LED, the factory default hysteresis of an LED would lead to the switch output continuously switching when the fourth LED is undershot.
  • Page 25 Soliwave FDR56/FQR56 Commissioning Output Rest position Setting Exceeding of switch Undershooting point hysteresis (LED 5) (function 5) Relay (Contact 3-4-5) solid-state relay (Contact 3-4) • These settings are for adapting the switching function to the downstream analysis (process control system).
  • Page 26 Commissioning Soliwave FDR56/FQR56 t(T) t(T) t(S) t(S) 0000000213 16 Adjustment of switching delays t(S) Switch-on delay (function 7) t(T) Switch-off delay (function 8) Setting Delay t(S), t(T) Setting Delay t(S), t(T) Without 2 s 100 ms 3 s 200 ms 5 s 300 ms 10 s 500 ms 20 s 1 s Move the encoding switch to position 7 (switch-on delay t(S)) or position 8 (switch-off delay t(T)) →...
  • Page 27 Soliwave FDR56/FQR56 Commissioning • The delays impact only the switch outputs (relay and solid-state relay); they have no signifi- cance for the current output. • If the process conditions are unstable, the signal strength can be calmed with a parameteriz- able damping (function A).

  • Page 28: Reset To Factory Settings (Function F)

    Commissioning Soliwave FDR56/FQR56 Reset to factory settings (function F) This function can be used to reset the FDR56 to its factory settings as follows: Move the encoding switch to position F → Display of the function number → All LEDs go out after 2 seconds.

  • Page 29: Overview Device Functions

    Soliwave FDR56/FQR56 Commissioning Overview device functions Function Description Factory settings Display of the signal strength ― Automatic adjustment with free path ― Automatic adjustment with covered path ― Manual adjustment with free path ― Manual adjustment with covered path ―...
  • Page 30 Soliwave FDR56/FQR56 Endress+Hauser...
  • Page 31 Soliwave FDR56/FQR56 Endress+Hauser...
  • Page 32 *71518769* 71518769 www.addresses.endress.com...
