Brief Operating Instructions

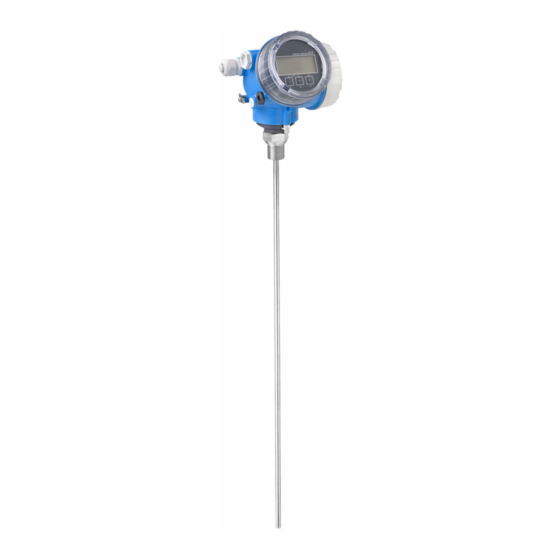

Levelflex FMP50
FOUNDATION Fieldbus
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser FOUNDATION Fieldbus Levelflex FMP50

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2: Associated Documentation

    Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury.
  • Page 3 Symbols for certain types of information and graphics  Permitted Procedures, processes or actions that are permitted  Forbidden Procedures, processes or actions that are forbidden  Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Endress+Hauser...
  • Page 4: Basic Safety Instructions

    ‣ Measured process variables: level ‣ Calculable process variables: volume or mass in any shape of vessel (calculated from the level by the linearization functionality) Endress+Hauser...
  • Page 5: Workplace Safety

    The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
  • Page 6: Product Safety

    • Are the goods undamaged? • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Endress+Hauser...
  • Page 7: Product Identification

    ‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the camera  All of the information on the measuring device and on the scope of the technical documentation pertaining to the device is displayed.
  • Page 8: Mounting Requirements

    Mounting Levelflex FMP50 FOUNDATION Fieldbus Mounting Mounting requirements 5.1.1 Suitable mounting position A0012606  1 Installation conditions for Levelflex Endress+Hauser...
  • Page 9 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit Endress+Hauser...
  • Page 10 Sleeve with narrow bore to ensure electrical contact between the sleeve and the rod. Short metal pipe, e.g. welded in place Probe Ø 8 mm (0.31 in) • a < Ø 14 mm (0.55 in) • b = Ø 8.5 mm (0.34 in) Endress+Hauser...
  • Page 11: Mounting The Device

    40 bar (only FMP51, no seal is included with FMP54): • Thread 3/4": 25 Nm • Thread 1-1/2": 140 Nm • When installing in metal vessels, ensure there is good metal contact between the process connection and the vessel. Endress+Hauser...
  • Page 12 To provide easier access to the connection compartment or display module, the transmitter housing can be turned: max. 350° 8 mm 8 mm A0032242 Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Endress+Hauser...
  • Page 13 Turn the display module to the desired position: Max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Endress+Hauser...
  • Page 14: Electrical Connection

    Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the electronics compartment cover with 2.5 Nm. Electrical connection Connecting requirements 6.1.1 Terminal assignment Endress+Hauser...
  • Page 15 Cable screen; observe cable specification Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector) 6.1.2 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. Endress+Hauser...
  • Page 16 • Ex ia + Ex d[ia] / IS + XP Feature 020 in the product structure Feature 010 in the product structure Input voltages up to 35 V do not destroy the device. Polarity-dependent FISCO/FNICO compliant according to IEC 60079-27 6.1.4 Overvoltage protection See Operating Instructions. Endress+Hauser...
  • Page 17: Connecting The Device

    Loosen the screw of the securing clamp of the connection compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the connection compartment cover and check the cover seal; replace it if necessary. 6.2.2 Connecting A0036418  5 Engineering unit: mm (in) Endress+Hauser...
  • Page 18  6 Engineering unit: mm (in) To remove the cable from the terminal again: Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes Simultaneously pull the cable end out of the terminal. Endress+Hauser...
  • Page 19: Operation Options

    2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare and Fieldcare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions Endress+Hauser...
  • Page 20: Structure And Function Of The Operating Menu

    Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist;  marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser...
  • Page 21 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...
  • Page 22 When you call up the "Expert" menu, you are always asked for an access code. If a customer-specific access code has not been defined, "0000" must be entered. 7.2.1 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: Endress+Hauser...
  • Page 23: Switching On The Device

    Disabling write protection If the device is write-protected, write protection must first be disabled. See the Operating Instructions of the device for this purpose: BA01051F (FMP50, FOUNDATION Fieldbus) Setting the operating language Factory setting: English or ordered local language Endress+Hauser...
  • Page 24 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420  9 Taking the example of the local display Endress+Hauser...
  • Page 25: Device Configuration

     Specify the diameter of the bypass or stilling well. Setup → Medium group  Specify the medium group (Others or Water based (DC >= 4)) Setup → Empty calibration  Specify the empty distance E (distance from the reference point R to the 0% mark). Endress+Hauser...
  • Page 26 10. Setup → Signal quality  Displays the signal quality of the analyzed level echo (for verification purposes). 11. Setup → Mapping  →  Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map. Endress+Hauser...
