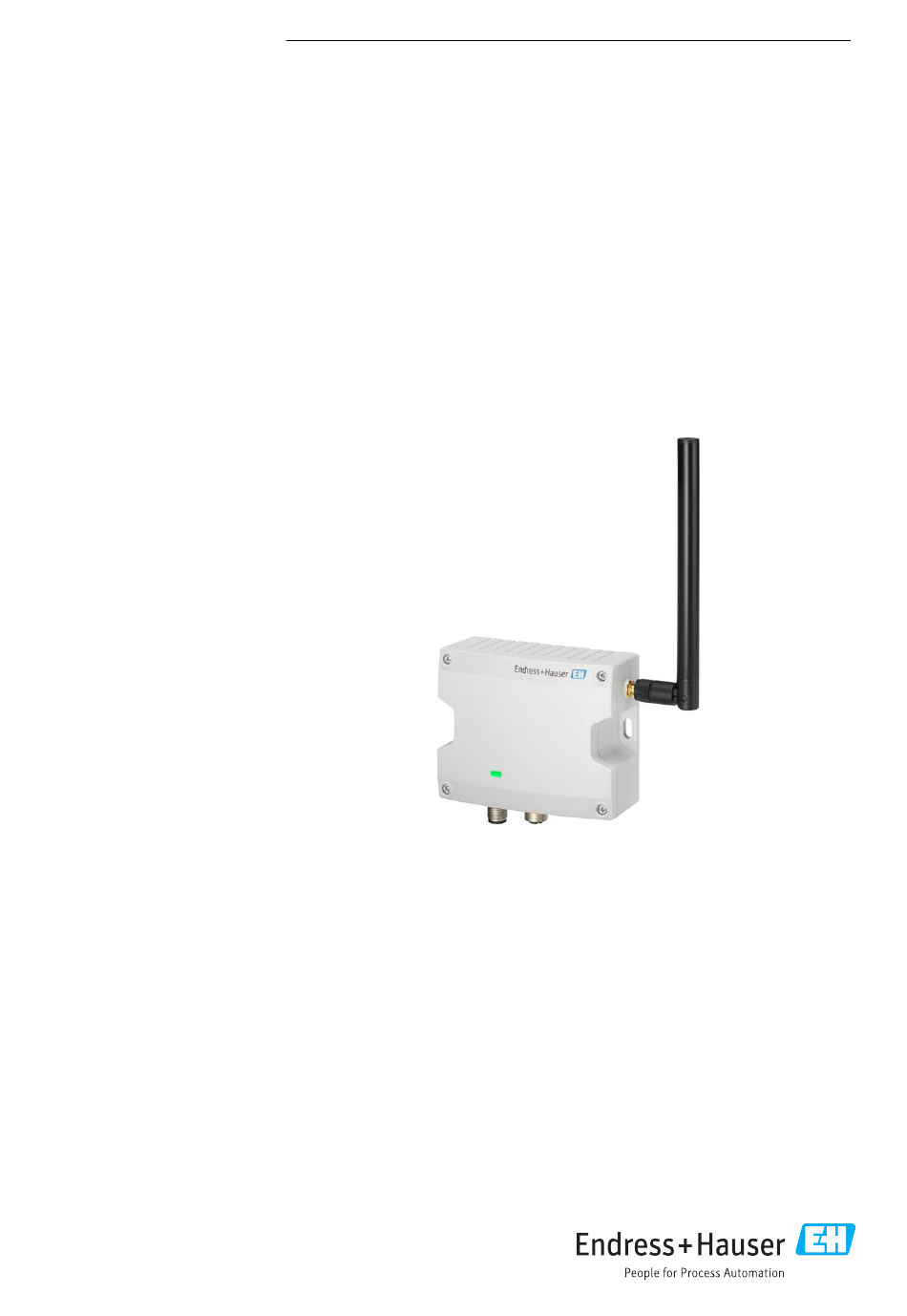

- Page 1 Products Solutions Services KA01428S/04/EN/01.19 71447688 2019-07-15 Brief Operating Instructions FieldEdge SGC200 Bluetooth edge device for connecting measuring technology to the Netilion Platform...
-
Page 2: Table Of Contents
Table of contents FieldEdge SGC200 Table of contents About this document ............. . 2 Symbols used . - Page 3 FieldEdge SGC200 About this document CAUTION This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or medium injury. NOTICE This symbol contains information on procedures and other facts which do not result in personal injury.
-
Page 4: Basic Safety Instructions
The operator is responsible for interference-free operation of the device. Product safety The FieldEdge SGC200 meets the legal requirements of the relevant EU directives. Endress+Hauser has affixed the CE mark as confirmation that the FieldEdge SGC200 has been successfully tested. Endress+Hauser... -
Page 5: Product Description
Connection to the web is via an integrated LTE modem with a global SIM card. The transmitted data can be retrieved directly via a REST JSON Application Programming Interface (API) and integrated into the user application. The FieldEdge SGC200 is configured via the SmartBlue app. -
Page 6: Product Identification
Incoming acceptance and product identification FieldEdge SGC200 Product identification 4.2.1 Nameplate 2 FieldEdge SGC200 nameplate 4.2.2 Manufacturer's address Endress+Hauser Process Solutions AG Christoph Merian-Ring 12 CH-4153 Reinach Switzerland www.endress.com Storage and transport Always use the original packaging when transporting the product. -
Page 7: Installation
Installation Installation Installation conditions Please note the following to ensure correct operation of the FieldEdge SGC200: • Fit the LTE antenna supplied or ordered as an optional extra on the device • Connect the device to a power supply • Use the SmartBlue app → 11 to determine the best location for the device •... - Page 8 Installation FieldEdge SGC200 118,44 (4.65) 110 (4.33) 40 (1.57) 97,5 (3.82) 3 Dimensions of SCG200 edge device, engineering unit: mm (in) 5.2.1 Installing the mounting bracket The mounting bracket can be ordered as an optional extra. Endress+Hauser...
-
Page 9: Post-Installation Check
FieldEdge SGC200 Installation 72 (2.83) 110 (4.33) 20,5 (0.79) 6 (0.24) 83 (3.27) 4 Dimensions of mounting bracket, engineering unit: mm (in) 5.2.2 Mounting the LTE antenna The remote LTE antenna can be ordered as an optional extra. Screw the LTE antenna onto the screw thread. The remote LTE antenna is supplied with a cable of 3 m in length. -
Page 10: Electrical Connection
‣ Do not operate the device without having the antenna connected. • Ensure the cable is de-energized when connecting to the FieldEdge SGC200 • Please follow the connection information in these Brief Operating Instructions • Supply voltage 8 to 30 V •... -
Page 11: Operation Options
Are all the cable glands tightened securely? Operation options The FieldEdge SGC200 can be operated via the Endress+Hauser SmartBlue app. SmartBlue is available as a download from the Google Play Store for Android devices and from the iTunes Store for iOS devices. -
Page 12: Commissioning
Commissioning FieldEdge SGC200 Commissioning Function check Is the distance between the FieldEdge SGC200 and Bluetooth devices 40 m max. in open space? Has a connection been established between the device and a cell phone network? Configuring the device 9.2.1... - Page 13 FieldEdge SGC200 Commissioning 9.2.4 Connecting the device to the Netilion Platform The device is supplied with a pre-configured Cloud connection. The green check is confirmation that the device is connected to the Netilion Platform. Access to device data via API: https://developer.netilion.endress.com/api...
- Page 14 Commissioning FieldEdge SGC200 9.2.5 Connecting the device to Bluetooth devices Use the following access details the first time you log in: • Username: "admin" • Password: "Device serial number" Tap on the menu icon. Select system. Endress+Hauser...
- Page 15 FieldEdge SGC200 Commissioning Select the available devices in the submenu. All of the available devices are displayed in the "Reachable Field Devices" section at the bottom. Endress+Hauser...
- Page 16 Commissioning FieldEdge SGC200 Select the devices that should be connected with the FieldEdge SGC200. Endress+Hauser...
- Page 17 FieldEdge SGC200 Commissioning Enter username and password. The device is displayed online in the live list. The device is fully configured and the transferred data are available in the Netilion Platform. Endress+Hauser...
- Page 18 Commissioning FieldEdge SGC200 Endress+Hauser...
