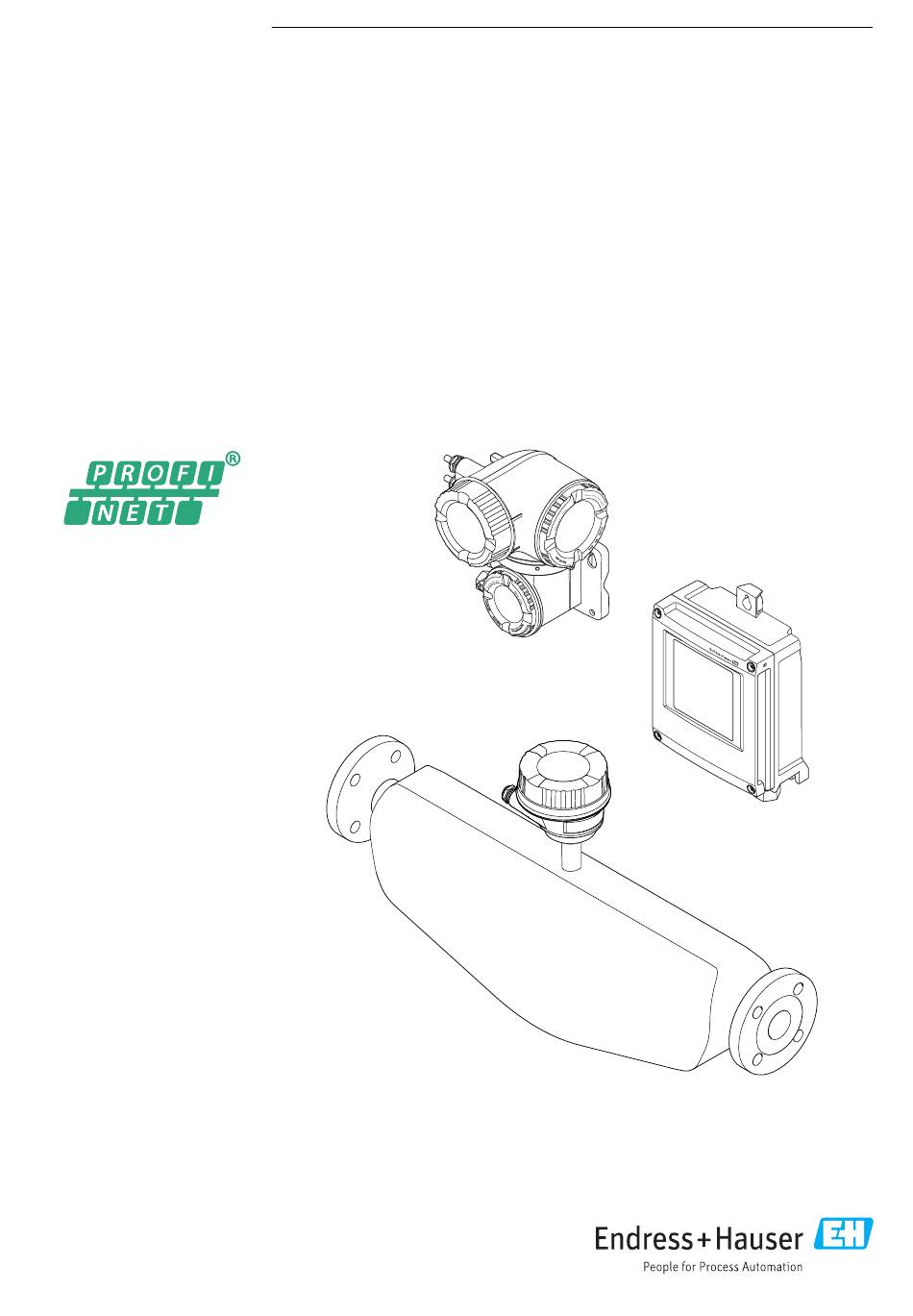

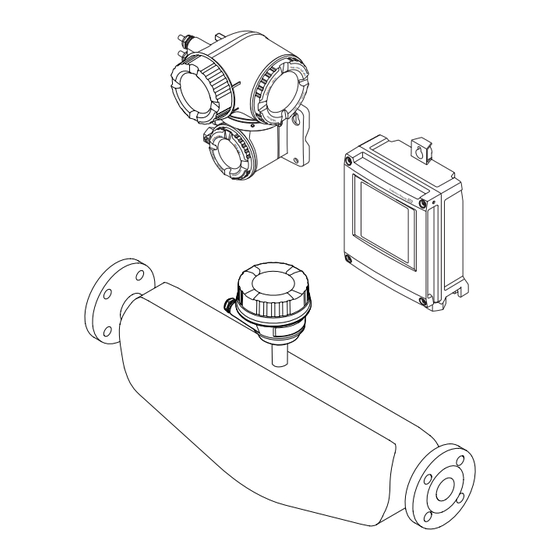

Page 1 Products Solutions Services BA01767D/06/EN/03.19 71451422 2019-09-16 Valid as of version 01.01.zz (Device firmware) Operating Instructions Proline Promass S 500 PROFINET Coriolis flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
Page 3: Table Of Contents
Proline Promass S 500 PROFINET Table of contents Table of contents About this document ....6 Installation ..... . . 23 Document function .
Page 4 Table of contents Proline Promass S 500 PROFINET Structure and function of the operating 10.5.2 Setting the system units ..menu ......
Page 5 13.2 Measuring and test equipment ... 239 13.3 Endress+Hauser services ....239 Repair ......240 14.1 General notes .
Page 6: About This Document
About this document Proline Promass S 500 PROFINET About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Tool Symbols
Proline Promass S 500 PROFINET About this document Symbol Meaning Light emitting diode is on. Light emitting diode is flashing. 1.2.4 Tool symbols Symbol Meaning Torx screwdriver Phillips head screwdriver Open-ended wrench 1.2.5 Symbols for certain types of information Symbol...
Page 8: Documentation
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →...
Page 9 Proline Promass S 500 PROFINET About this document TRI-CLAMP® Registered trademark of Ladish & Co., Inc., Kenosha, USA Endress+Hauser...
Page 10: Safety Instructions
Safety instructions Proline Promass S 500 PROFINET Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 11: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 12: It Security
Safety instructions Proline Promass S 500 PROFINET IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the settings.
Page 13: Access Via Web Server
Proline Promass S 500 PROFINET Safety instructions • User-specific access code Protect write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare). Access authorization is clearly regulated through the use of a user-specific access code.
Page 14: Access Via Service Interface (Cdi-Rj45)
Safety instructions Proline Promass S 500 PROFINET 2.7.4 Access via service interface (CDI-RJ45) The device can be connected to a network via the service interface (CDI-RJ45). Device- specific functions guarantee the secure operation of the device in a network. The use of relevant industrial standards and guidelines that have been defined by national and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended.
Page 15: Product Description
Proline Promass S 500 PROFINET Product description Product description The measuring system consists of a transmitter and a sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected by connecting cables. Product design Two versions of the transmitter are available.
Page 16 Product description Proline Promass S 500 PROFINET 3.1.2 Proline 500 Signal transmission: analog Order code for "Integrated ISEM electronics", option B "Transmitter" For use in applications required to meet special requirements due to ambient or operating conditions. As the electronics are located in the transmitter, the device is ideal in the event of: •...
Page 17: Incoming Acceptance And Product
Technical Documentation present? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...
Page 18: Transmitter Nameplate
 8 sections • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1 Transmitter nameplate Proline 500 –...
Page 19 Proline Promass S 500 PROFINET Incoming acceptance and product identification Proline 500 3 4 5 Order code: Ser. no.: Ext. ord. cd.: Date: A0029192  4 Example of a transmitter nameplate Manufacturing location Name of the transmitter Order code Serial number (ser. no.) Extended order code (ext.
Page 20: Sensor Nameplate
Incoming acceptance and product identification Proline Promass S 500 PROFINET 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199  5 Example of a sensor nameplate Name of the sensor Manufacturing location Order code Serial number (ser. no.) Extended order code (Ext.
Page 21: Symbols On Measuring Device
Proline Promass S 500 PROFINET Incoming acceptance and product identification 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.
Page 22: Storage And Transport
Storage and transport Proline Promass S 500 PROFINET Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
Page 23: Measuring Devices With Lifting Lugs
Proline Promass S 500 PROFINET Installation 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣ The device must always be secured at two lifting lugs at least.
Page 24 Installation Proline Promass S 500 PROFINET To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. • Directly upstream of a free pipe outlet in a down pipe.
Page 25 Proline Promass S 500 PROFINET Installation Orientation Recommendation Horizontal orientation, transmitter at bottom Exceptions: →  7,  25 A0015590 Horizontal orientation, transmitter at side A0015592 This orientation is recommended to ensure self-draining. Applications with low process temperatures may decrease the ambient temperature. To maintain the minimum ambient temperature for the transmitter, this orientation is recommended.
Page 26: Environment And Process Requirements
If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. You can order a weather protection cover from Endress+Hauser. →  242. System pressure It is important that cavitation does not occur, or that gases entrained in the liquids do not outgas.
Page 27: Special Mounting Instructions
Proline Promass S 500 PROFINET Installation NOTICE Electronics overheating on account of thermal insulation! ‣ Recommended orientation: horizontal orientation, sensor connection housing pointing downwards. ‣ Do not insulate the sensor connection housing. ‣ Maximum permissible temperature at the lower end of the sensor connection housing: 80 °C (176 °F)
Page 28 Installation Proline Promass S 500 PROFINET Sanitary compatibility When installing in hygienic applications, please refer to the information in the "Certificates and approvals/hygienic compatibility" section →  270. Securing with mounting clamp in the case of hygiene connections It is not necessary to provide additional support for the sensor for operational performance purposes.
Page 29: Mounting The Measuring Device
Proline Promass S 500 PROFINET Installation Protective cover 213 (8.4) 203 (8.0) A0029552  9 Weather protection cover for Proline 500 – digital 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  10 Weather protection cover for Proline 500 Mounting the measuring device 6.2.1...
Page 30: Mounting The Measuring Device
Installation Proline Promass S 500 PROFINET 3. Remove stick-on label on the electronics compartment cover. 6.2.3 Mounting the measuring device WARNING Danger due to improper process sealing! ‣ Ensure that the inside diameters of the gaskets are greater than or equal to that of the process connections and piping.
Page 31 Proline Promass S 500 PROFINET Installation ø TX 25 20…70 ø ( 0.79…2.75) SW 10 A0029051  11 Engineering unit mm (in) Wall mounting 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054  12 Engineering unit mm (in) Depends on order code for "Transmitter housing"...
Page 32: Mounting The Transmitter Housing: Proline 500
Installation Proline Promass S 500 PROFINET 6.2.5 Mounting the transmitter housing: Proline 500 CAUTION Ambient temperature too high! Danger of electronics overheating and housing deformation. ‣ Do not exceed the permitted maximum ambient temperature . ‣ If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in warm climatic regions.
Page 33: Turning The Transmitter Housing: Proline 500
Proline Promass S 500 PROFINET Installation Post mounting 20 70 … ( 0.79 to 2.75) SW 13 A0029057  14 Engineering unit mm (in) 6.2.6 Turning the transmitter housing: Proline 500 To provide easier access to the connection compartment or display module, the transmitter housing can be turned.
Page 34: Post-Installation Check
Installation Proline Promass S 500 PROFINET – – – 3 mm A0030035 1. Depending on the device version: Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Turn the display module to the desired position: max. 8 × 45° in each direction.
Page 35: Electrical Connection
Proline Promass S 500 PROFINET Electrical connection Electrical connection NOTICE The measuring device does not have an internal circuit breaker. ‣ For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
Page 36 Electrical connection Proline Promass S 500 PROFINET Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient. Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) •...
Page 37 Proline Promass S 500 PROFINET Electrical connection A: Connecting cable between sensor and transmitter: Proline 500 – digital Standard cable A standard cable with the following specifications can be used as the connecting cable. Design 4 cores (2 pairs); uninsulated stranded CU wires; pair-stranded with common...
Page 38 Electrical connection Proline Promass S 500 PROFINET Cross-section Cable length [max.] Termination 2 x 2 x 0.50 mm 50 m (165 ft) 2 x 2 x 0.50 mm (AWG 20) (AWG 20) BN WT YE GN • +, – = 0.5 mm •...
Page 39: Terminal Assignment
Proline Promass S 500 PROFINET Electrical connection C: Connecting cable between sensor and transmitter: Proline 500 Standard cable 6 × 0.38 mm PVC cable with common shield and individually shielded cores Conductor resistance ≤50 Ω/km (0.015 Ω/ft) Capacitance: core/shield ≤420 pF/m (128 pF/ft) Cable length (max.)
Page 40: Pin Assignment Of Device Plug
Electrical connection Proline Promass S 500 PROFINET 7.1.5 Pin assignment of device plug Assignment TD + RD + TD – RD – Coding Plug/socket A0032047 Socket 7.1.6 Preparing the measuring device Carry out the steps in the following order: 1. Mount the sensor and transmitter.
Page 41: Connecting The Measuring Device: Proline 500 - Digital
Proline Promass S 500 PROFINET Electrical connection Connecting the measuring device: Proline 500 - digital NOTICE Limitation of electrical safety due to incorrect connection! ‣ Have electrical connection work carried out by appropriately trained specialists only. ‣ Observe applicable federal/national installation codes and regulations.
Page 42 Electrical connection Proline Promass S 500 PROFINET Connecting the sensor connection housing via terminals For the device version with the order code for "Sensor connection housing": Option A "Aluminum coated" 10 (0.4) 3 mm TX 20 TX 20 22 mm...
Page 43 Proline Promass S 500 PROFINET Electrical connection Connecting the sensor connection housing via terminals For the device version with the order code for "Sensor connection housing": Option B "Stainless" 10 (0.4) 8 mm 22 mm 24 mm A0029613 1. Release the securing screw of the housing cover.
Page 44 Electrical connection Proline Promass S 500 PROFINET Connecting the sensor connection housing via the connector For the device version with the order code for "Sensor connection housing": Option C "Ultra-compact hygienic, stainless" A0029615 1. Connect the protective ground. 2. Connect the connector.
Page 45 Proline Promass S 500 PROFINET Electrical connection Connecting the connecting cable to the transmitter TX 20 TX 20 10 (0.4) 22 mm 24 mm A0029597 1. Loosen the 4 fixing screws on the housing cover. 2. Open the housing cover.
Page 46: Connecting The Transmitter
Electrical connection Proline Promass S 500 PROFINET 7.2.2 Connecting the transmitter A0028200 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output Terminal connection for connecting cable between sensor and transmitter Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45);...
Page 47 Proline Promass S 500 PROFINET Electrical connection 6. Connect the protective ground. 7. Plug in the RJ45 connector. 8. Firmly tighten the cable glands.  This concludes the PROFINET connection process. Connecting the supply voltage and additional inputs/outputs TX 20 TX 20 10 (0.4)
Page 48 Electrical connection Proline Promass S 500 PROFINET Removing a cable 3 (0.12) A0029598  15 Engineering unit mm (in) 1. To remove a cable from the terminal, use a flat-blade screwdriver to push the slot between the two terminal holes 2.
Page 49: Integrating The Transmitter Into A Network
Proline Promass S 500 PROFINET Electrical connection 7.2.3 Integrating the transmitter into a network This section only presents the basic options for integrating the device into a network. For information on the procedure to follow to connect the transmitter correctly →  41.
Page 50 Electrical connection Proline Promass S 500 PROFINET Integrating into a ring topology The device is integrated via the terminal connection for signal transmission (output 1) and the connection to the service interface (CDI-RJ45). Note the following when connecting: • Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector (e.g. brand: YAMAICHI ;...
Page 51: Connecting The Measuring Device: Proline 500
Proline Promass S 500 PROFINET Electrical connection Connecting the measuring device: Proline 500 NOTICE Limitation of electrical safety due to incorrect connection! ‣ Have electrical connection work carried out by appropriately trained specialists only. ‣ Observe applicable federal/national installation codes and regulations.
Page 52 Electrical connection Proline Promass S 500 PROFINET Connecting the sensor connection housing via terminals For the device version with the order code for "Housing": Option B "Stainless" 10 (0.4) 8 mm 22 mm 24 mm A0029613 1. Release the securing screw of the housing cover.
Page 53 Proline Promass S 500 PROFINET Electrical connection Connecting the connecting cable to the transmitter 10 (0.4) 3 mm 22 mm 24 mm A0029592 1. Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
Page 54: Connecting The Transmitter
Electrical connection Proline Promass S 500 PROFINET 7.3.2 Connecting the transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45) Protective earth (PE)
Page 55 Proline Promass S 500 PROFINET Electrical connection 22 mm 24 mm N ic t e r e r g ö f f iz e t e n s io r ir A0033722 7. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
Page 56 Electrical connection Proline Promass S 500 PROFINET 22 mm 24 mm – A0033984 4. Connect the cable in accordance with the terminal assignment .  Signal cable terminal assignment: The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
Page 57: Integrating The Transmitter Into A Network
Proline Promass S 500 PROFINET Electrical connection 7.3.3 Integrating the transmitter into a network This section only presents the basic options for integrating the device into a network. For information on the procedure to follow to connect the transmitter correctly →  51.
Page 58: Ensuring Potential Equalization
Electrical connection Proline Promass S 500 PROFINET Integrating into a ring topology The device is integrated via the terminal connection for signal transmission (output 1) and the connection to the service interface (CDI-RJ45). Note the following when connecting: • Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector (e.g. brand: YAMAICHI ;...
Page 59: Special Connection Instructions
Proline Promass S 500 PROFINET Electrical connection Special connection instructions 7.5.1 Connection examples PROFINET A0028767  17 Connection example for PROFINET Control system (e.g. PLC) Ethernet switch Observe cable specifications Device plug Transmitter PROFINET: MRP (Media Redundancy Protocol) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →...
Page 60 Electrical connection Proline Promass S 500 PROFINET PROFINET: system redundancy S2 A0039553  18 Connection example for system redundancy S2 Control system 1 (e.g. PLC) Synchronization of control systems Control system 2 (e.g. PLC) Industrial Ethernet Managed Switch Transmitter Current output 4-20 mA 4...20 mA...
Page 61 Proline Promass S 500 PROFINET Electrical connection Pulse/frequency output 12345 A0028761  21 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: Observe input values →  249 Switch output A0028760  22 Connection example for switch output (passive) Automation system with switch input (e.g.
Page 62: Hardware Settings
Electrical connection Proline Promass S 500 PROFINET Current input A0028915  24 Connection example for 4 to 20 mA current input Power supply Terminal box External measuring device (to read in pressure or temperature, for instance) Transmitter Status input A0028764 ...
Page 63 Proline Promass S 500 PROFINET Electrical connection Setting the device name using the DIP switches The last part of the device name can be set using DIP switches 1-8. The address range is between 1 and 254 (factory setting: serial number of the device )
Page 64 Electrical connection Proline Promass S 500 PROFINET 1 2 3 4 5 6 7 8 Name of Station A0034497 1. Loosen the 4 fixing screws on the housing cover. 2. Open the housing cover. 3. Fold open the terminal cover.
Page 65: Activating The Default Ip Address
Proline Promass S 500 PROFINET Electrical connection 5. Reconnect the device to the power supply.  The configured device address is used once the device is restarted. Setting the device name via the automation system DIP switches 1-8 must all be set to OFF (factory setting) or all be set to ON to be able to set the device name via the automation system.
Page 66: Ensuring The Degree Of Protection
Electrical connection Proline Promass S 500 PROFINET Activating the default IP address by DIP switch: Proline 500 Risk of electric shock when opening the transmitter housing. ‣ Before opening the transmitter housing: ‣ Disconnect the device from the power supply.
Page 67: Post-Connection Check
Proline Promass S 500 PROFINET Electrical connection Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables used meet the requirements?  Do the cables have adequate strain relief?  Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"...
Page 68: Operation Options
Operation options Proline Promass S 500 PROFINET Operation options Overview of operation options A0034513 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...
Page 69: Structure And Function Of The Operating
Proline Promass S 500 PROFINET Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: "Description of Device Parameters" document supplied with the device→  273...
Page 70: Operating Philosophy
Operation options Proline Promass S 500 PROFINET 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. Menu/parameter User role and tasks...
Page 71: Access To The Operating Menu Via The Local Display
Proline Promass S 500 PROFINET Operation options Access to the operating menu via the local display 8.3.1 Operational display X X X X X X X 1120.50 kg/h A0029348 Operational display Device tag Status area Display area for measured values (4-line) Operating elements→...
Page 72: Navigation View
Operation options Proline Promass S 500 PROFINET Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g. Totalizer 1 to 3).
Page 73 Proline Promass S 500 PROFINET Operation options Status area The following appears in the status area of the navigation view in the top right corner: • In the submenu • The direct access code for the parameter you are navigating to (e.g. 0022-1) •...
Page 74: Editing View
Operation options Proline Promass S 500 PROFINET 8.3.3 Editing view Numeric editor +0.000 Xx – A0034250  27 For entering values in parameters (e.g. limit values) Entry display area Input screen Confirm, delete or reject entry Operating elements Text editor...
Page 75 Proline Promass S 500 PROFINET Operation options Operating key(s) Meaning Enter key • Press the key briefly: confirm your selection. • Press the key for 2 s: confirm the entry. Escape key combination (press keys simultaneously) Close the editing view without accepting the changes.
Page 76: Operating Elements
Operation options Proline Promass S 500 PROFINET 8.3.4 Operating elements Operating key(s) Meaning Minus key In a menu, submenu Moves the selection bar upwards in a picklist. With a Wizard Confirms the parameter value and goes to the previous parameter.
Page 77 Proline Promass S 500 PROFINET Operation options Calling up and closing the context menu The user is in the operational display. 1. Press the  and  keys for longer than 3 seconds.  The context menu opens. XXXXXXXXXX Setup Conf.backup...
Page 78: Navigating And Selecting From List
Operation options Proline Promass S 500 PROFINET 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 79: Calling Up Help Text
Proline Promass S 500 PROFINET Operation options The direct access code consists of a 5-digit number (at maximum) and the channel number, which identifies the channel of a process variable: e.g. 00914-2. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 80: User Roles And Related Access Authorization
Operation options Proline Promass S 500 PROFINET Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN For a description of the editing view - consisting of the text editor and numeric editor - with symbols →  74, for a description of the operating elements →  76 8.3.10...
Page 81: Enabling And Disabling The Keypad
Proline Promass S 500 PROFINET Operation options 2. Enter the access code.  The -symbol in front of the parameters disappears; all previously write- protected parameters are now re-enabled. 8.3.12 Enabling and disabling the keypad lock The keypad lock makes it possible to block access to the entire operating menu via local operation.
Page 82: Prerequisites
Operation options Proline Promass S 500 PROFINET 8.4.2 Prerequisites Computer hardware Hardware Interface CDI-RJ45 WLAN Interface The computer must have an RJ45 The operating unit must have a interface. WLAN interface. Connection Standard Ethernet cable with RJ45 Connection via Wireless LAN.
Page 83: Establishing A Connection
Proline Promass S 500 PROFINET Operation options Measuring device: Via CDI-RJ45 service interface Device CDI-RJ45 service interface Measuring device The measuring device has an RJ45 interface. Web server Web server must be enabled; factory setting: ON  For information on enabling the Web server →  87...
Page 84 Operation options Proline Promass S 500 PROFINET The measuring device works with the Dynamic Configuration Protocol (DCP), on leaving the factory, i.e. the IP address of the measuring device is automatically assigned by the automation system (e.g. Siemens S7). To establish a network connection via the service interface (CDI-RJ45): set the "Default IP address"...
Page 85: Logging On
Proline Promass S 500 PROFINET Operation options 3. Enter the password: serial number of the measuring device ex-works (e.g. L100A802000).  LED on display module flashes: it is now possible to operate the measuring device with the Web browser, FieldCare or DeviceCare.
Page 86: User Interface
Operation options Proline Promass S 500 PROFINET 2. Enter the user-specific access code. 3. Press OK to confirm your entry. Access code 0000 (factory setting); can be changed by customer If no action is performed for 10 minutes, the Web browser automatically returns to the login page.
Page 87: Disabling The Web Server
Proline Promass S 500 PROFINET Operation options Functions Meaning Configuration and checking of all the parameters required for establishing the connection to Network the measuring device: configuration • Network settings (e.g. IP address, MAC address) • Device information (e.g. serial number, firmware version)
Page 88: Logging Out
Operation options Proline Promass S 500 PROFINET 8.4.7 Logging out Before logging out, perform a data backup via the Data management function (upload configuration from device) if necessary. 1. Select the Logout entry in the function row.  The home page with the Login box appears.
Page 89 Proline Promass S 500 PROFINET Operation options A0033719  31 Options for remote operation via PROFINET network: ring topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g.
Page 90 Operation options Proline Promass S 500 PROFINET Proline 500 transmitter A0027563  33 Connection via service interface (CDI-RJ45) Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"...
Page 91 Proline Promass S 500 PROFINET Operation options Function WLAN: IEEE 802.11 b/g (2.4 GHz) Encryption WPA2-PSK AES-128 (in accordance with IEEE 802.11i) Configurable WLAN channels 1 to 11 Degree of protection IP67 Available antennas • Internal antenna • External antenna (optional) In the event of poor transmission/reception conditions at the place of installation.
Page 92: Fieldcare
FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 93: Devicecare
DeviceCare Function scope Tool to connect and configure Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S Source for device description files See information →...
Page 94: System Integration
System integration Proline Promass S 500 PROFINET System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.01.zz • On the title page of the Operating instructions • On the transmitter nameplate • Firmware version Diagnostics →...
Page 95: Device Master File (Gsd)
Proline Promass S 500 PROFINET System integration Device master file (GSD) In order to integrate field devices into a bus system, the PROFINET system needs a description of the device parameters, such as output data, input data, data format and data volume.
Page 96: Cyclic Data Transmission
System integration Proline Promass S 500 PROFINET Cyclic data transmission 9.3.1 Overview of the modules The following tables shows which modules are available to the measuring device for cyclic data exchange. Cyclic data exchange is performed with an automation system.
Page 97 Proline Promass S 500 PROFINET System integration Selection: input variable Slot Input variables • Mass flow • Volume flow • Corrected volume flow • Density • Reference density • Temperature • Electronic temperature • Oscillation frequency 1 to 14 • Frequency fluctuation •...
Page 98 System integration Proline Promass S 500 PROFINET Application-specific Input module Transmit compensation values from the automation system to the measuring device. The Application-specific Input module cyclically transmits compensation values, including the status, from the automation system to the measuring device. The compensation value is depicted in the first four bytes in the form of a floating point number as per the IEEE 754 standard.
Page 99 Proline Promass S 500 PROFINET System integration Selection: device function Slot Device function Status (meaning) Empty pipe detection • 0 (device function not active) 1 to 14 • 1 (device function active) Low flow cut off Data structure Input data of Digital Input...
Page 100 System integration Proline Promass S 500 PROFINET Totalizer module The Totalizer module consists of the Totalizer Value, Totalizer Control and Totalizer Mode submodules. Totalizer Value submodule Transmit transmitter value from the device to the automation system. Totalizer modules cyclically transmit a selected totalizer value, along with the status, from the measuring device to the automation system via the Totalizer Value submodule.
Page 101 Proline Promass S 500 PROFINET System integration Selection: totalizer configuration Slot Sub-slot Value Control totalizer Balancing 15…17 Balance the positive flow Balance the negative flow Data structure of output data (Totalizer Mode submodule) Byte 1 Configuration variable Analog Output module Transmit compensation values from the automation system to the measuring device.
Page 102 System integration Proline Promass S 500 PROFINET Data structure Output data of Analog Output Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Measured value: floating point number (IEEE 754) Status Unit code Status coding →  104 Failsafe mode A failsafe mode can be defined for using the compensation values.
Page 103 Proline Promass S 500 PROFINET System integration Heartbeat Verification module Receive discrete output values from the automation system and transmit discrete input values from the measuring device to the automation system. The Heartbeat Verification module receives discrete output data from the automation system and transmits discrete input data from the measuring device to the automation system.
Page 104: Status Coding
System integration Proline Promass S 500 PROFINET Assigned device functions Slot Input variables Selection of the liquid type Data structure Concentration output data Byte 1 Control variable Liquid type Enum code Sucrose in water Glucose in water Fructose in water...
Page 105: Factory Setting
Proline Promass S 500 PROFINET System integration Status Coding (hex) Meaning UNCERTAIN - Initial value 0x4F A pre-defined value is output until a correct measured value is available again or until remedial measures have been carried out that change this status.
Page 106: Startup Configuration
System integration Proline Promass S 500 PROFINET 9.3.5 Startup configuration If startup configuration is enabled, the configuration of the most important device parameters is taken from the automation system and used. The following configuration is taken from the automation system.
Page 107: System Redundancy S2
Proline Promass S 500 PROFINET System integration System redundancy S2 A redundant layout with two automation systems is necessary for processes that are in continuous operation. If one system fails the second system guarantees continued, uninterrupted operation. The measuring device supports S2 system redundancy and can communicate with both automation systems simultaneously.
Page 108: Commissioning
Commissioning Proline Promass S 500 PROFINET Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist→  34 • "Post-connection check" checklist →  67 10.2...
Page 109: Configuring The Measuring Device
Proline Promass S 500 PROFINET Commissioning 10.5 Configuring the measuring device • The Setup menu with its guided wizards contains all the parameters needed for standard operation. • Navigation to the Setup menu X X X X X X X 20.50...
Page 110: Defining The Tag Name
Commissioning Proline Promass S 500 PROFINET ‣ Relay output 1 to n →  127 ‣ Display →  129 ‣ Low flow cut off →  132 ‣ Partially filled pipe detection →  133 ‣ →  134 Advanced setup 10.5.1...
Page 111 Proline Promass S 500 PROFINET Commissioning Corrected volume unit →  111 Density unit →  111 Reference density unit →  111 Temperature unit →  112 →  112 Pressure unit Parameter overview with brief description Parameter Description...
Page 112: 10.5.3 Displaying The Communication
Commissioning Proline Promass S 500 PROFINET Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Result • °F The selected unit applies for: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...
Page 113 Proline Promass S 500 PROFINET Commissioning Parameter Description User interface / User entry Factory setting Subnet mask Displays the subnet mask. 4 octet: 0 to 255 (in the 255.255.255.0 particular octet) If the DHCP client is switched off and write access is enabled, the Subnet mask can also be entered.
Page 114: Interface
Commissioning Proline Promass S 500 PROFINET 10.5.4 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Select medium ‣ Medium selection →...
Page 115: Configuring The Current Input
Proline Promass S 500 PROFINET Commissioning I/O module 1 to n information →  115 I/O module 1 to n type →  115 Apply I/O configuration →  115 I/O alteration code →  115 Parameter overview with brief description...
Page 116: Configuring The Status Input
Commissioning Proline Promass S 500 PROFINET Current span →  116 Failure mode →  116 Failure value →  116 Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User entry Terminal number – Shows the terminal numbers •...
Page 117: Configuring The Current Output
Proline Promass S 500 PROFINET Commissioning Active level →  117 Terminal number →  117 Response time status input →  117 Terminal number →  117 Parameter overview with brief description Parameter Description User interface / Selection / Factory setting User entry...
Page 118 Commissioning Proline Promass S 500 PROFINET Damping output 1 to n →  119 Failure mode →  119 Failure current →  119 Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User entry Terminal number –...
Page 119 Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry Current span – Select current range for • 4...20 mA NAMUR Country-specific: process value output and (3.8...20.5 mA) • 4...20 mA NAMUR upper/lower level for alarm •...
Page 120: Configuring The Pulse/Frequency
Commissioning Proline Promass S 500 PROFINET 10.5.9 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 121 Proline Promass S 500 PROFINET Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode – Define the output as a pulse, • Pulse Pulse frequency or switch output. • Frequency • Switch Terminal number –...
Page 122 Commissioning Proline Promass S 500 PROFINET Configuring the frequency output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  122 Terminal number →  122 Signal mode →  122 →  123...
Page 123 Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign frequency output The Frequency option is Select process variable for • Off selected in the Operating frequency output. • Mass flow mode parameter (→  120).
Page 124 Commissioning Proline Promass S 500 PROFINET Parameter Prerequisite Description Selection / User Factory setting interface / User entry Measuring value at minimum The Frequency option is Enter measured value for Signed floating-point Depends on country frequency selected in the Operating minmum frequency. number and nominal mode parameter (→...
Page 125 Proline Promass S 500 PROFINET Commissioning Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  125 Terminal number →  125 Signal mode →  125 →  126...
Page 126 Commissioning Proline Promass S 500 PROFINET Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function The Switch option is selected Select function for switch • Off in the Operating mode output. • On parameter. • Diagnostic behavior • Limit •...
Page 127: 10.5.10 Configuring The Relay Output
Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch-on value • The Switch option is Enter measured value for the Signed floating-point Country-specific: selected in the Operating switch-on point. number • 0 kg/h mode parameter.
Page 128 Commissioning Proline Promass S 500 PROFINET Switch-on value →  129 Failure mode →  129 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Relay output function – Select the function for the • Closed Closed relay output.
Page 129: 10.5.11 Configuring The Local Display
Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign status In the Relay output function Select device status for switch • Partially filled pipe Partially filled pipe parameter, the Digital Output output. detection detection option is selected.
Page 130 Commissioning Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 131 Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting entry 100% bargraph value 1 A local display is provided. Enter 100% value for bar Signed floating-point Depends on country graph display. number and nominal diameter Value 2 display A local display is provided.
Page 132: 10.5.12 Configuring The Low Flow Cut Off
Commissioning Proline Promass S 500 PROFINET 10.5.12 Configuring the low flow cut off The Low flow cut off wizard systematically guides the user through all the parameters that must be set to configure low flow cut off. Navigation "Setup" menu → Low flow cut off ‣...
Page 133: Configuring The Partial Filled Pipe
Proline Promass S 500 PROFINET Commissioning 10.5.13 Configuring the partial filled pipe detection The Partial filled pipe detection wizard guides you systematically through all parameters that have to be set for configuring the monitoring of the pipe filling. Navigation "Setup" menu → Partially filled pipe detection ‣...
Page 134: Advanced Settings
Commissioning Proline Promass S 500 PROFINET 10.6 Advanced settings The Advanced setup submenu together with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu Display language English Display/operat.
Page 135: Using The Parameter To Enter The Access Code
Proline Promass S 500 PROFINET Commissioning ‣ WLAN settings →  142 ‣ Concentration ‣ Heartbeat setup ‣ Configuration backup →  144 ‣ →  145 Administration 10.6.1 Using the parameter to enter the access code Navigation "Setup" menu → Advanced setup...
Page 136: Carrying Out A Sensor Adjustment
Commissioning Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Corrected volume flow calculation – Select reference density for • Fixed reference Calculated reference calculating the corrected density density volume flow.
Page 137: Configuring The Totalizer
Proline Promass S 500 PROFINET Commissioning Parameter overview with brief description Parameter Description Selection Factory setting Installation direction Set sign of flow direction to match the • Flow in arrow direction Flow in arrow direction direction of the arrow on the sensor.
Page 138 Commissioning Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Description Selection Factory setting Assign process variable Select process variable for totalizer. • Volume flow Volume flow • Mass flow • Corrected volume flow • Total mass flow •...
Page 139: Carrying Out Additional Display Configurations
Proline Promass S 500 PROFINET Commissioning 10.6.5 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣ Display Format display →...
Page 140 Commissioning Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 141 Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting entry 100% bargraph value 1 A local display is provided. Enter 100% value for bar Signed floating-point Depends on country graph display. number and nominal diameter Decimal places 1...
Page 142: Wlan Configuration
Commissioning Proline Promass S 500 PROFINET Parameter Prerequisite Description Selection / User Factory setting entry Display interval A local display is provided. Set time measured values are 1 to 10 s shown on display if display alternates between values. Display damping A local display is provided.
Page 143 Proline Promass S 500 PROFINET Commissioning WLAN MAC address WLAN passphrase →  143 WLAN MAC address Assign SSID name →  143 →  144 SSID name Connection state →  144 Received signal strength →  144 Parameter overview with brief description...
Page 144: Configuration Management
Commissioning Proline Promass S 500 PROFINET Parameter Prerequisite Description Selection / User Factory setting entry / User interface SSID name • The User-defined option is Enter the user-defined SSID Max. 32-digit EH_device selected in the Assign SSID name (max. 32 characters). character string designation_last 7 name parameter.
Page 145: Using Parameters For Device Administration
Proline Promass S 500 PROFINET Commissioning Parameter Description User interface / Selection Factory setting Backup state Shows the current status of data saving or • None None restoring. • Backup in progress • Restoring in progress • Delete in progress • Compare in progress •...
Page 146 Commissioning Proline Promass S 500 PROFINET Using the parameter to define the access code Navigation "Setup" menu → Advanced setup → Administration → Define access code ‣ Define access code Define access code →  146 Confirm access code →  146...
Page 147: Simulation
Proline Promass S 500 PROFINET Commissioning Parameter overview with brief description Parameter Description Selection Factory setting Device reset Reset the device configuration - either • Cancel Cancel entirely or in part - to a defined state. • To delivery settings •...
Page 148 Commissioning Proline Promass S 500 PROFINET Switch status 1 to n →  149 Device alarm simulation →  149 Diagnostic event category →  149 Diagnostic event simulation →  149 Parameter overview with brief description Parameter Prerequisite Description Selection / User...
Page 149 Proline Promass S 500 PROFINET Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface Pulse output simulation 1 to n In the Operating mode Set and switch off the pulse • Off parameter, the Pulse option is output simulation. • Fixed value selected.
Page 150: Protecting Settings From Unauthorized
Commissioning Proline Promass S 500 PROFINET 10.8 Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: • Protect access to parameters via access code →  150 •...
Page 151: Write Protection Via Write Protection
Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus For a reset code, contact your Endress+Hauser service organization. 1. Navigate to the Reset access code parameter (→  146). 2. Enter the reset code.
Page 152 Commissioning Proline Promass S 500 PROFINET A0029673 1. Open the housing cover. 2. Remove the display module. 3. Fold open the terminal cover. 4. Setting the write protection (WP) switch on the main electronics module to the ON position enables hardware write protection.
Page 153 Proline Promass S 500 PROFINET Commissioning Proline 500 A0029630 Setting the write protection (WP) switch on the main electronics module to the ON position enables hardware write protection.  In the Locking status parameter the Hardware locked option is displayed →...
Page 154: Operation
Operation Proline Promass S 500 PROFINET Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access status displayed in the Access status parameter applies →  80. Only appears on local display.
Page 155: Measured Variables" Submenu
Proline Promass S 500 PROFINET Operation 11.4.1 "Measured variables" submenu The Measured variables submenu contains all the parameters needed to display the current measured values for each process variable. Navigation "Diagnostics" menu → Measured values → Measured variables ‣ Measured variables →...
Page 156: Totalizer
Operation Proline Promass S 500 PROFINET Parameter Prerequisite Description User interface Reference density – Displays the reference density that is Signed floating-point currently calculated. number Dependency The unit is taken from the Reference density unit parameter (→  111). Temperature –...
Page 157: Input Values" Submenu
Proline Promass S 500 PROFINET Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign process variable – Select process variable for • Volume flow Volume flow totalizer. • Mass flow • Corrected volume flow •...
Page 158: Output Values
Operation Proline Promass S 500 PROFINET Navigation "Diagnostics" menu → Measured values → Input values → Current input 1 to n ‣ Current input 1 to n →  158 Measured values 1 to n →  158 Measured current 1 to n...
Page 159 Proline Promass S 500 PROFINET Operation ‣ Pulse/frequency/switch output →  159 1 to n ‣ Relay output 1 to n →  160 Output values of current output The Value current output submenu contains all the parameters needed to display the current measured values for every current output.
Page 160: Adapting The Measuring Device To The Process
Operation Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Prerequisite Description User interface Output frequency 1 to n In the Operating mode parameter, the Displays the value currently measured 0.0 to 12 500.0 Hz Frequency option is selected.
Page 161: Function Scope Of The "Control Totalizer" Parameter
Proline Promass S 500 PROFINET Operation Navigation "Operation" menu → Totalizer handling ‣ Totalizer handling →  161 Control Totalizer 1 to n →  161 Preset value 1 to n Reset all totalizers →  161 Parameter overview with brief description...
Page 162: Showing Data Logging
Operation Proline Promass S 500 PROFINET 11.7 Showing data logging The Extended HistoROM application package must be enabled in the device (order option) for the Data logging submenu to appear. This contains all the parameters for the measured value history.
Page 163 Proline Promass S 500 PROFINET Operation Data logging status →  165 Entire logging duration →  165 ‣ Display channel 1 ‣ Display channel 2 ‣ Display channel 3 ‣ Display channel 4 Endress+Hauser...
Page 164 Operation Proline Promass S 500 PROFINET Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 1 The Extended HistoROM Assign process variable to • Off application package is logging channel. • Mass flow available.
Page 165 Proline Promass S 500 PROFINET Operation Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 3 The Extended HistoROM Assign process variable to Picklist, see Assign application package is logging channel. channel 1 parameter available. (→  164) ...
Page 166: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Solution Local display dark and no output Supply voltage does not match the Apply the correct supply voltage . signals value indicated on the nameplate.
Page 167 Proline Promass S 500 PROFINET Diagnostics and troubleshooting For output signals Error Possible causes Solution Signal output outside the valid Main electronics module is Order spare part →  240. range defective. Device shows correct value on local Configuration error...
Page 168 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Error Possible causes Solution Apart from the active network • Make sure that no other network connection to the measuring device, connections are established by other network connections are also the computer (also no WLAN) being used.
Page 169: Diagnostic Information Via Light Emitting
Proline Promass S 500 PROFINET Diagnostics and troubleshooting For system integration Error Possible causes Solution The device name is not displayed A device name containing one or Specify a correct device name correctly and contains coding. more underscores has been...
Page 170 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Color Meaning Flashing red A diagnostic event with "Warning" diagnostic behavior has occurred. A diagnostic event with "Alarm" diagnostic behavior has occurred. Flashing red/green The device restarts. Device status (during Flashes red slowly If >...
Page 171: Sensor Connection Housing
Proline Promass S 500 PROFINET Diagnostics and troubleshooting Color Meaning Flashing green Device is not configured. Flashing red A diagnostic event with "Warning" diagnostic behavior has occurred. A diagnostic event with "Alarm" diagnostic behavior has occurred. Flashing red/green The device restarts.
Page 172 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Color Meaning Communication White Communication active. Device status (normal Problem operation) Flashing red Warning Device status (during Flashes red slowly If > 30 seconds: problem with the boot loader. start-up) Flashes red quickly If >...
Page 173: Diagnostic Information On Local Display
Proline Promass S 500 PROFINET Diagnostics and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Operational display in alarm condition...
Page 174 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning Measurement is resumed. The signal outputs and totalizers are not affected. A diagnostic message is generated.
Page 175: Calling Up Remedial Measures
Proline Promass S 500 PROFINET Diagnostics and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 176: Calling Up Remedy Information
Diagnostics and troubleshooting Proline Promass S 500 PROFINET A0031056 Status area with status signal Diagnostic information Remedy information with Service ID In addition, diagnostic events which have occurred can be shown in the Diagnostics menu: • Via parameter →  232 •...
Page 177: Calling Up Remedy Information
Proline Promass S 500 PROFINET Diagnostics and troubleshooting Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F)
Page 178: Adapting The Diagnostic Information
Diagnostics and troubleshooting Proline Promass S 500 PROFINET 12.6 Adapting the diagnostic information 12.6.1 Adapting the diagnostic behavior Each item of diagnostic information is assigned a specific diagnostic behavior at the factory. The user can change this assignment for specific diagnostic information in the Diagnostic behavior submenu.
Page 179 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Supported status information Status Coding (hex) BAD - Maintenance alarm 0x24 BAD - Process related 0x28 BAD - Function check 0x3C UNCERTAIN - Initial value 0x4F UNCERTAIN - Maintenance demanded 0x68 UNCERTAIN - Process related...
Page 180 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Measured value status (fixed assignment) Diagnostic behavior Device diagnosis Quality Coding Category (configurable) (fixed assignment) Quality Substatus (hex) (NE107) Logbook entry only GOOD 0x80 to 0x8E – – Diagnostic information 302 Measured value status (fixed assignment)
Page 181: Overview Of Diagnostic Information
Proline Promass S 500 PROFINET Diagnostics and troubleshooting 12.7 Overview of diagnostic information • The amount of diagnostic information and the number of measured variables affected increase if the measuring device has one or more application packages. • All of the measured variables affected in the entire Promass instrument family are always listed under "Measured variables affected".
Page 182 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 046 Sensor limit exceeded 1. Inspect sensor 2. Check process condition Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83...
Page 183 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 062 Sensor connection faulty 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status 3. Replace sensor...
Page 184 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 082 Data storage 1. Check module connections 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 185 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 083 Memory content 1. Restart device 2. Restore HistoROM S-DAT backup (' D evice reset' parameter) Measured variable status 3. Replace HistoROM S-DAT Quality Quality substatus...
Page 186 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 140 Sensor signal asymmetrical 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status [from the factory] 3.
Page 187 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 144 Measurement error too high 1. Check or change sensor 2. Check process conditions Measured variable status [from the factory] Quality Good Quality substatus Coding (hex)
Page 188: Diagnostic Of Electronic
Diagnostics and troubleshooting Proline Promass S 500 PROFINET 12.7.2 Diagnostic of electronic Diagnostic information Remedy instructions Short text 201 Device failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 189 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 242 Software incompatible 1. Check software 2. Flash or change main electronics module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 190 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 252 Modules incompatible 1. Check electronic modules 2. Check if correct modules are available (e.g. NEx, Ex) Measured variable status 3. Replace electronic modules Quality Quality substatus...
Page 191 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 262 Sensor electronic connection faulty 1. Check or replace connection cable between sensor electronic module (ISEM) and main electronics Measured variable status 2. Check or replace ISEM or main electronics...
Page 192 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 270 Main electronic failure Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 193 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 271 Main electronic failure 1. Restart device 2. Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 194 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 272 Main electronic failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 195 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 273 Main electronic failure Change electronic Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 196 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 276 I/O module 1 to n faulty 1. Restart device 2. Change I/O module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 197 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 302 Device verification active Device verification active, please wait. Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior...
Page 198 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 311 Electronic failure 1. Do not reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 199 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 332 Writing in HistoROM backup failed Replace user interface board Ex d/XP: replace transmitter Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 200 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 372 Sensor electronic (ISEM) faulty 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace sensor electronic module (ISEM) Quality Quality substatus Maintenance alarm...
Page 201 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 373 Sensor electronic (ISEM) faulty 1. Transfer data or reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 202 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 375 I/O- 1 to n communication failed 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace module rack inclusive electronic modules Quality...
Page 203 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 382 Data storage 1. Insert T-DAT 2. Replace T-DAT Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 204 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 383 Memory content 1. Restart device 2. Delete T-DAT via ' R eset device' parameter Measured variable status 3. Replace T-DAT Quality Quality substatus Maintenance alarm...
Page 205: Diagnostic Of Configuration
Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 387 HistoROM data faulty Contact service organization Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 206 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 331 Firmware update failed 1. Update firmware of device 2. Restart device Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 207 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 410 Data transfer 1. Check connection 2. Retry data transfer Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 208 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 412 Processing download Download active, please wait Measured variable status Quality Uncertain Quality substatus Initial value Coding (hex) 0x4C to 0x4F Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 209 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 437 Configuration incompatible 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 210 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 438 Dataset 1. Check data set file 2. Check device configuration Measured variable status 3. Up- and download new configuration Quality Uncertain Quality substatus Maintenance demanded...
Page 211 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 442 Frequency output 1 to n 1. Check process 2. Check frequency output settings Measured variable status [from the factory] Quality Good Quality substatus Coding (hex)
Page 212 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 453 Flow override Deactivate flow override Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 213 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 484 Failure mode simulation Deactivate simulation Measured variable status Quality Quality substatus Function check Coding (hex) 0x3C to 0x3F Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 214 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 485 Measured variable simulation Deactivate simulation Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 215 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 491 Current output 1 to n simulation Deactivate simulation Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior Warning Influenced measured variables –...
Page 216 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 494 Switch output simulation 1 to n Deactivate simulation switch output Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 217 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 520 I/O 1 to n hardware configuration invalid 1. Check I/O hardware configuration 2. Replace wrong I/O module Measured variable status 3. Plug the module of double pulse output on correct slot...
Page 218: Diagnostic Of Process
Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 537 Configuration 1. Check IP addresses in network 2. Change IP address Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal...
Page 219 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 830 Sensor temperature too high Reduce ambient temp. around the sensor housing Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83...
Page 220 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 831 Sensor temperature too low Increase ambient temp. around the sensor housing Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83...
Page 221 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 832 Electronic temperature too high Reduce ambient temperature Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 222 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 833 Electronic temperature too low Increase ambient temperature Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 223 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 834 Process temperature too high Reduce process temperature Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 224 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 835 Process temperature too low Increase process temperature Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 225 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 842 Process limit Low flow cut off active! 1. Check low flow cut off configuration Measured variable status [from the factory] Quality Good Quality substatus Coding (hex)
Page 226 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 882 Input signal 1. Check input configuration 2. Check external device or process conditions Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 227 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 910 Tubes not oscillating 1. Check electronic 2. Inspect sensor Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 228 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 912 Medium inhomogeneous 1. Check process cond. 2. Increase system pressure Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83...
Page 229 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 913 Medium unsuitable 1. Check process conditions 2. Check electronic modules or sensor Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83...
Page 230 Diagnostics and troubleshooting Proline Promass S 500 PROFINET Diagnostic information Remedy instructions Short text 942 API density out of specification 1. Check process density with selected API commodity group 2. Check API related parameters Measured variable status [from the factory]...
Page 231 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 944 Monitoring failed Check process conditions for Heartbeat Monitoring Measured variable status [from the factory] Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal...
Page 232: Pending Diagnostic Events
Diagnostics and troubleshooting Proline Promass S 500 PROFINET 12.8 Pending diagnostic events The Diagnostics menu allows the user to view the current diagnostic event and the previous diagnostic event separately. To call up the measures to rectify a diagnostic event: •...
Page 233: 12.10 Event Logbook
Proline Promass S 500 PROFINET Diagnostics and troubleshooting / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  41 Taking the example of the local display To call up the measures to rectify a diagnostic event: • Via local display →  175 •...
Page 234: 12.10.2 Filtering The Event Logbook
Diagnostics and troubleshooting Proline Promass S 500 PROFINET 12.10.2 Filtering the event logbook Using the Filter options parameter you can define which category of event message is displayed in the Events list submenu. Navigation path Diagnostics → Event logbook → Filter options Filter categories •...
Page 235: 12.11 Resetting The Measuring Device
Proline Promass S 500 PROFINET Diagnostics and troubleshooting Info number Info name I1457 Measurement error verification failed I1459 I/O module verification failed I1460 HBSI verification failed I1461 Sensor verification failed I1462 Sensor electronic module verific. failed I1512 Download started I1513...
Page 236: 12.12 Device Information
Diagnostics and troubleshooting Proline Promass S 500 PROFINET Options Description Restart device The restart resets every parameter whose data are in the volatile memory (RAM) to the factory setting (e.g. measured value data). The device configuration remains unchanged. Restore S-DAT backup Restore the data that are saved on the S-DAT.
Page 237 Proline Promass S 500 PROFINET Diagnostics and troubleshooting Parameter Description User interface Factory setting Device name Shows the name of the transmitter. Promass 300/500 –  The name can be found on the nameplate of the transmitter. Order code Shows the device order code.
Page 238: 12.13 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: • Product root: e.g. 8S5B The product root is the first part of the order code: see the nameplate on the device.
Page 239: Maintenance
Observe the inside diameter of the measuring tube and process connection. 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
Page 240: Repair
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 241: Disposing Of The Measuring Device
Proline Promass S 500 PROFINET Repair WARNING Danger to persons from process conditions. ‣ Beware of hazardous process conditions such as pressure in the measuring device, high temperatures or aggressive fluids. 2. Carry out the mounting and connection steps from the "Mounting the measuring device"...
Page 242: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 243: For The Sensor
Is used to stabilize the temperature of the fluids in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as fluids.  If using oil as a heating medium, please consult with Endress+Hauser. • If ordered together with the measuring device: order code for "Enclosed accessories"...
Page 244: Service-Specific Accessories
Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.
Page 245: System Components
Proline Promass S 500 PROFINET Accessories 15.4 System components Accessories Description Memograph M graphic The Memograph M graphic data manager provides information on all the relevant data manager measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
Page 246: Technical Data
Technical data Proline Promass S 500 PROFINET Technical data 16.1 Application The measuring device is suitable for flow measurement of liquids only. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
Page 247: Input
To increase the accuracy of certain measured variables, the automation system can continuously write various measured values to the measuring device: • Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) •...
Page 248 Technical data Proline Promass S 500 PROFINET Current input 0/4 to 20 mA Current input 0/4 to 20 mA (active/passive) Current span • 4 to 20 mA (active) • 0/4 to 20 mA (passive) Resolution 1 µA Voltage drop Typically: 0.6 to 2 V for 3.6 to 22 mA (passive) Maximum input voltage ≤...
Page 249: Output
Proline Promass S 500 PROFINET Technical data 16.4 Output Output signal PROFINET Standards In accordance with IEEE 802.3 Current output 4 to 20 mA Signal mode Can be set to: • Active • Passive Current range Can be set to: •...
Page 250 Technical data Proline Promass S 500 PROFINET Open-circuit voltage DC 28.8 V (active) Pulse width Configurable: 0.05 to 2 000 ms Maximum pulse rate 10 000 Impulse/s Pulse value Adjustable Assignable measured • Mass flow variables • Volume flow • Corrected volume flow...
Page 251 Proline Promass S 500 PROFINET Technical data Relay output Function Switch output Version Relay output, galvanically isolated Switching behavior Can be set to: • NO (normally open), factory setting • NC (normally closed) Maximum switching • DC 30 V, 0.1 A capacity (passive) •...
Page 252 Technical data Proline Promass S 500 PROFINET 0 to 20 mA Failure mode Choose from: • Maximum alarm: 22 mA • Freely definable value between: 0 to 20.5 mA Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value •...
Page 253 Proline Promass S 500 PROFINET Technical data Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred •...
Page 254: Power Supply
Technical data Proline Promass S 500 PROFINET Supported functions • Identification & Maintenance Simple device identification via: • Control system • Nameplate • Measured value status The process variables are communicated with a measured value status • Blinking feature via the onsite display for simple device identification and assignment •...
Page 255: Performance Characteristics
Proline Promass S 500 PROFINET Technical data terminals Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Cable entries • Cable gland: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) •...
Page 256 Technical data Proline Promass S 500 PROFINET Zero point stability Zero point stability [mm] [in] [kg/h] [lb/min] ³⁄₈ 0.20 0.007 ½ 0.65 0.024 1.80 0.066 1½ 4.50 0.165 0.257 Flow values Flow values as turndown parameter depending on nominal diameter.
Page 257 Proline Promass S 500 PROFINET Technical data Base repeatability Design fundamentals →  258 Mass flow and volume flow (liquids) ±0.05 % o.r. Density (liquids) ±0.00025 g/cm Temperature ±0.25 °C ± 0.0025 · T °C (±0.45 °F ± 0.0015 · (T–32) °F) Response time The response time depends on the configuration (damping).
Page 258 Technical data Proline Promass S 500 PROFINET [kg/m ] [°C] [°F] -40 0 40 80 120 160 200 240 280 320 A0016611 Field density calibration, for example at +20 °C (+68 °F) Special density calibration Temperature ±0.005 · T °C (± 0.005 · (T – 32) °F)
Page 259: Installation
Proline Promass S 500 PROFINET Technical data Calculation of the maximum repeatability as a function of the flow rate Flow rate Maximum repeatability in % o.r. ⋅ ½ ZeroPoint ⋅ ³ BaseRepeat A0021340 A0021335 ⋅ ½ ZeroPoint ZeroPoint ⋅ ⋅...
Page 260: Process
Technical data Proline Promass S 500 PROFINET External WLAN antenna IP67 Vibration- and shock- Vibration broad-band random, according to IEC 60068-2-6 resistance Sensor • 2 to 8.4 Hz, 3.5 mm peak • 8.4 to 2 000 Hz, 1 g peak Transmitter •...
Page 261 Proline Promass S 500 PROFINET Technical data Dependency of ambient temperature on medium temperature A0031121  43 Exemplary representation, values in the table below. Ambient temperature range Medium temperature Maximum permitted medium temperature T at T = 60 °C (140 °F); higher medium temperatures T...
Page 262: 16.10 Mechanical Construction
Technical data Proline Promass S 500 PROFINET The following sensor housing nominal pressure ratings/burst pressures are only valid for standard devices and/or devices equipped with closed purge connections (not opened/as delivered). If a device fitted with purge connections (order code for "Sensor option", option CH "Purge connection") is connected to the purge system, the maximum nominal pressure is...
Page 263 Proline Promass S 500 PROFINET Technical data Transmitter • Proline 500 – digital polycarbonate: 1.4 kg (3.1 lbs) • Proline 500 – digital aluminum: 2.4 kg (5.3 lbs) • Proline 500 aluminum: 6.5 kg (14.3 lbs) Sensor Sensor with aluminum connection housing version: see the information in the following...
Page 264 Technical data Proline Promass S 500 PROFINET Sensor connection housing Order code for "Sensor connection housing": • Option A "Aluminum coated": aluminum, AlSi10Mg, coated • Option B "Stainless": • Stainless steel 1.4301 (304) • Optional: Order code for "Sensor feature", option CC "Hygienic version, for maximum corrosion resistance": stainless steel, 1.4404 (316L)
Page 265 Proline Promass S 500 PROFINET Technical data Process connections Flange according to EN Stainless steel, 1.4404 (316/316L) 1092-1 (DIN 2501)/ASME B16.5/JIS B2220: All other process Stainless steel, 1.4435 (316L) connections: Available process connections→  265 Seals Welded process connections without internal seals...
Page 266: 16.11 Human Interface
Technical data Proline Promass S 500 PROFINET 16.11 Human interface Languages Can be operated in the following languages: • Via local operation English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Bahasa (Indonesian), Vietnamese, Czech, Swedish •...
Page 267 Proline Promass S 500 PROFINET Technical data Service interface →  89 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.
Page 268 Technical data Proline Promass S 500 PROFINET • Flash firmware version for device firmware upgrade, for instance • Download driver for system integration • Visualize up to 1000 saved measured values (only available with the Extended HistoROM application package →  272) Web server special documentation →...
Page 269: 16.12 Certificates And Approvals
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Ex approval The devices are certified for use in hazardous areas and the relevant safety instructions are provided in the separate "Safety Instructions"...
Page 270 • With the identification PED/G1/x (x = category) on the sensor nameplate, Directive Endress+Hauser confirms conformity with the "Essential Safety Requirements" specified in Appendix I of the Pressure Equipment Directive 2014/68/EU. • Devices not bearing this marking (PED) are designed and manufactured according to good engineering practice.
Page 271: 16.13 Application Packages
Such packages might be needed to address safety aspects or specific application requirements. The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your Endress+Hauser...
Page 272 Technical data Proline Promass S 500 PROFINET local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. Detailed information on the application packages: Special Documentation for the device →  273 Diagnostics functions Package Description Extended HistoROM Comprises extended functions concerning the event log and the activation of the measured value memory.
Page 273: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation Brief Operating Instructions...
Page 274 Technical data Proline Promass S 500 PROFINET Contents Documentation code Measuring device NEPSI Ex nA XA01479D NEPSI Ex i XA01658D NEPSI Ex nA XA01659D XA01780D Special Documentation Contents Documentation code Information on the Pressure Equipment Directive SD01614D Radio approvals for WLAN interface for A309/A310 display module...
Page 275: Index
Proline Promass S 500 PROFINET Index Index 0 … 9 Connecting the supply voltage cables ... . . 54 Connection 3-A approval ......270 see Electrical connection Connection preparations .
Page 276 Index Proline Promass S 500 PROFINET Disabling write protection ....150 User interface ......93 Display Filtering the event logbook .
Page 277 Proline Promass S 500 PROFINET Index Operating elements ..... . 76, 174 Operating keys Main electronics module ..... . 15 see Operating elements Maintenance tasks .
Page 278 Index Proline Promass S 500 PROFINET Status input 1 to n (Submenu) ....158 Serial number ......18, 20 System units (Submenu) .
Page 279 Proline Promass S 500 PROFINET Index Device information ..... . . 236 Tests and certificates ......271 Display .
Page 280 Index Proline Promass S 500 PROFINET Workplace safety ......11 Write access ....... 80 Write protection Via access code .
Page 282 www.addresses.endress.com...

Endress+Hauser Proline Promass S 500 Operating Instructions Manual

Quick Links

Related Manuals for Endress+Hauser Proline Promass S 500

Summary of Contents for Endress+Hauser Proline Promass S 500

Table of Contents
