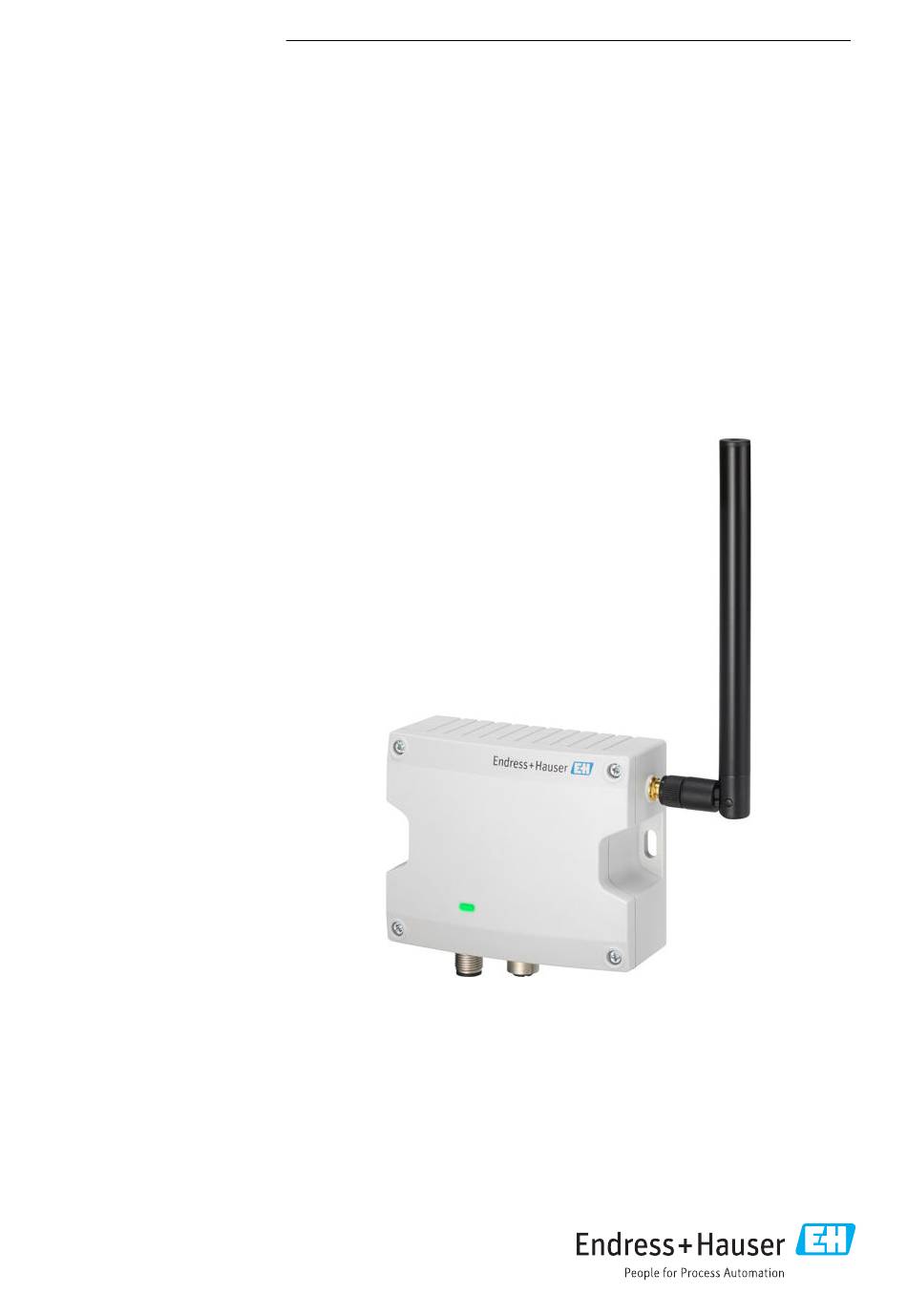

- Page 1 Products Solutions Services BA02058S/04/EN/01.20 71494807 2020-08-17 Operating Instructions FieldEdge SGC200 Bluetooth Edge Device to connect measuring technology to the Netilion Cloud...
- Page 2 Revision history FieldEdge SGC200 Revision history Product version Operating Instructions Changes Comments 1.00.XX BA02058S/04/EN/01.20 Initial version – Endress+Hauser...
-
Page 3: Table Of Contents
Symbols used ......4 10.1 Using the FieldEdge SGC200 in Documentation ..... . 5 Netilion . -
Page 4: About This Document
About this document FieldEdge SGC200 About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 5: Documentation
FieldEdge SGC200 About this document Symbol Meaning Notice or individual step to be observed. … Series of steps. Result of a step. Help in the event of a problem. Visual inspection. 1.2.3 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... -
Page 6: Registered Trademarks
Registered trademarks Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... -
Page 7: Operational Safety
If modifications are nevertheless required, consult with Endress+Hauser. Product safety The FieldEdge SGC200 meets the legal requirements of the relevant EU directives. Endress+Hauser has affixed the CE mark as confirmation that the FieldEdge SGC200 has been successfully tested. Device-specific IT security 2.6.1... -
Page 8: System Design
Netilion Services can be used for example for remote monitoring with a Netilion Service Subscription. System design Netilion 1 Network architecture Endress+Hauser field devices based on Bluetooth® Wireless technology Encrypted, wireless remote access via Bluetooth® FieldEdge SGC200 LTE connection Netilion Cloud https Internet connection... -
Page 9: Incoming Acceptance And Product Identification
The system may not be put into operation if the contents are found to be damaged beforehand. In this case refer to the information on https://netilion.endress.com/legal/terms- of-service. Return the system to Endress+Hauser in the original packaging where possible. Product identification 4.2.1... -
Page 10: Installation
Installation Installation conditions Please note the following to ensure correct operation of the FieldEdge SGC200: • Fit the LTE antenna supplied or ordered as an optional extra on the device • Connect the device to a voltage supply. • Use the SmartBlue app to determine the best location for the device → 15 •... - Page 11 40 (1.57) 97 5 (3.82) 3 Dimensions of FieldEdge SGC200 without LTE antenna in mm (in) 5-pin connector for connecting power supply 5-pin socket for future use Connection for LTE antenna (supplied) or for optionally available remote LTE antenna...
- Page 12 Installation FieldEdge SGC200 4.15 0 16 12.9 Ø 5.08 Ø 12.7 Ø Ø A0043632 4 Dimensions of LTE antenna in mm (in) 5.2.1 Installing the mounting bracket The mounting bracket is optionally available to order. www.endress.com/sgc200 Endress+Hauser...
-
Page 13: Post-Installation Check
FieldEdge SGC200 Installation 72 (2.83) 110 (4.33) 20,5 (0.79) 6 (0.24) 83 (3.27) 5 Dimensions of mounting bracket in mm (in) The mounting bracket is suitable for installation on a wall and on pipes with the following diameters: 45 to 60 mm (1.77 to 2.36 in). -
Page 14: Electrical Connection
Never operate the device without the antenna installed. The following conditions must be met: • Ensure the cable is de-energized when connecting to the FieldEdge SGC200 • Please follow the connection information in this manual • Supply voltage 8 to 30 V •... -
Page 15: Connecting The Device
Does the supply voltage of the components match the specifications on the nameplate? Is the terminal assignment correct? Is the housing cover locked? Are all the cable glands tightened securely? Operation options The FieldEdge SGC200 can be operated via the Endress+Hauser SmartBlue app → 16. Endress+Hauser... -
Page 16: System Integration Via
The cellular network and the field devices to be connected must be accessible at the device location via the SmartBlue app. The FieldEdge SGC200 is not needed to determine the location. A cellular-enabled device with the SmartBlue App app installed is sufficient. -
Page 17: Configuring The Device
Tap on the icon (accessible field devices). The FieldEdge SGC200 and all field devices that are accessible from the SmartBlue app at the current position are displayed. Use the cellular-enabled device to determine the location for the installation of the FieldEdge SGC200 by changing the position. - Page 18 FieldEdge SGC200 Enter username and password. 6 Overview of FieldEdge SGC200 and connection status. Where applicable, the connection status of the field devices is "Not connected". 9.2.2 Checking the cellular network connection status of devices The device is supplied with a pre-configured cell phone connection. The green check mark in the "Cellular Network"...
- Page 19 FieldEdge SGC200 Commissioning Detailed information on the cellular network is shown on the "Cellular Network Carrier" page. Path: icon (menu) > System > Cellular Network Carrier 9.2.3 Checking the Netilion Cloud connection The device is supplied with a pre-configured Cloud connection. The green check mark confirms that the device is connected to the Netilion Cloud.
- Page 20 Connecting the device to Bluetooth field devices Use the following access details when logging in for the first time: • User name: admin • Password: Serial number of the FieldEdge SGC200, as specified on the nameplate. Tap on the icon (menu).
- Page 21 FieldEdge SGC200 Commissioning Open the Connect Fieldgates menu. All of the field devices in range are displayed in the "Reachable Fieldgates" section. Select the field device to be connected to the FieldEdge SGC200. Endress+Hauser...
- Page 22 Commissioning FieldEdge SGC200 Enter the username and password of the field devices. The field device is displayed in the live list in the "Connected: Online" section. Repeat steps 3 and 4 for all field devices to be connected. When all field devices are connected, tap on the red X.
-
Page 23: Fieldedge Sgc200 And Netilion
The three green check marks in the "Connection Status" section of the main menu indicate that the device is fully configured and the transmitted data are available in the Netilion Cloud. FieldEdge SGC200 and Netilion 10.1 Using the FieldEdge SGC200 in Netilion The following connections are possible: • Netilion Connect or • Netilion Services •... -
Page 24: About Netilion
Return and / or cancellation of Netilion Subscription The device must be returned to Endress+Hauser in the following cases: • After canceling the Netilion Subscription • If a request is sent to Endress+Hauser Service in the event of a device change Endress+Hauser... -
Page 25: Disposal
FieldEdge SGC200 Repairs 12.3 Disposal You may dispose of the device only with the permission of Endress+Hauser Service. To ensure safe disposal, you must follow the instructions of Endress+Hauser Service. Endress+Hauser... - Page 28 www.addresses.endress.com...
