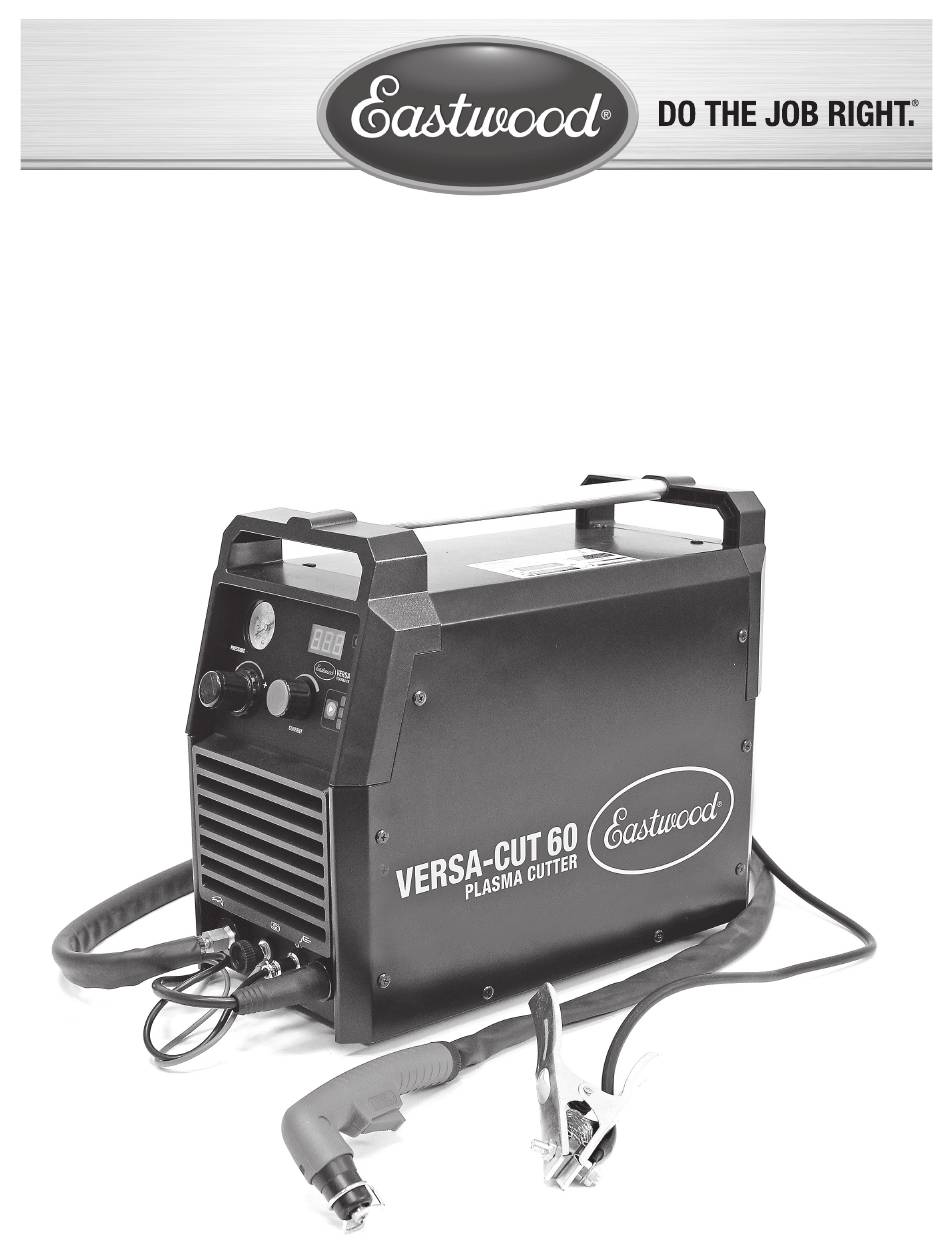

- Page 1 Item #58221 VERSA-CUT 60 PLASMA CUTTER ASSEMBLY & OPERATING INSTRUCTIONS...
- Page 2 Eastwood. WARRANTY REPAIR: If Eastwood confirms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option to rectify the defect. At Eastwood’s request, the purchaser must return, to Eastwood, any products claimed defective under Eastwood’s warranty.
-
Page 3: Specifications
If the Duty Cycle is exceeded, and the built-in Breaker is tripped, allow the unit to cool for a minimum of 15 minutes. When a safe temperature has been reached, the Plasma Cutter can be switched back on. To increase the duty cycle, turn down the Amperage Output control. To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 4: Safety Information
Society guidelines, codes and applications prior to making cuts where safety is affected. Plasma cutting can be dangerous to you and other persons in the work area. Read and understand this instruction manual before using this Eastwood plasma cutting machine. Injury or death can occur if safe plasma cutting practices are not followed. Safety information is set forth below and throughout this manual. - Page 5 • Plasma cutting heats metal and tools to temperatures that will cause severe burns! • Use protective, heat resistant gloves and clothing when using Eastwood or any other plasma cutting equipment. Never touch a cut work surface, torch tip or nozzle until they have completely cooled.
-
Page 6: Control Panel And Features
FIG. 1 TO A POWER AND AIR SOURCE The Eastwood Versa Cut 60 Plasma Cutter requires a dedicated 240 VAC, 50 AMP, 50/60HZ grounded outlet protected by a circuit breaker. The plug installed on the plasma cutter is a NEMA 6-50P and should be used with a NEMA 6-50R receptacle. - Page 7 OVERLOAD PROTECTION The Eastwood Versa Cut 60 Plasma Cutter is equipped with an overload protection. This device will protect the Plasma Cutter if the duty cycle is exceeded. If the output is exceeded, the breaker will trip, the AMBER Overtemp Indicator will illuminate and cut off the power supply to the torch although the fan will still run to cool the unit.
- Page 8 23/32” 3/4” 25/32” 13/16” 27/32” 7/8” Amps *NOTE: These settings are base guidelines and may need to be adjusted based on individual techniques. Do not Exceed 20 Amps when plugged into a 120V circuit. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 9: Care And Maintenance
Electrode Seal Ring The Eastwood Versa-Cut 60 Plasma Cutter has several consumable parts that will need to be replaced over time. If wear or slag build up is noticed on any of the torch compo- nents, replace them immediately to avoid damage to the torch. Worn components will also contribute to poor plasma cutting and difficult arc starting. -
Page 10: Troubleshooting: Operational Problems
Power Switch is On, been exceeded AMBER Indicator Illuminated Water Drips from No action required. This feature activates whenever the compressed air the Rear Underside The internal Moisture Trap is draining source is disconnected. of the Unit Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com... -
Page 11: Troubleshooting: Cutting Problems
The use of an undersized gauge and Use only UL approved, 3 conductor grounded Extension cords. or too long of an extension cord Use Eastwood #31739 for 120V operation and Eastwood #20029 or causing an under-voltage condition #20285 for 240V operation. -
Page 12: Replacement Items
If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com © Copyright 2021 Eastwood Automotive Group LLC 8/21...
