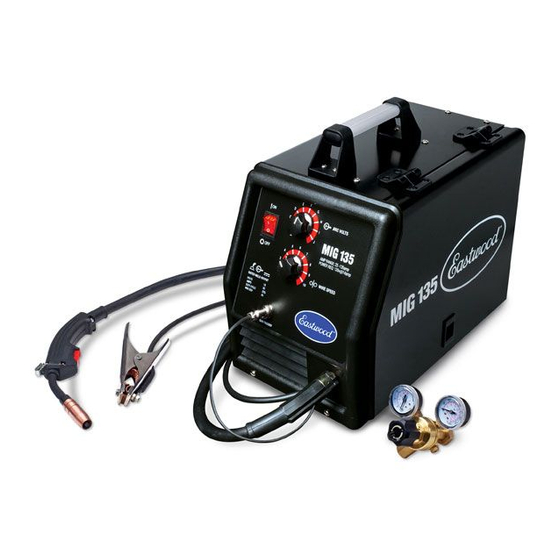

Eastwood Mig135
Assembly and Operating Instructions
Part #12011
Carefully read this operation manual prior to using, installing and maintaining your welder
to prevent damage such as fi re and electric shock from occurring.
Please keep this manual for your future reference!

Advertisement

Table of Contents
loading

Related Manuals for Eastwood Mig135

Summary of Contents for Eastwood Mig135

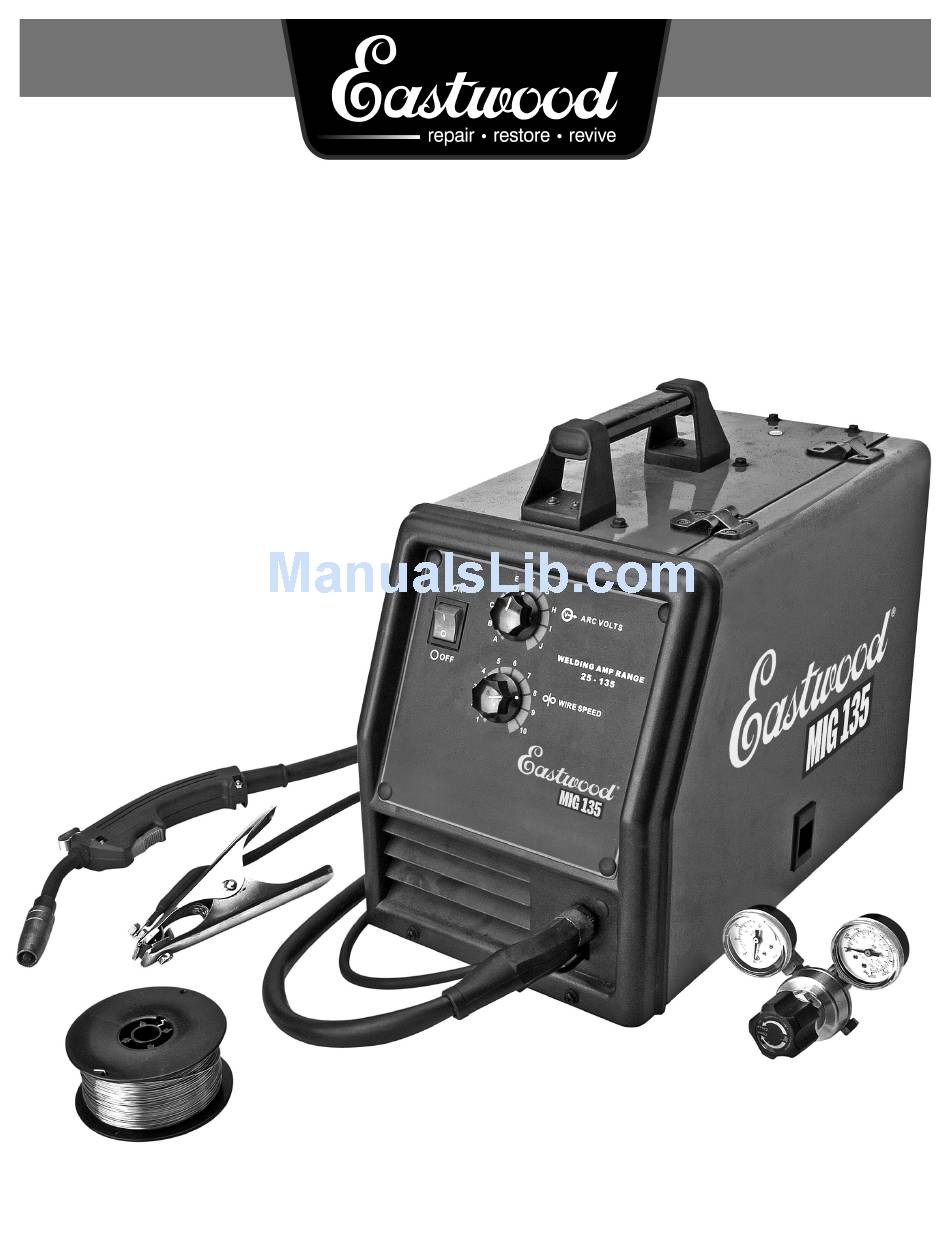

  • Page 1 Eastwood Mig135 Assembly and Operating Instructions Part #12011 Carefully read this operation manual prior to using, installing and maintaining your welder to prevent damage such as fi re and electric shock from occurring. Please keep this manual for your future reference!

  • Page 2: Specifications

    SPECIFICATIONS Rated Electrical Input ....110-120 VAC; 60Hz; 15AMP Max Voltage at No Load ... 28 V DC Rated Duty Cycle ...... 90A@20% duty cycle Wire Feed Rate ......3.28 Ft/min – 32.8 Ft/min Wire Sizes ........0.025”(0.6mm) – 0.030”(0.8mm) mig wire 0.030”(0.8mm) fl...

  • Page 3: Safety Information

    Read all precautions described in this manual to reduce the possibility of electric shock. The MIG135 power switch is to be in the OFF (“0”) position when installing the work cable and gun and while plugging in the power cord.
  • Page 4 SAFETY INFORMATION FUMES AND WELDING GASES CAN BE DANGEROUS. Do not breathe fumes that are produced by the welding operation. These fumes are dangerous. Keep your head and face out of welding fumes. Shielding gases used for welding can displace air and cause injury or death.

  • Page 5: Components And Controls

    11. Wire spool mount spindle. 12. Wing screw to fasten the welding torch cable. 13. Positive (+) and negative (-) output terminals. 14. Control cable connection of the welding torch. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com...

  • Page 6: Wire Feeder Installation

    WELDING WIRE INSTALLATION The MIG135 welding machine can be used with wire spools of either 8” (200 mm ) in diameter or 4”(100 mm) in diameter. The depth of either spool should not exceed 2.2” (56 mm). There is a 50mm plastic bar- rel attached to the welding machine.

  • Page 7: How To Thread Welding Wire Through The Wire Feeder

    9. You do not want too much tension on the tension roller as it will tend to deform the wire. Just enough to feed the wire without slipping 10. Once the wire has emerged from the tip of the gun, turn the machine OFF and replace the tip and nozzle. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com...

  • Page 8: Shielding Gas Installation

    fl ow regulator and tighten. Connect the other end of the hose to the gas inlet located at the rear of Hose feeds the MIG135 welding machine (The connector nipple to protective 5/8-18 adapts to CGA-032). Ensure that the hose is gas input not twisted or knotted.

  • Page 9: Welding Process

    13. Move to the other end of the panel and repeat the process. Now go to the middle and repeat. Con- tinue this process moving to different areas of the panel to eliminate heat warping the material. Visit Eastwood.com to see our welding videos! To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com...

  • Page 10: Overload Protection To Wire Feeder

    OVERLOAD PROTECTION TO WIRE FEEDER The MIG135 model has two automatic circuits to protect the motor of the wire feeder. If there is fault to the motor, the circuit will power off the wire feeder as well as the output.
  • Page 11 WARRANTY REPAIR: If Eastwood confi rms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option to rectify the defect. At Eastwood’s request, the purchaser must return, to Eastwood, any products claimed defective under Eastwood’s warranty.
  • Page 12 NOTES If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 1-866-759-2131 email: techelp@eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 1-800-345-1178 Outside US: 610-718-8335 fax: 610-323-6268 www.eastwood.com...
