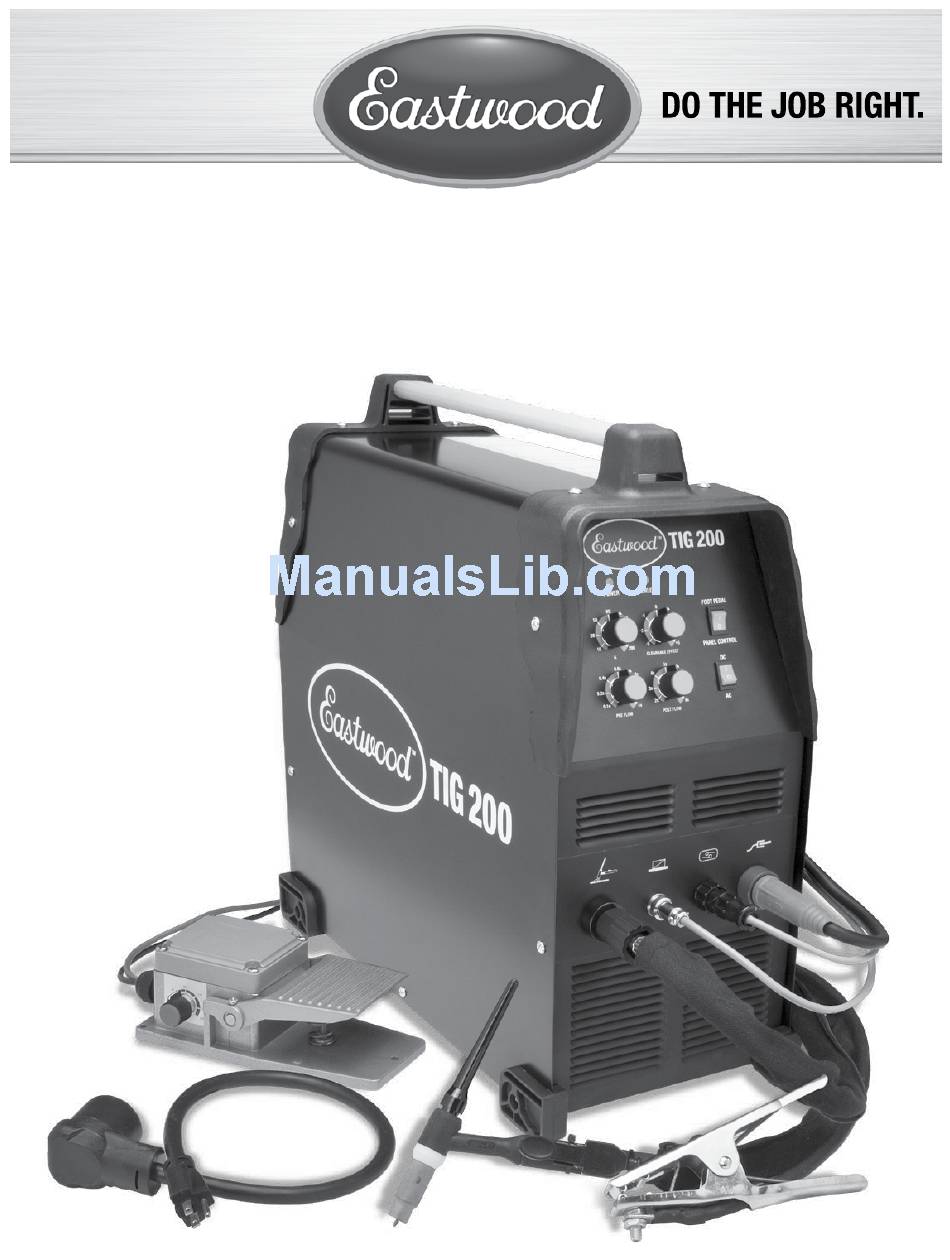

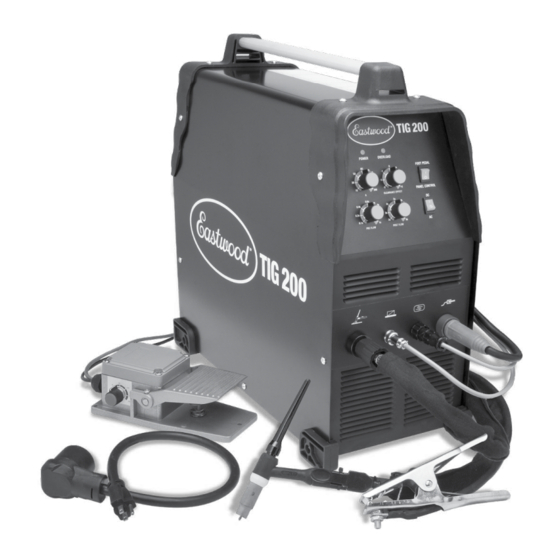

- Page 1 Part #12746 TIG 200 AC/DC WELDER ASSEMBLY & OPERATING INSTRucTIONS...
-
Page 2: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY The Eastwood Company (hereinafter “Eastwood”) warrants to the end user (purchaser) of all new welding and cutting equipment (collectively called the “products”) that it will be free of defects in workmanship and material. This warranty is void if the equipment has been subjected to improper installation, improper care or abnormal operations. -
Page 3: Safety Information
• Never handle the torch and the feed cable, power cord or welder cabinet at the same time. Fatal shock can occur. • Avoid welding in extreme humidity or while heavily perspired. To order parts and supplies: 800.345.1178 >> eastwood.com... -
Page 4: Required Items
POwER REquIREMENTS The Eastwood TIG200 AC/DC is Voltage sensing; it will automatically operate on 110-120 VAC, 50/60 Hz., or 220-240 VAC, 50/60 Hz. Eastwood recommends at a minimum a properly grounded 110-120 VAC 50/60Hz., 20 Amp circuit or 220-240 VAC 50/60Hz., 30 Amp circuit. -
Page 5: Components And Controls
Amperage during the weld. When using the foot pedal the Amperage is set by the adjustment knob on the side of the foot pedal. (Fig. B) DATA cHART (ALSO LOcATED ON TOP OF wELDER) To order parts and supplies: 800.345.1178 >> eastwood.com... -
Page 6: Shielding Gas Connection
FIG. E SHIELDING GAS CONNECTION A Shielding Gas Bottle is not included with your Eastwood TIG200 but is necessary while TIG welding. A Shielding Gas Bottle can be bought at most local Welding Supply Stores. Eastwood recommends the use of 100% Argon shielding gas when TIG welding Steel, Aluminum, and Stainless Steel. -
Page 7: Preparing To Weld
5. The ideal tip will have the length of the conical portion of the sharpened area at 2-1/2 times the Tungsten rod diameter (Fig J). 6. Replace the Tungsten in the Collet with the tip extending 1/8”-1/4” beyond the Gas Nozzle, then re-tighten the Back Cap. To order parts and supplies: 800.345.1178 >> eastwood.com... - Page 8 6. When finished welding remember to close the gas valve on the bottle. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com...
-
Page 9: Important Note
These instructions are intended only to provide the user with some familiarity 90° of the Eastwood TIG200. TIG welding is a highly complex procedure with many variables. If you have no experience with TIG welding; it is extremely important 75°... -
Page 10: Troubleshooting
Increase p ost f low t ime t o a llow t he g as t o c ool t he t ungsten. Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com Melting ... - Page 11 TROuBLESHOOTING To order parts and supplies: 800.345.1178 >> eastwood.com...
- Page 12 • #12762L, XL, XXL – Welding Jacket • #11616 – TIG200 Welding Cart If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: techelp@eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.345.1178...
