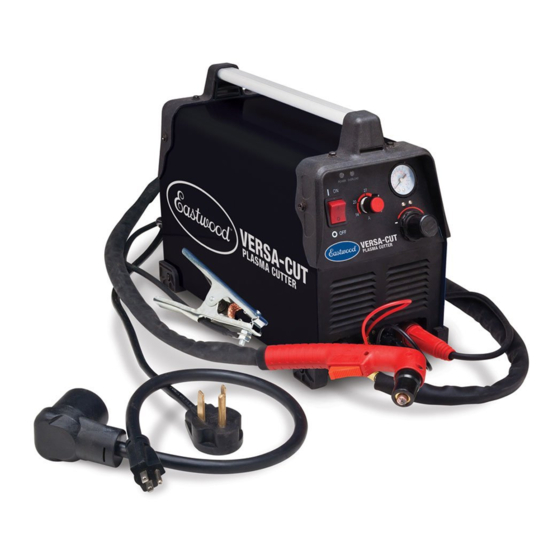

Eastwood Versa-Cut Plasma Cutting System
with High-Frequency Inverter Technology
Assembly and Operating Instructions
Part #12740
Carefully read this operation manual prior to using, installing and maintaining your Plasma Cutter
to prevent damage such as fi re and electric shock from occurring.
Please keep this manual for your future reference!
Advertisement
Table of Contents
Related Manuals for Eastwood Versa-Cut12740
Summary of Contents for Eastwood Versa-Cut12740

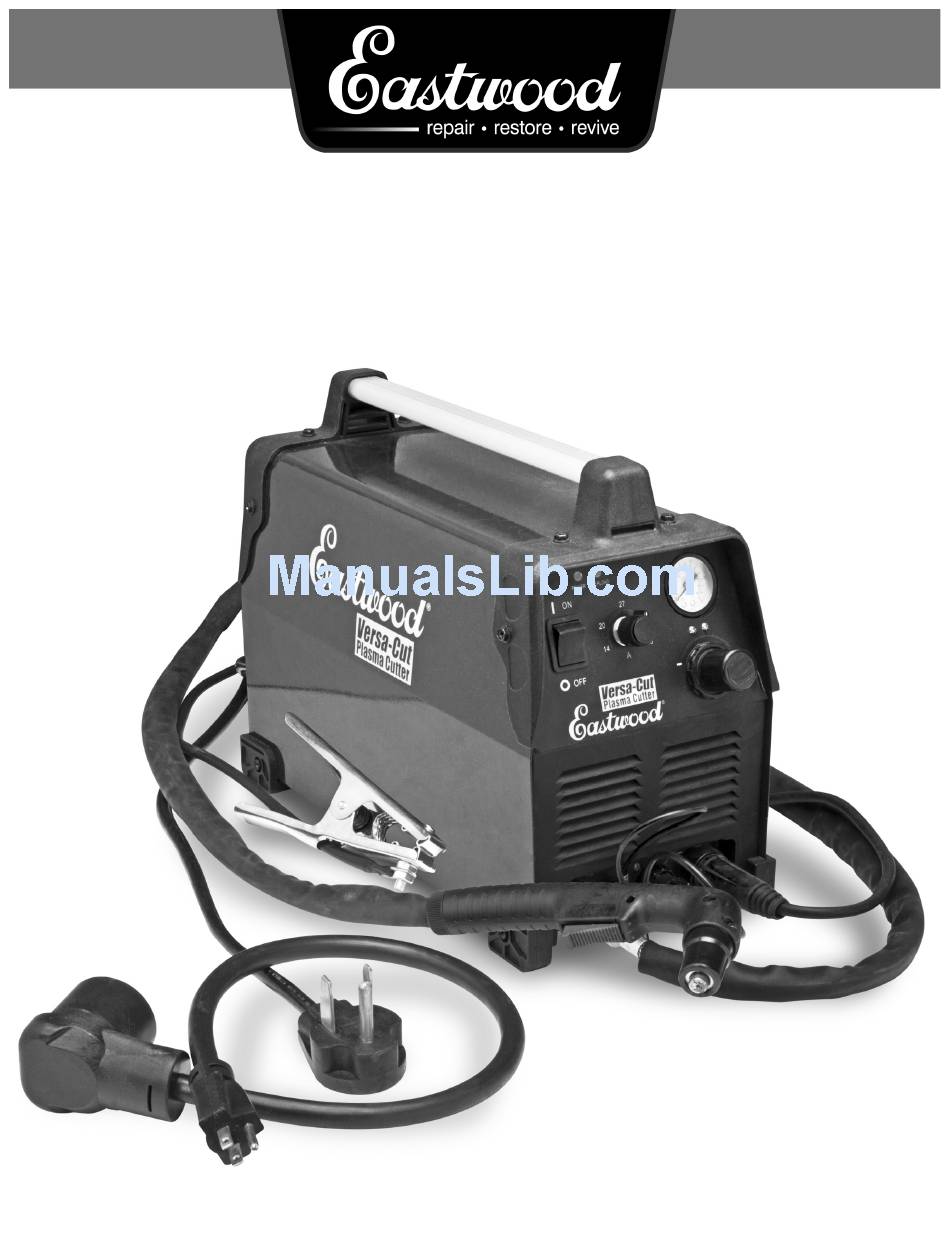

- Page 1 Eastwood Versa-Cut Plasma Cutting System with High-Frequency Inverter Technology Assembly and Operating Instructions Part #12740 Carefully read this operation manual prior to using, installing and maintaining your Plasma Cutter to prevent damage such as fi re and electric shock from occurring.
-
Page 2: Specifications
WARRANTY REPAIR: If Eastwood confi rms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option to rectify the defect. At Eastwood’s request, the purchaser must return, to Eastwood, any products claimed defective under Eastwood’s warranty. -
Page 3: Safety Information
• Do not touch the torch tip until after the activation switch is off and the unit is UNPLUGGED. • Do not use the unit if any component should become damaged or show signs of excessive wear. To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... -
Page 4: Required Items
REQUIRED ITEMS Before you begin using the Eastwood Versa-Cut Model 12740 Plasma Cutting System make sure you have the following: • A clean, dry air supply source for the torch. An air compressor capable of delivering 5-7 CFM @ 85 PSI is required. - Page 5 • Attach the Ground Lead Connector to the terminal located at the lower right of the front panel (Fig. C). Torch Air Power Supply Line Supply Cable Pilot Arc Ground Ignitor To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com...
-
Page 6: Operation
OPERATION FIG. D FIG. D 1. Before attempting to use this unit on an actual project or object of value, practice on a similar material as there is a moderate learning curve necessary before achieving profi ciency in cutting. 2. Place the Ground Cable Clamp on a clean, bare area of your workpiece, as close to the cut area as possible. -
Page 7: Care And Maintenance
• Always store the unit in a safe, clean and dry environment. PLASMA CUTTER SUPPLIES REPLACEMENT ITEMS: • #12811 - Plasma Cutter Torch Assembly • #12812 - Electrode 10-Pack • #12814 - Nozzle 10-Pack To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com... -
Page 8: Troubleshooting
The plasma arc will not start till contact is made. If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 1-866-759-2131 email: techelp@eastwood.com The Eastwood Company...
