Function overview and Key Definitions

6.3.1 Function overview
• use of a two-way serial communication protocol,
simple operation of the display via the external
5-key keypad.
• Speed display: displaying the real-time speed as
SPEED, the maximum speed as MAXS and the
average speed as AVG.
• km or mile: the user can choose between km
and mile.
• Intelligent battery level indication: With an
optimization algorithm, a stable display of the
battery level is ensured, and the problem of fluc-
tuant battery level indication common with other
displays is avoided.
• Automatic light-sensitive lights: the headlight,
taillight and display light will be automatically
turned on/ off depending on lighting conditions.
• 5 levels off display backlighting: Different levels
• 5-Level-Support: setting power Levels 1 to 5
• trip distance indication: the maximum distance
displayed is 99999. Single-trip distances tRIP or
the total distance totAL can be displayed.
• Display of error messages
• Walk assistance
• Settings: Various parameters, e.g. mode, wheel
diameter, speed limit etc., can be set on the com-
puter via a communication cable. See the setting
• Maintenance warning (this function can be deac-
tived): Maintenance warning information is dis-
played based on battery charge cycles and riding
distance. the display automatically estimates the
battery life and gives warnings when the number
of charge cycles exceeds the set value. A warning
will also be displayed when the accumulated total
riding distance exceeds the set value.
DEALER MAnuAL Max Drive SySteM
DISPLAy (DP C01.RS232.7)

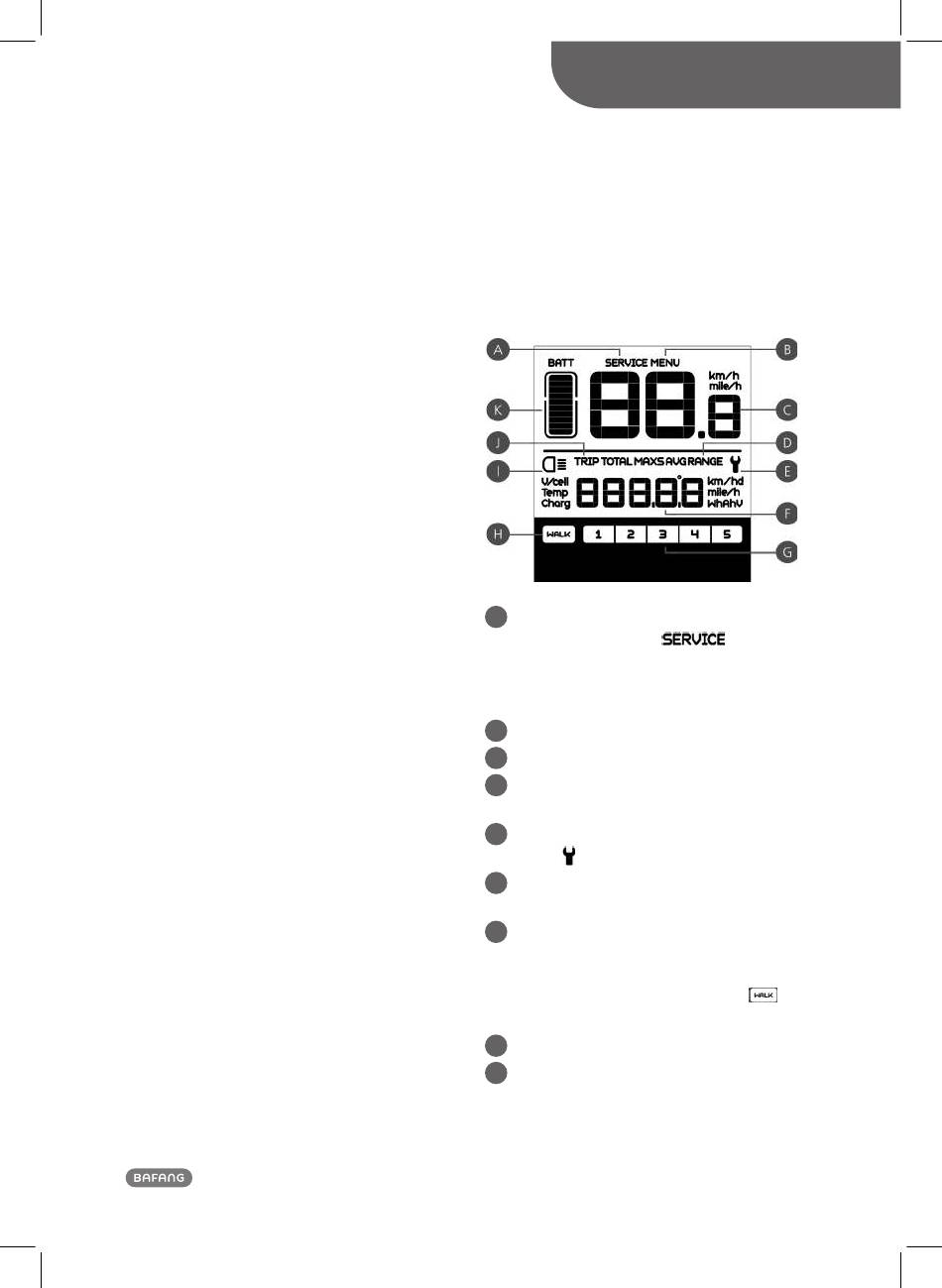

6.3.2 information on the Display
Maintenance warning: When there is a need for
A
maintenance the symbol
played (riding distance or the number of battery
charge cycles exceed the set value, function can
be deactivated)
Menu
b
Speed display: display of the speed, km/h or mph
C
Speed mode: average speed (AVG km/h), maxi-
D
mum speed (MAXS km/h)
Error display: When a fault is detected the
e
symbol will be displayed.
Distance indication: display of the distance
f
depending on the setting.
Level indication: the chosen level 1–5 will be
g
displayed; if there is no numeric display, it means
that there is no assistance (by the motor). If the
rider is walking and pushing the e-bike,
be displayed.
Walk assistance
H
Headlight indication: only shows when headlight
I
or backlight are on
will be dis-
will
