Microphone Control - Kenwood TH-G71E Instruction Manual

After connecting the optional SMC-33 or SMC-34
speaker microphone, you can change numerous
transceiver settings without using the transceiver keys or
controls. The 1, 2, and 3 keys located on the top of the
microphone are programmable with the transceiver key
(or key combination) function. The assigned default
functions are as follows:
[1]: Band select
[2]: VFO/ Memory Recall mode switch
[3]: Call channel recall (TH-G71E: Transmit power
select)
Note:
◆
Turn OFF the transceiver power before connecting the optional
speaker microphone.
◆ If the switch located on the rear of the microphone is ON, you
LOCK
cannot re-program the Programmable Function keys.
1 Press one of the following key combinations
depending on which key you want to re-program:

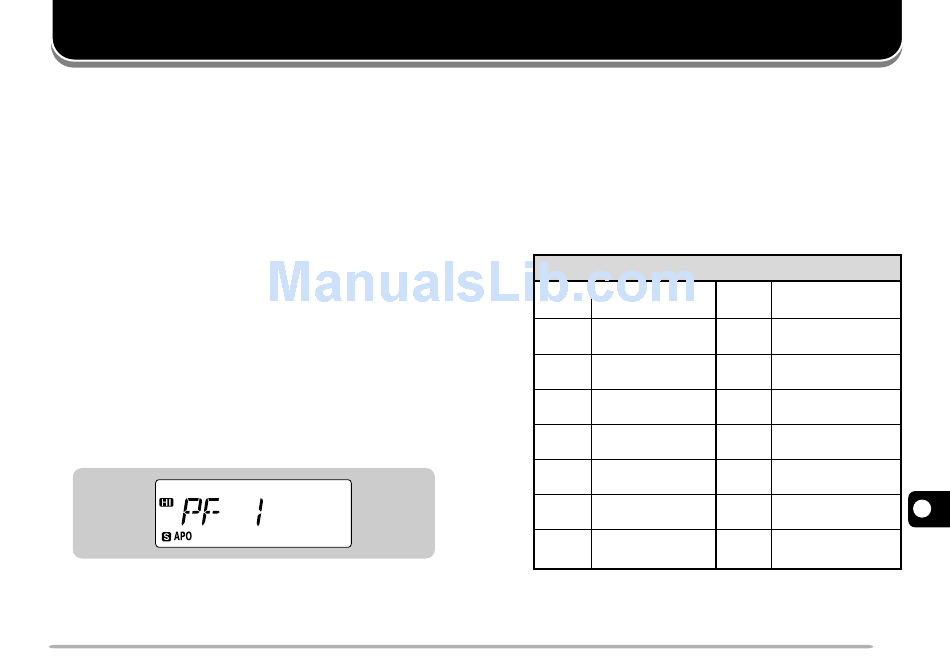

Mic [1]+ POWER ON ("PF 1" appears)
Mic [2]+ POWER ON ("PF 2" appears)
Mic [3]+ POWER ON ("PF 3" appears)

MICROPHONE CONTROL

2 Press a key or key combination on the transceiver
that you want to assign.
• To assign the Up function, rotate the Tuning control
clockwise. To assign the Down function, rotate the
Tuning control counterclockwise.
• Pressing the PTT switch assigns the VFO/MR switch.
• Pressing [0] to [9] allows you to recall a memory
channel number 0 to 9.
• You can assign the following key combinations:
[LAMP] Lamp Latch
[BAND] Menu mode
[LOW] Tone ON/OFF
Press [F], then press
ON/OFF
select
Squelch level
[1] [VFO]
select
Memory name
[4] [MR]
store
Memory name/
[5]
[CALL]
frequency change
[6]
CTCSS ON/OFF [MHz]
Tone Alert
[7] [REV]
ON/OFF
Priority Scan
[8]
ON/OFF
Tone frequency
[9]
select
Memory Channel
[0]
Lockout ON/OFF
Memory ➡ VFO
transfer
10
Memory channel
store
Call channel
store
Frequency step
12
size select
Offset direction
13
select
14
15
