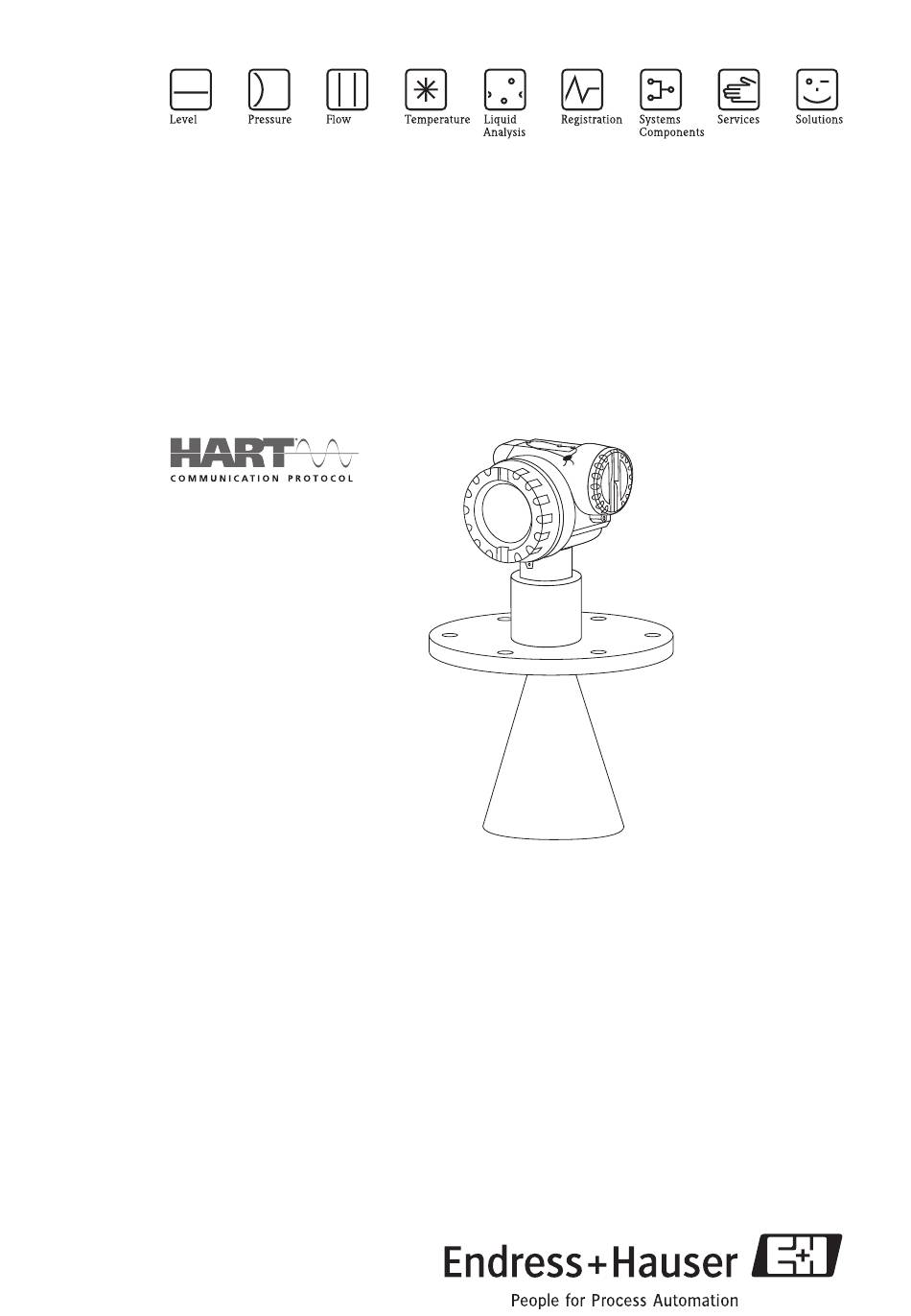

Brief Operating Instructions
Micropilot S FMR530
Level-Radar
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• these Brief Operating Instructions
• Approvals and safety certificates
• a CD-ROM with:
– the Operating Instructions
– Technical Information
KA01055F/00/EN/12.09
71107698

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser HART Micropilot S FMR530

Summary of Contents for Endress+Hauser HART Micropilot S FMR530

  • Page 1 Brief Operating Instructions Micropilot S FMR530 Level-Radar These are Brief Operating Instructions. For more detailed information, please refer to the Operating Instructions and the additional documentation on the CD-ROM provided. These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.

  • Page 2: Table Of Contents

    5.5 Envelope curve with the device display ............33 Endress+Hauser...

  • Page 3: Safety Instructions

    "Ex documentation", which is an integral part of this Operating Instructions. The installation regulations, connection values and Safety Instructions listed in this Ex document must be observed. The documentation number of the related Safety Instructions is also indicated. Endress+Hauser...

  • Page 4: Return

    "explosion hazardous areas" must conform with the stated type of protection. Safe area (non-explosion hazardous area) Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in safe areas still require a certificate if their outputs run into explosion hazardous areas. Endress+Hauser...

  • Page 5: Mounting

    Pack the measuring device so that is protected against impacts for storage and transport. The original packing material provides the optimum protection for this. The permissible storage temperature is -40 °C to +80 °C (-40 °F to +176 °F). Endress+Hauser...

  • Page 6: Installation

    • The horn antenna must be aligned vertically. Antenna size 150 mm (6") 200 mm (8") 250 mm (10") D [mm (in)] 146 (5.75) 191 (7.52) 241 (9.49) H [mm (in)] < 180 (7.09) < 260 (10.2) < 350 (13.8) Endress+Hauser...
  • Page 7 • Not above the fill stream (4). • It is recommended to use a weather protection cover (2) in order to protect the transmitter from direct sun or rain. Assembly and disassembly is simply done by means of a tension clamp (see BA00206F/00/EN). L00-FMP4xxxx-17-00-00-xx-001 Endress+Hauser...
  • Page 8 DN150 (6") and larger. • Metallic screens (3) mounted at a slope L00-FMR2xxxx-17-00-00-xx-002 spread the radar signals and can, therefore, reduce interference echoes. Please contact Endress+Hauser for further information. Endress+Hauser...
  • Page 9 (BD). • Depending on its consistence, foam can either absorb microwaves or reflect them off the foam surface. Measurement is possible under certain conditions. • The smallest possible measuring range B depends on the antenna version (see fig.). Endress+Hauser...
  • Page 10 150 to 300 (6 to 12) Behaviour if measuring range is exceeded The behaviour in case of the measuring range being exceeded can be freely set: The default setting is a current of 22 mA and the generation of a digital warning (E681). Endress+Hauser...

  • Page 11: Post-Installation Check

    • Have the flange screws been tightened up with the respective tightening torque? • Are the measuring point number and labeling correct (visual check)? • Is the measuring device adequately protected against rain and direct sunlight (see Chapter "Accessories" in the Operating Instruction on CD-ROM)? Endress+Hauser...

  • Page 12: Wiring

    In this case, it is recommended that the screen be connected directly to the Micropilot S at the housing’s earth, whereby the Micropilot S and the power supply unit are connected to the same potential matching line (PML). Endress+Hauser...

  • Page 13: Terminal Assignment

    (multiple grounding), ceramic condensers with a dielectric strength of min. 1500 V must be used, whereby the total capacitance of 10 nF must not be exceeded. Notes on grounding interconnected intrinsically safe devices are provided by the FISCO model. Endress+Hauser...

  • Page 14: Connecting The Measuring Unit

    8/20 μs, Î = 10 kA, 10 pulses). Additionally, the device is protected by a galvanic insulation of 500 Vrms between the power supply and the (HART) current ouput. Connect the metallic housing of the Micropilot S to the tank wall or screen directly with an electrically conductive lead to ensure reliable potential matching. Endress+Hauser...

  • Page 15: Screening/Potential Matching

    – The cable shall be protected e.g. routed in an armoured hose. 3.4.7 Power supply • For stand alone operation via two Endress+Hauser RN221N. • For installation in Tank Gauging Systems via Tank Side Monitor NRF590 (recommended operation mode), → ä 13.

  • Page 16: Operation

    Select the "tank shape" (002) function (where the existing tank shape is selected). 4.1.1 Identifying the functions For simple orientation within the function menus, for each function a position is shown on the display. L00-FMRxxxxx-07-00-00-de-005 The first two digits identify the function group: • basic setup • safety settings • linearisation Endress+Hauser...

  • Page 17: Display And Operating Elements

    LED custody locking switch L00-FMR53xxx-07-00-00-en-001 The VU331 LCD display can be removed to ease operation by simply pressing the snap-fit (see graphic above). It is connected to the device by means of a 500 mm (19.7 in) cable. Endress+Hauser...
  • Page 18 This communication symbol appears when a data transmission via HART is in progress. Calibration to regulatory standards disturbed If the device is not locked or it cannot guarantee the calibration to regulatory standards, the situation will be indicated on the display via the symbol. Endress+Hauser...
  • Page 19 4.2.5 Custody locking switch Access to the electronics can be prevented by means of a custody locking switch that locks the device settings. The custody locking switch can be sealed for custody transfer applications. Endress+Hauser...

  • Page 20: Commissioning

    Select the basic unit (this message appears the first time the device is switched on) ⇓ The current measured value is displayed ⇓ After is pressed, you reach the group selection This selection enables you to perform the basic setup Endress+Hauser...

  • Page 21: Overview Basic Setup

    = full calibr. (= span) settings in 005 settings in 006 D = distance (distance flange / product) = level display in 0A5 display in 0A6 SD = safety settings BD = blocking dist. settings in 015 settings in 059 L00-FMR53xxx-19-00-00-en-002 Endress+Hauser...
  • Page 22 • All functions are described in detail, as is the overview of the operating menu itself, in the manual "BA00217F - Description of Instrument Functions" which is a separate part of this operating manual. • The default values of the parameters are typed in boldface. Endress+Hauser...
  • Page 23 After finishing the basic setup pairs of values "measuring value Micropilot S - hand dipping value" should be collected and if necessary a further correction should be performed through entering characteristic pairs of values into the dip table. Information on the usage of the dip table can be found in BA00206F/00/EN. Endress+Hauser...

  • Page 24: Basic Setup With The Device Display

    (042) function). The number of digits after decimal point can be selected in the "no.of decimals" (095) function. The length of the bargraph corresponds to the percental value of the present measured value with regard to the span. 5.4.2 Function group "basic setup" (00) ⇒ ENDRESS + HAUSER – Endress+Hauser...
  • Page 25 • stilling well (Not weights and measures approved, accuracy is not guaranteed. Recommendation: FMR532) • flat ceiling (Typical ceiling of storage tanks: a slight slope of only a few degrees can be neglected.) • sphere dome ceiling horizontal cyl bypass stilling well flat ceiling sphere L00-FMR2xxxx-14-00-06-en-007 Endress+Hauser...
  • Page 26 Media group DC ( Examples non-conducting liquids, e.g. liquefied gas (LPG). For more information please 1.4 to 1.9 contact your Endress+Hauser representative. non-conducting liquids, e.g. benzene, oil, toluene, white products, black 1.9 to 4 products, crudes, bitumen/asphalts, … 4 to 10 e.g.
  • Page 27 The phase evaluation of the Micropilot S is only activated if you select the measuring conditions "standard", "calm surface" or "heavy conditions". If, however, "heavy conditions" is selected, no index values are stored. We strongly recommend that, in the case of rough product surfaces or rapid filling, you activate the appropriate application parameters! Endress+Hauser...
  • Page 28 Microwaves propagate slower in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot. It is only necessary to enter the pipe diameter for applications in a bypass or stilling well. Endress+Hauser...
  • Page 29 This function triggers the mapping of interference echoes. To do so, the measured distance must be compared with the actual distance to the product surface. The following options are available for selection: Selection: • distance = ok • dist. too small • dist. too big • dist. unknown • manual Endress+Hauser...
  • Page 30 The range of mapping must end 0,5 m (1.6 ft) before the echo of the actual level. For an empty tank do not enter E, but E - 0,5 m (1.6 ft). If a mapping already exists, it is overwriten up to the distance specified in "range of mapping" (052). Beyond this value this existing mapping remains unchanged. Endress+Hauser...
  • Page 31 • Distance correct - meas.value correct È continue with the next function"check distance" (051) • Distance correct - meas.value incorrect È Check "empty calibr" (005) • Distance incorrect - meas.value incorrect È continue with the next function "check distance" (051) Endress+Hauser...
  • Page 32 In this case also perform a reset of the dip table in function "dip table mode" (033). ⇒ ENDRESS + HAUSER – ⇓ After 3 s, the following message appears Note! After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Endress+Hauser...

  • Page 33: Envelope Curve With The Device Display

    • env. curve+FAC (for FAC see BA00217F/00/EN) • env. curve+cust.map (i.e. the tank map is also displayed) tank map / FAC echo quality (S/N) marking of evaluated echo begin value envelope curve distance of end value of representation current echo of representation L00-FMRxxxxx-07-00-00-en-004 Endress+Hauser...
  • Page 34 (map) L00-FMR53xxxx-07-00-00-en-003 Endress+Hauser...
  • Page 35 Micropilot S FMR530 4 to 20 mA HART Commissioning Endress+Hauser...
  • Page 36 www.endress.com/worldwide KA01055F/00/EN/12.09 71107698 CCS/FM+SGML 6.0 71107698 71107698...
