Installation and Operation
Mounting the Switcher
The MTP SW6 can be set on a table, mounted on a rack shelf, or
mounted under a desk, podium, or tabletop.
Tabletop use
Four self-adhesive rubber feet are included with the switcher.
For tabletop use, attach one foot at each corner of the bottom
side of the unit and place the unit in the desired location.
Rack shelf mounting
For optional rack mounting, mount the switcher using any of
the following rack mounting options:
•
RSU 129 9.5" deep 1U universal rack shelf kit (part #60-190-01)
•
RSB 129 9.5" deep 1U basic rack shelf (part #60-604-01)
•
RSU 126 6" deep universal rack shelf kit (part #60-190-10)
•
RSB 126 6" deep basic rack shelf (part #60-604-10)
UL guidelines
The following Underwriters Laboratories (UL) requirements
pertain to the installation of the switcher into or onto a rack.
1.
Elevated operating ambient — If installed in a closed
or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater
than room ambient. Therefore, consider installing the
equipment in an environment compatible with the +122 °F
(+50 °C) maximum ambient temperature (Tma) specified
by Extron.
2.
Reduced air flow — Installation of the equipment in a rack
should be such that the amount of air flow required for
safe operation of the equipment is not compromised.
3.
Mechanical loading — Mounting of the equipment in
the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
4.
Circuit overloading — Consideration should be given to
the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be
used when addressing this concern.
5.
Reliable earthing (grounding) — Reliable earthing
of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections
other than direct connections to the branch circuit (such as
the use of power strips).
MTP SW6 • Installation and Operation
2-2
Rack shelf mounting instructions
1.
Remove feet from the bottom of the MTP SW6 if installed.
2.
Mount the switcher on the rack shelf, using two
4-40 x 3/16" screws in opposite (diagonal) corners to
secure it to the shelf (figure 2-1).
3.
Install blank panel(s) or other unit(s) on the rack shelf.
4.
Attach the rack shelf to the rack using the supplied bolts.

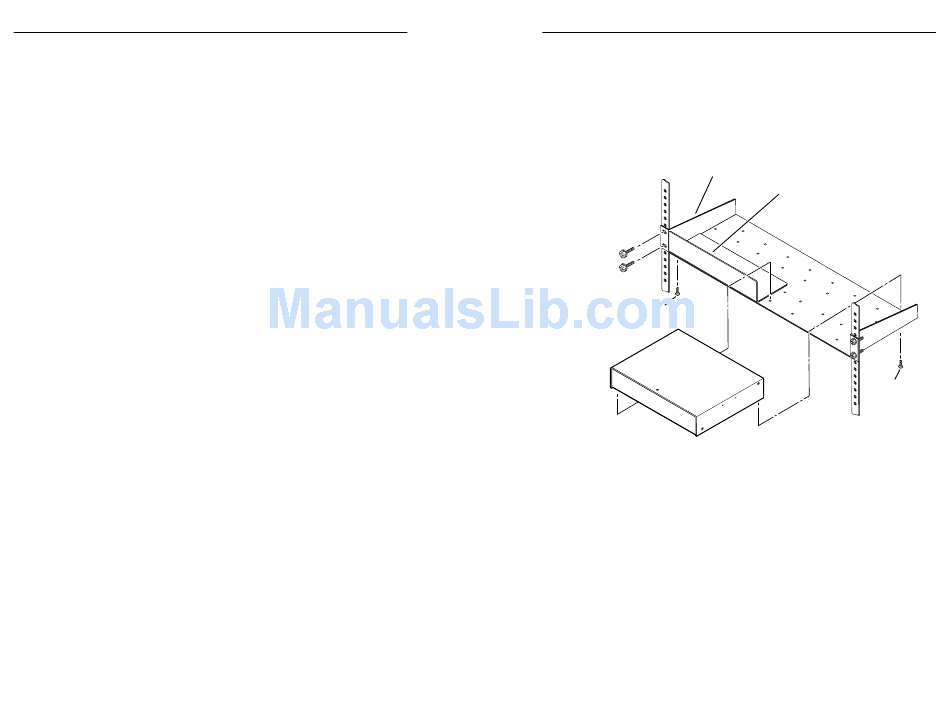

6" Deep Rack Shelf
Front false
faceplate
uses 2
screws.
Use 2 mounting holes on
opposite corners.
Figure 2-1 — Mounting the switcher unit on a 6" rack
shelf
MTP SW6 • Installation and Operation
1/2 Rack Width Front False
Faceplate
(2) 4-40 x 3/16"
Screws
2-3
