MLS 100 A • User Guide
About this Manual
This manual contains information about the Extron MLS 100 A Switcher
and on how to install, set up, and operate it.
About the MLS 100 A Switcher

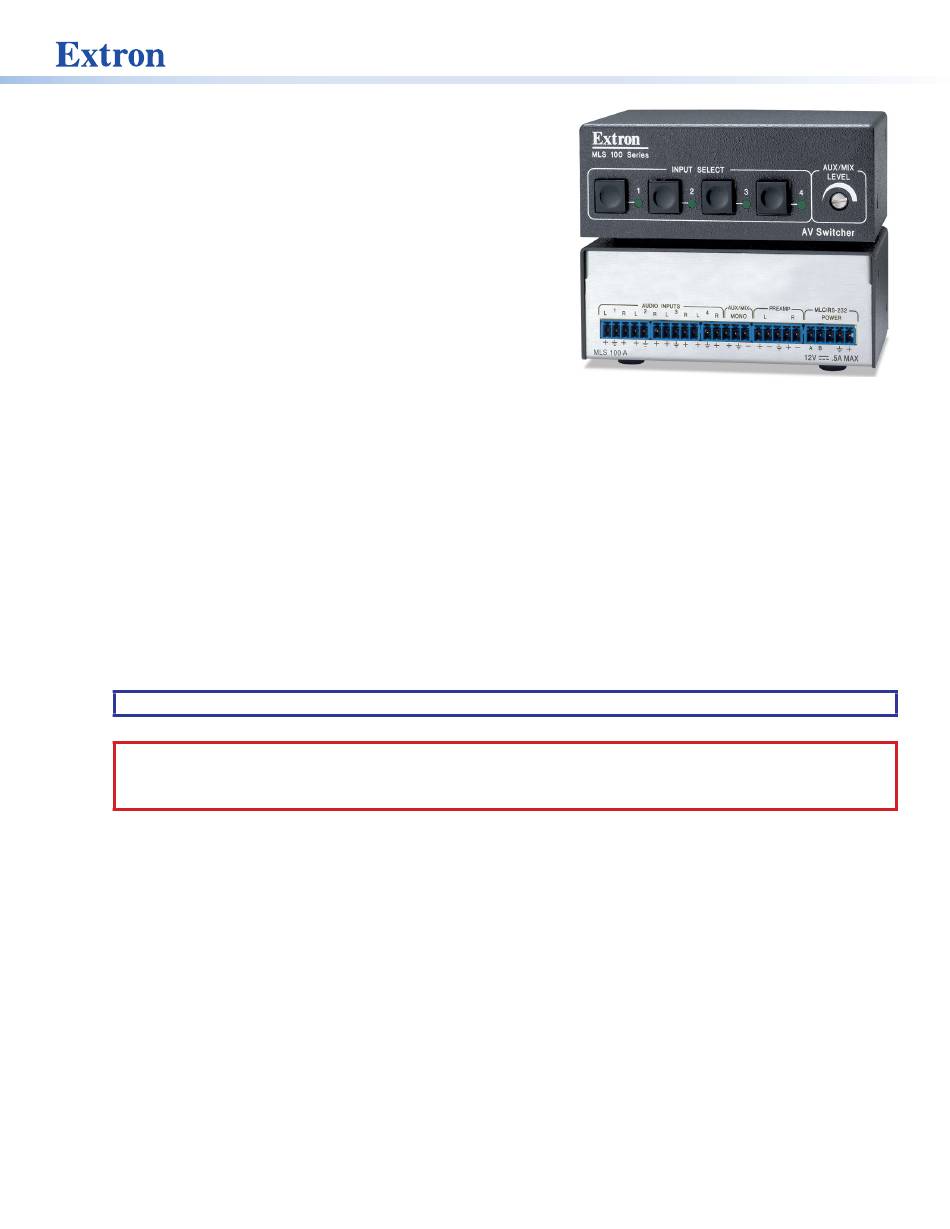

The Extron MLS 100 A Switcher is a compact, quarter rack width switcher.
The MLS 100 A features four selectable audio inputs, and one Aux/Mix
input that is always active and can be mixed with any and all of the four
selectable audio inputs.
Front panel buttons, an RS-232-based control system, or an Extron
MediaLink Controller (MLC) can be used for input selection.
™
Features
•
Furniture, rack, and projector mountability — MLS 100 A Switcher can be mounted under a desk or other furniture, or
mounted on a projector lift with optional brackets. Alternatively, they can be rack mounted on an optional rack shelf.
•
Stereo audio input and output — Unbalanced stereo audio inputs can be output as balanced or unbalanced stereo audio,
and the audio output level can be adjusted.
•
Mono auxiliary/mix audio input — The Aux/Mix port on each switcher lets you mix a mono, line level audio input signal with
that of one of the four selectable stereo audio inputs.
UL/Safety Requirements
The Underwriters Laboratories (UL) requirements listed below pertain to the safe installation and operation of the switcher.
This unit is not to be connected to a centralized DC power source or used beyond its rated voltage range.
1.
NOTE:
The Extron P/S 100 and other Extron power supplies may be used with the MLS.
Do not use the switcher near water.
2.
CAUTION:
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
ATTENTION :
Afin de réduire les risques d'incendie ou de choc électrique, protégez cet appareil de la pluie ou de
l'humidité.
Clean the switcher only with a dry cloth.
3.
Do not install the switcher near any heat source, such as a radiator, heat register, stove, or another apparatus (including
4.
amplifiers) that produces heat.
Unplug the switcher during lightning storms or when it will be unused for long periods.
5.
This unit must be installed in accordance with the National Electrical Code.
6.
Mounting the Switchers
The one rack unit high, quarter rack width switchers can be set on a table, mounted on a rack shelf, mounted under a desk or
tabletop, or mounted on a projector bracket. Go to
www.extron.com
to see optional mounting accessories.
