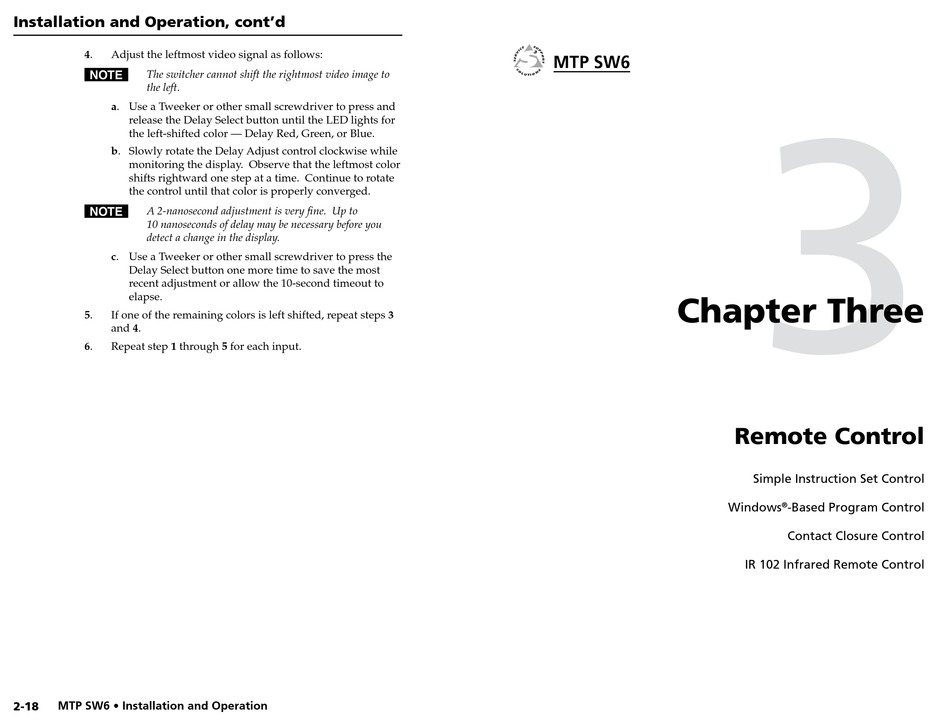

Installation and Operation, cont'd
4.
Adjust the leftmost video signal as follows:
The switcher cannot shift the rightmost video image to
N
the left.
a. Use a Tweeker or other small screwdriver to press and
release the Delay Select button until the LED lights for
the left-shifted color — Delay Red, Green, or Blue.
b. Slowly rotate the Delay Adjust control clockwise while
monitoring the display. Observe that the leftmost color
shifts rightward one step at a time. Continue to rotate
the control until that color is properly converged.
N
A 2-nanosecond adjustment is very fine. Up to
10 nanoseconds of delay may be necessary before you
detect a change in the display.
c. Use a Tweeker or other small screwdriver to press the
Delay Select button one more time to save the most
recent adjustment or allow the 10-second timeout to
elapse.
5.
If one of the remaining colors is left shifted, repeat steps 3
and 4.
6.
Repeat step 1 through 5 for each input.
MTP SW6 • Installation and Operation
2-18
MTP SW6
Chapter Three
Windows
3
Remote Control
Simple Instruction Set Control
®
-Based Program Control
Contact Closure Control
IR 102 Infrared Remote Control
